eBIKES / eRoad

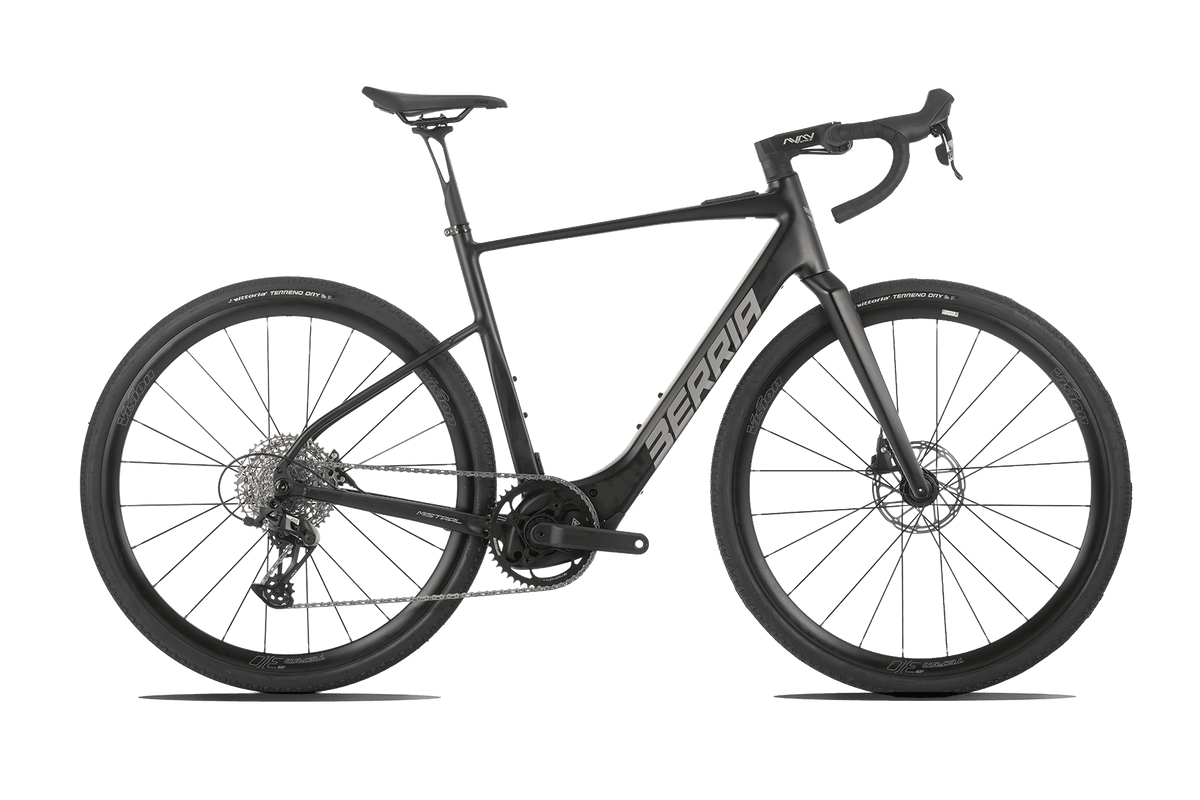

MISTRAL ESSENTIAL APEX (GRAVEL)

Ebikes Carretera Mistral Essential Apex Berriabikes
ALUMINUM 3BS
ICS2 FULL INTERNAL CABLE SYSTEM
O2HS OVERSIZED HEADSET
HP FORGED

eBIKES / eRoad

MISTRAL ESSENTIAL APEX (GRAVEL)

Component configuration

*The components that are shown may not correspond to the image of this specific model.

View full details

Specifications

Components

  • Frame

    Mistral HPR 2G, Gravel Type 1-2 Geometry BGC, Aluminum 3BS, HP Forging, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2" - 1-1/2", Flat Mount 140mm, 700x50c maximum tyre, Thru axle 12x142mm, UDH Standard

  • Fork

    Allroad EVO 3, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered , Flat Mount Standard max. 160mm disc , 700x50c maximum tyre, 51mm fork rake, 395mm axle to crown, Thru axle 12x100mm

  • Material

    Aluminum 3BS 6061 Hydroforming

  • Handlebar

    Avanforce 3 Gravel, Alloy 6061, Ø31,8, width: 400, 420, 440mm

  • Seatpost

    Avanforce Tibia, Softex Seat post, UD Carbon, 0 offset, Ø31,6 x 420mm

  • Saddle

    Selle Royal ORMA, Steel rails, length: 250mm, width: 150mm

  • Seat clamp

    Universal Derailleur Hanger

  • Wheels

    Vision Team 30, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock

  • Coverings

    Vittoria Terreno T30, 40-622, Gravel Sport, Rigid bead, black

  • Control Changes

    SRAM APEX D1, Shift-Brake System

  • Gear Changes

    SRAM APEX XPLR D1, 12s

  • Cranks

    FSA CK-220/IS Avinox, Alloy Cranks, 170mm

  • Chain

    SRAM APEX D1, 126 Links

  • Cassette

    CS XPLR XG1251, 10-44T

  • Brake

    SRAM APEX D1, Hydraulic Shift-Brake System

  • Motor

    Avinox Engine M2: 1100W, 125Nm (Boost mode)

  • Battery

    Avinox Fixed Battery 600 Wh, 36V

  • Display

    Avinox DPC100 Flat, 2" Color screen, BLE, Apple Find My, Type C

  • Charger

    Avinox Charger, 230V, 4A, EU Plug Supplied

  • *We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.

Geometry

frames/27.01.31/GEOMETRIA 26 - MISTRAL HPR.png
XS 150-160 cm
S 160-170 cm
M 170-180 cm
L 180-190 cm
XL >190 cm

1

Seat tube

460 mm

2

Horizontal tube

522 mm

3

Front angle

71°

4

Seat tube angle

76.5°

5

Wheelbase

1042 mm

6

Sheath

440 mm

7

Front tube

125 mm

8

Bottom bracket drop

75 mm

9

Trail

68 mm

10

Fork feed

51 mm

11

Fork length

405 mm

12

Reach

388 mm

13

Stack

560 mm

14

Maximum seatpost insertion

135 mm

1

Seat tube

485 mm

2

Horizontal tube

534 mm

3

Front angle

71°

4

Seat tube angle

75.5°

5

Wheelbase

1045 mm

6

Sheath

440 mm

7

Front tube

125 mm

8

Bottom bracket drop

75 mm

9

Trail

68 mm

10

Fork feed

51 mm

11

Fork length

405 mm

12

Reach

388 mm

13

Stack

560 mm

14

Maximum seatpost insertion

150 mm

1

Seat tube

510 mm

2

Horizontal tube

558 mm

3

Front angle

71°

4

Seat tube angle

74°

5

Wheelbase

1055 mm

6

Sheath

440 mm

7

Front tube

150 mm

8

Bottom bracket drop

72 mm

9

Trail

68 mm

10

Fork feed

51 mm

11

Fork length

405 mm

12

Reach

391 mm

13

Stack

581 mm

14

Maximum seatpost insertion

170 mm

1

Seat tube

535 mm

2

Horizontal tube

572 mm

3

Front angle

71°

4

Seat tube angle

74°

5

Wheelbase

1070 mm

6

Sheath

440 mm

7

Front tube

170 mm

8

Bottom bracket drop

72 mm

9

Trail

68 mm

10

Fork feed

51 mm

11

Fork length

405 mm

12

Reach

400 mm

13

Stack

600 mm

14

Maximum seatpost insertion

190 mm

1

Seat tube

560 mm

2

Horizontal tube

587 mm

3

Front angle

71°

4

Seat tube angle

74°

5

Wheelbase

1086 mm

6

Sheath

440 mm

7

Front tube

190 mm

8

Bottom bracket drop

72 mm

9

Trail

68 mm

10

Fork feed

51 mm

11

Fork length

405 mm

12

Reach

409 mm

13

Stack

619 mm

14

Maximum seatpost insertion

200 mm

Technologies

technologies/3ecafc71-5b06-45c9-87b2-40549fe3019b/ALUMINIUM_6dfda451-b332-4d9c-ab49-1c66a44cb78e.png

ALUMINUM 3BS

The 3BS technique is based on the hydroforming process. The tubes are pressed and then pressurized to achieve variable wall thicknesses along the span. The technology ensures a good stiffness to strength ratio without compromising the weight of the final product.

berria-production/technologies/ics2/ics2.svg

ICS2 FULL INTERNAL CABLE SYSTEM

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg

O2HS OVERSIZED HEADSET

The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.

technologies/e67373da-64c1-4f77-9d21-94dd4e6ac400/HP FORGED-1.png

HP FORGED

The HPF (High Pressure Forging) technology is able to mold the aluminum alloy into complex shapes achieving great mechanical performance. Berria uses this key tech in bicycle parts that need strength and resiliance such as motor mounts and dropouts.

Size: XS / Color: BLACK-Collection

Precio Est.

3.499,00 €
