eBIKES / Colección 2027

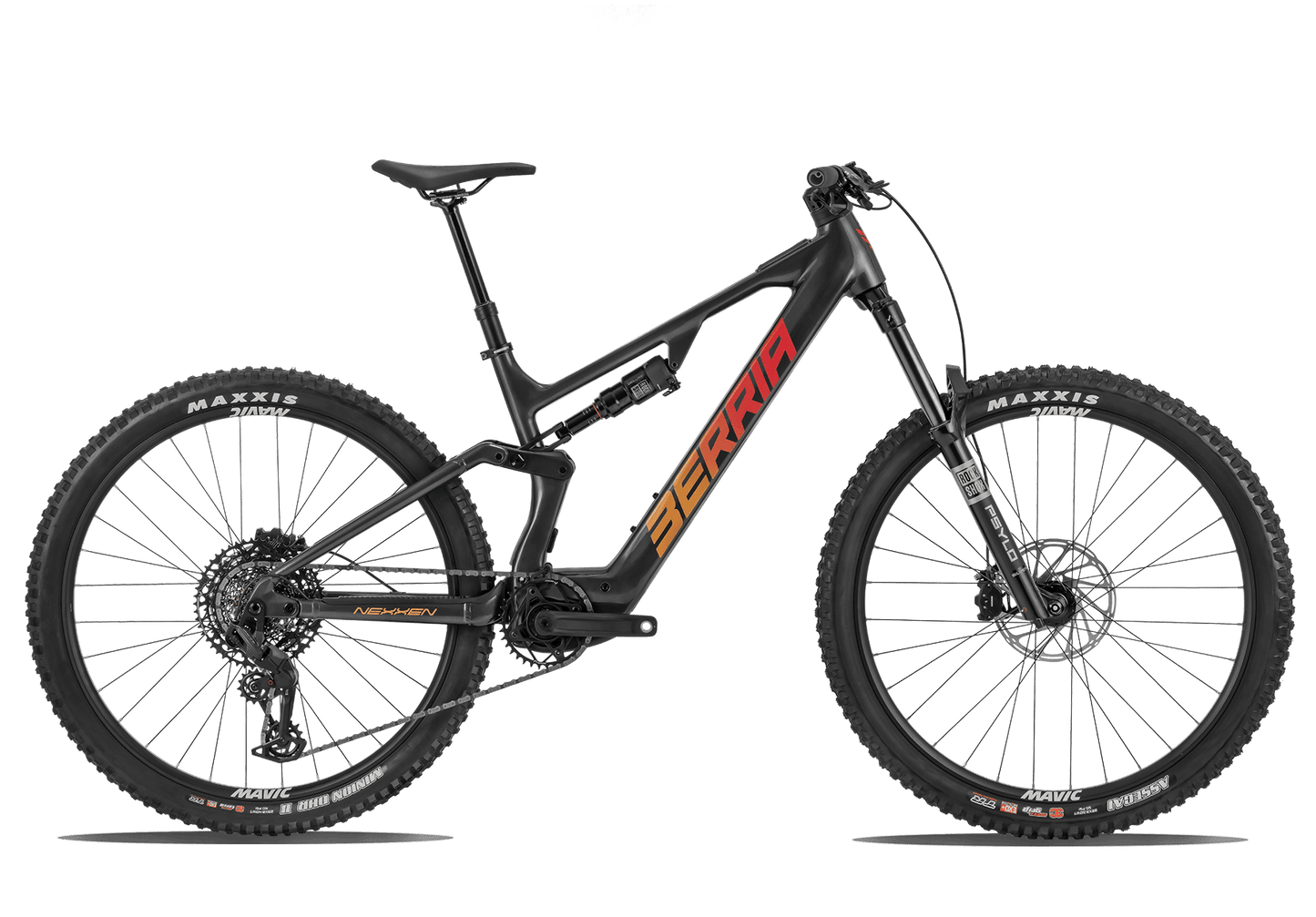

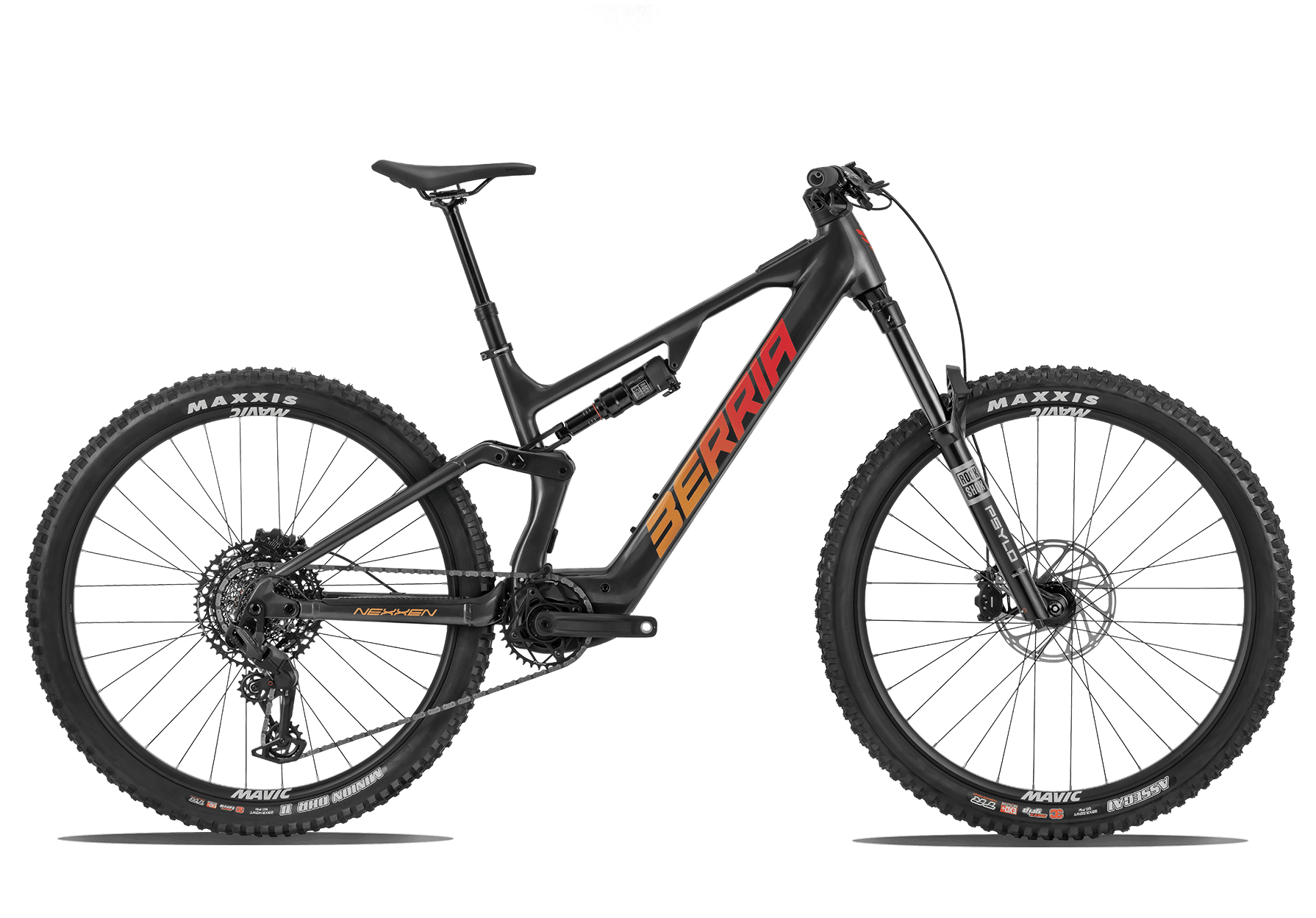

NEXXEN ESSENTIAL E70 PSYLO

NEXXEN ESSENTIAL E70 PSYLO Berria Bikes
Y-LINK SUSPENSION SYSTEM
ALUMINUM 3BS
ICS2 FULL INTERNAL CABLE SYSTEM
O2HS OVERSIZED HEADSET
HP FORGED

eBIKES / Colección 2027

NEXXEN ESSENTIAL E70 PSYLO

Component configuration

*The components that are shown may not correspond to the image of this specific model.

View full details

Specifications

Components

  • Frame

    Nexxen, Integrated Battery, Allmountain Geometry, Y-LINK suspension system with 150mm, Aluminum 3BS, HP Forging, Full internal cable system ICS2, MTB Acros Headset ZS56 with Blocklock 120º, Post mount 180mm, maximum tyre 29x2.40", Thru axle Boost 12x148mm, UDH Standard

  • Fork

    RockShox Psylo Silver RC, Damper Motion Control, 15x110mm Maxle Stealth, Tapered steerer, Spring Solo Air, Rake 44mm, 35 mm tapered wall steel, Gloss Black, 160mm travel

  • Material

    Aluminum 3BS 6061 Hydroforming

  • Handlebar

    Avanforce AF2 MTB, Forged Aluminum 6061, Ø31,8mm, width: 780mm, Backsweep: 6°, Upsweep: 5°, Rise: 20mm

  • Seatpost

    TRANZX JD-YSPJL Aluminum 7075-T6, 0 offset, Ø31,6, 150mm travel

  • Saddle

    SRX, Steel rails, length: 260mm, width: 143mm

  • Seat clamp

    Universal Derailleur Hanger

  • Shock absorber

    RockShox Deluxe Select+, 210x55, Damper RT, DebonAir Linear, 3 token, 150mm travel

  • Wheels

    Mavic E-Access XR30 29", 15x110, Boost 12x148mm, TLR, internal width 30mm

  • Control Changes

    SRAM Eagle 70, 1 Click shifter, 12s

  • Gear Changes

    SRAM Eagle 70, T-TYPE, 12s

  • Cranks

    FSA CK-320/IS Avinox, Alloy Cranks, 160mm

  • Chain

    SRAM EAGLE 70 T-TYPE, 120 Links

  • Cassette

    CS XS1270 Eagle, T-TYPE, 10-52T

  • Brake

    SRAM DB8 Black, 4 Piston

  • Motor

    Avinox Engine M2: 1100W, 125Nm (Boost mode)

  • Battery

    Avinox Fixed Battery 800 Wh, 36V

  • Display

    Avinox DPC100 Flat, 2" Color screen, BLE, Apple Find My, Type C

  • Charger

    Avinox Fast Charger, 230V, 12A, EU Plug Supplied

  • *We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.

Geometry

berria-production/frames/27.01.27/GEOMETRIA 27 - NEXXEN.png
S 155-170 cm
M 170-185 cm
L 180-195 cm

1

Seat tube

410 mm

2

Horizontal tube

579 mm

3

Front angle

64.5°

4

Seat tube angle

79°

5

Wheelbase

1228 mm

6

Sheath

456 mm

7

Front tube

110 mm

8

Bottom bracket drop

28 mm

9

Trail

131.5 mm

10

Fork feed

44 mm

11

Fork length

571 mm

12

Reach

457 mm

13

Stack

626 mm

14

Maximum seatpost insertion

200 mm

1

Seat tube

440 mm

2

Horizontal tube

607 mm

3

Front angle

64.5°

4

Seat tube angle

77°

5

Wheelbase

1258 mm

6

Sheath

456 mm

7

Front tube

120 mm

8

Bottom bracket drop

28 mm

9

Trail

131.5 mm

10

Fork feed

44 mm

11

Fork length

571 mm

12

Reach

460 mm

13

Stack

635 mm

14

Maximum seatpost insertion

230 mm

1

Seat tube

470 mm

2

Horizontal tube

637 mm

3

Front angle

64.5°

4

Seat tube angle

77°

5

Wheelbase

1287 mm

6

Sheath

456 mm

7

Front tube

130 mm

8

Bottom bracket drop

28 mm

9

Trail

131.5 mm

10

Fork feed

44 mm

11

Fork length

571 mm

12

Reach

485 mm

13

Stack

644 mm

14

Maximum seatpost insertion

260 mm

Technologies

berria-production/technologies/6de25a18-a36b-4a6c-ac2f-855547899893/Y-LINK_895f69d5-fd38-4caf-bd40-2a33b5ef59c8.svg

Y-LINK SUSPENSION SYSTEM

Y-LINK, the custom suspension system for Stratos, develops 160mm of travel and has unsurpassed traction capacity, as well as great handling thanks to the 27.5” tire on the rear wheel. The Y-LINK system damper adjustment is specific to STRATOS kinematics; Anticipating a sensitive, progressive and precise system, it achieves an incredible absorption capacity against large and small impacts together with an exceptional harmony in its operation, transmitting driving confidence and total control when braking. At the same time, the Y-LINK suspension has been developed to ride on all types of terrain and thanks to its neutral Anti-squat, it will allow you to face flat or uphill sections with maximum comfort and dynamism.

technologies/3ecafc71-5b06-45c9-87b2-40549fe3019b/ALUMINIUM_6dfda451-b332-4d9c-ab49-1c66a44cb78e.png

ALUMINUM 3BS

The 3BS technique is based on the hydroforming process. The tubes are pressed and then pressurized to achieve variable wall thicknesses along the span. The technology ensures a good stiffness to strength ratio without compromising the weight of the final product.

berria-production/technologies/ics2/ics2.svg

ICS2 FULL INTERNAL CABLE SYSTEM

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg

O2HS OVERSIZED HEADSET

The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.

technologies/e67373da-64c1-4f77-9d21-94dd4e6ac400/HP FORGED-1.png

HP FORGED

The HPF (High Pressure Forging) technology is able to mold the aluminum alloy into complex shapes achieving great mechanical performance. Berria uses this key tech in bicycle parts that need strength and resiliance such as motor mounts and dropouts.

Size: S / Color: DARK GREY-Collection

Precio Est.

4.499,00€
