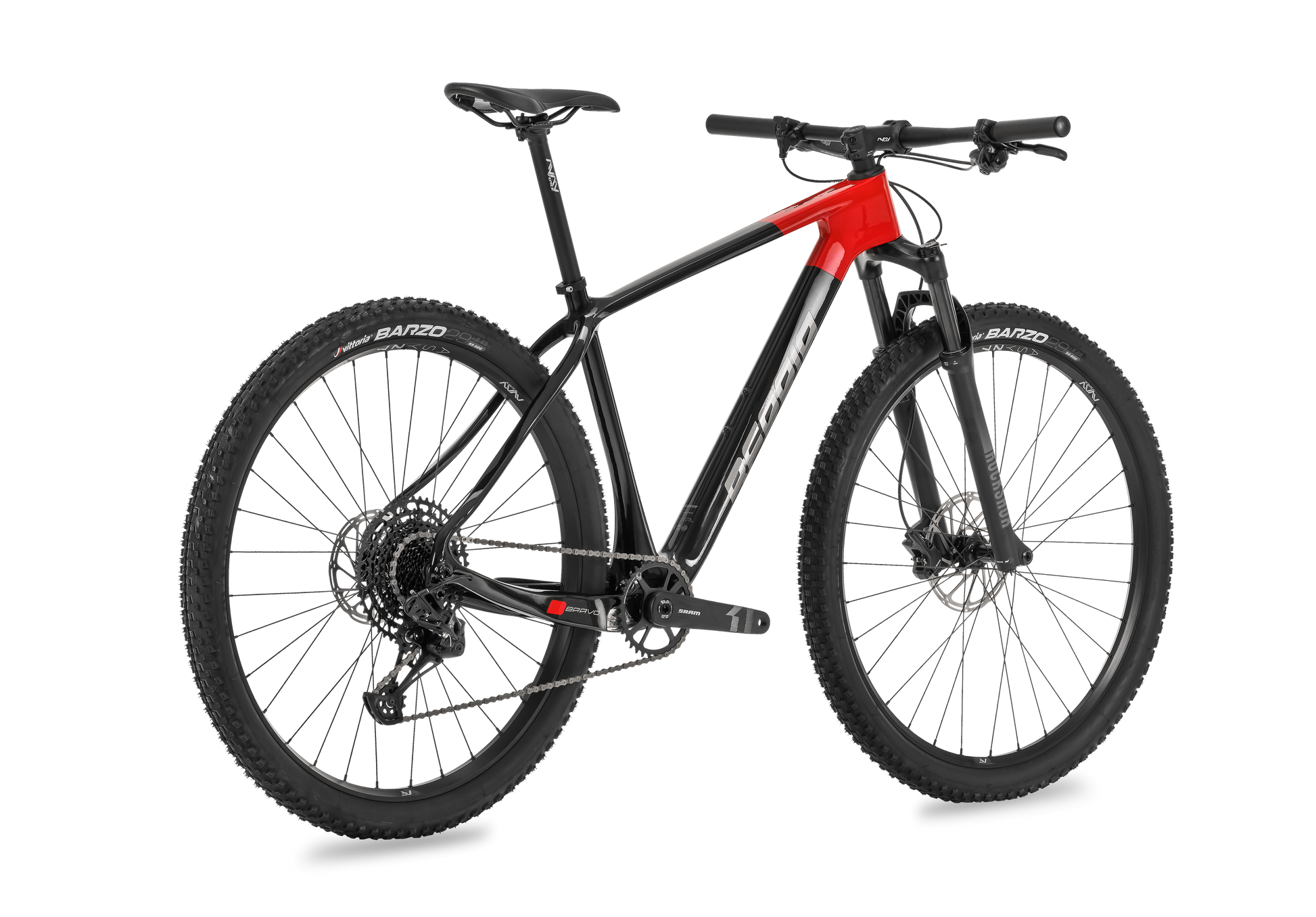

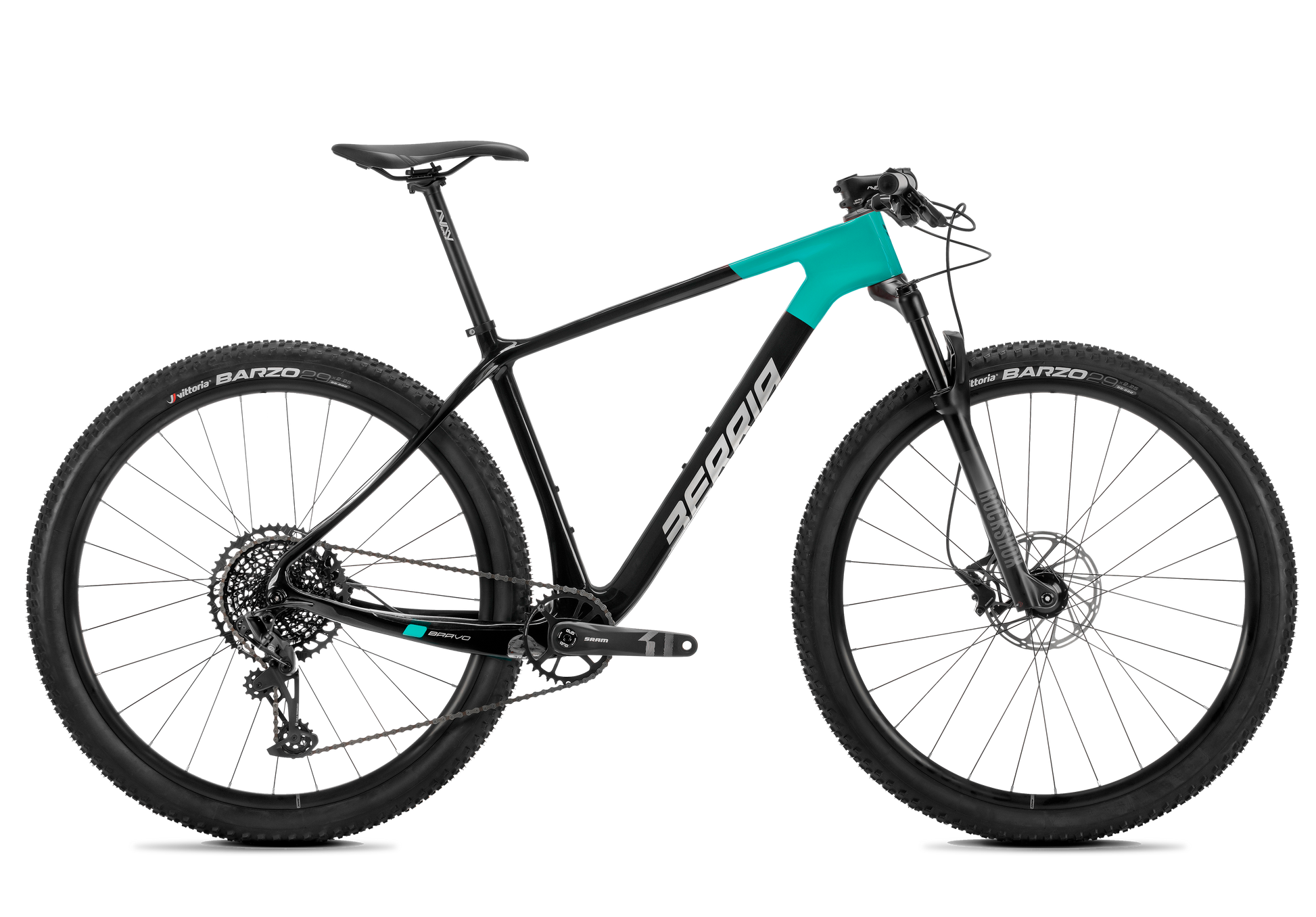

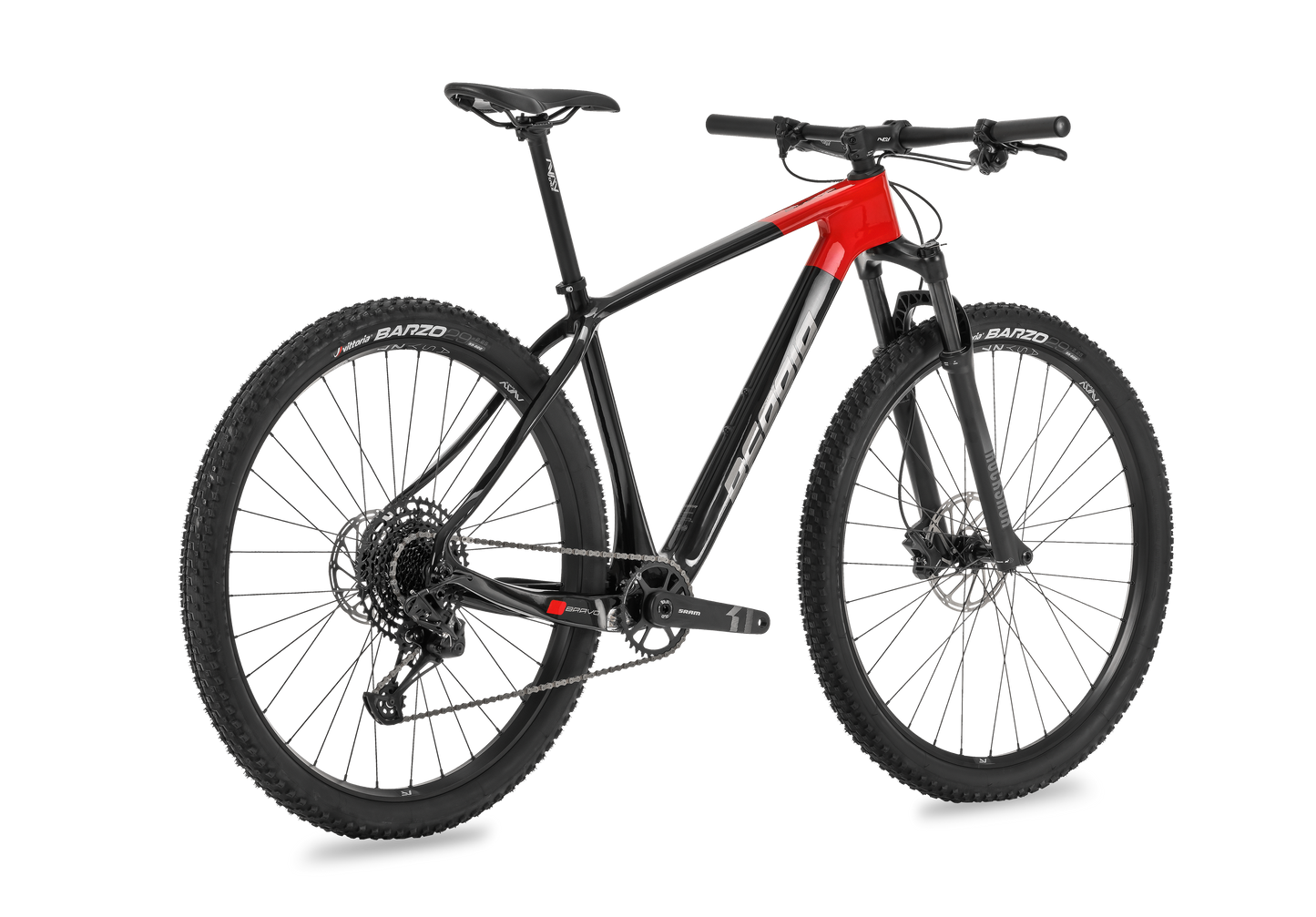

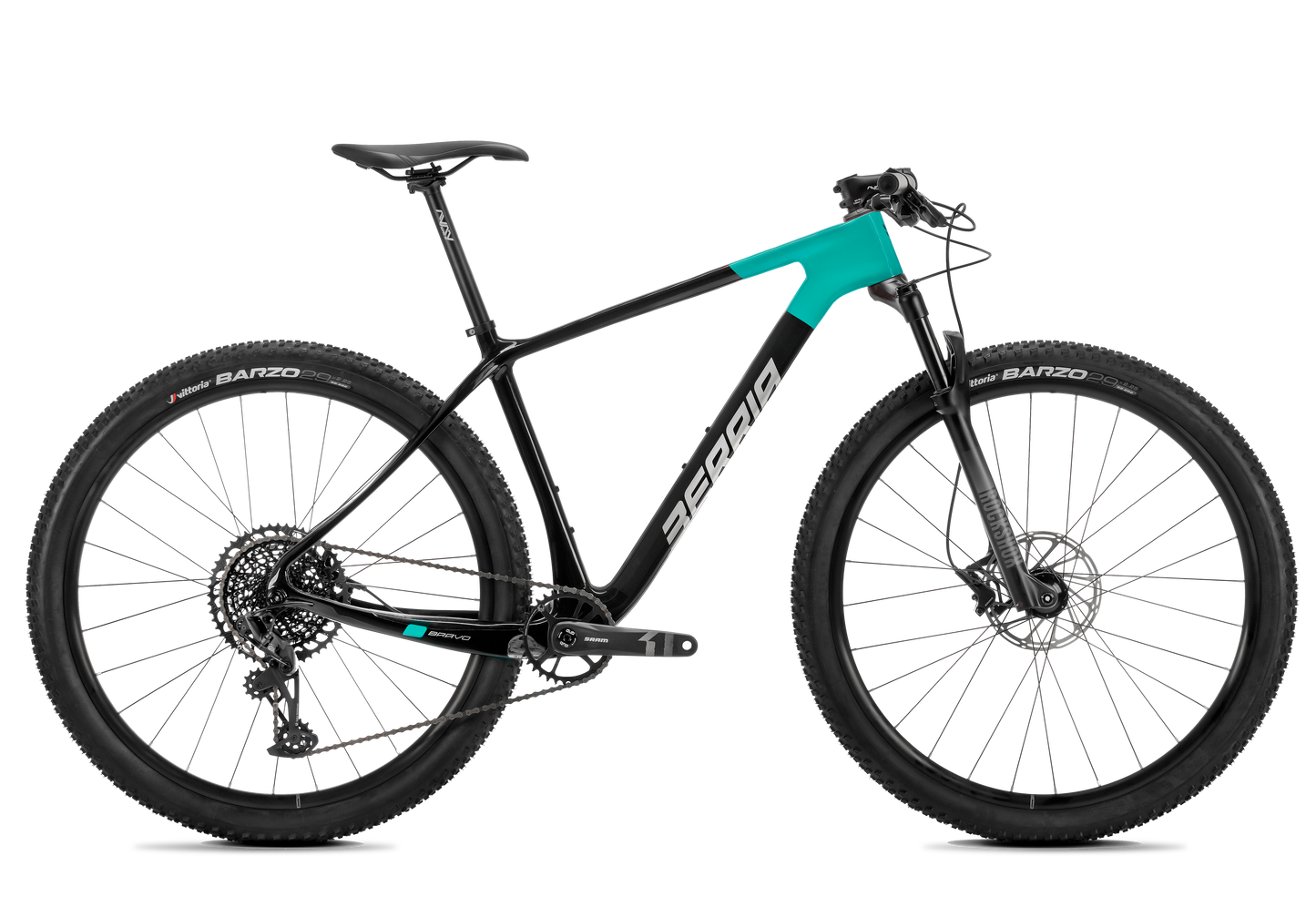

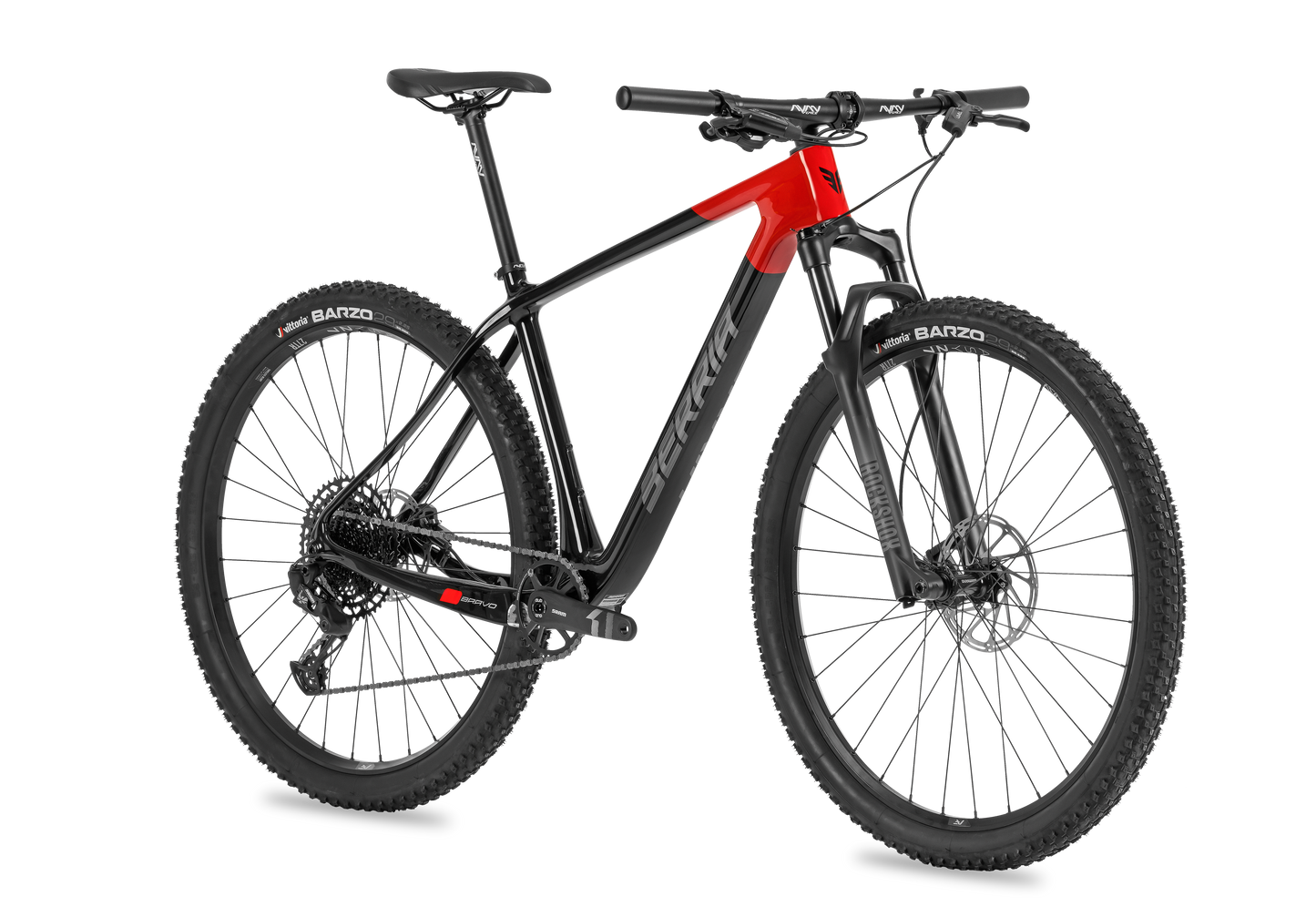

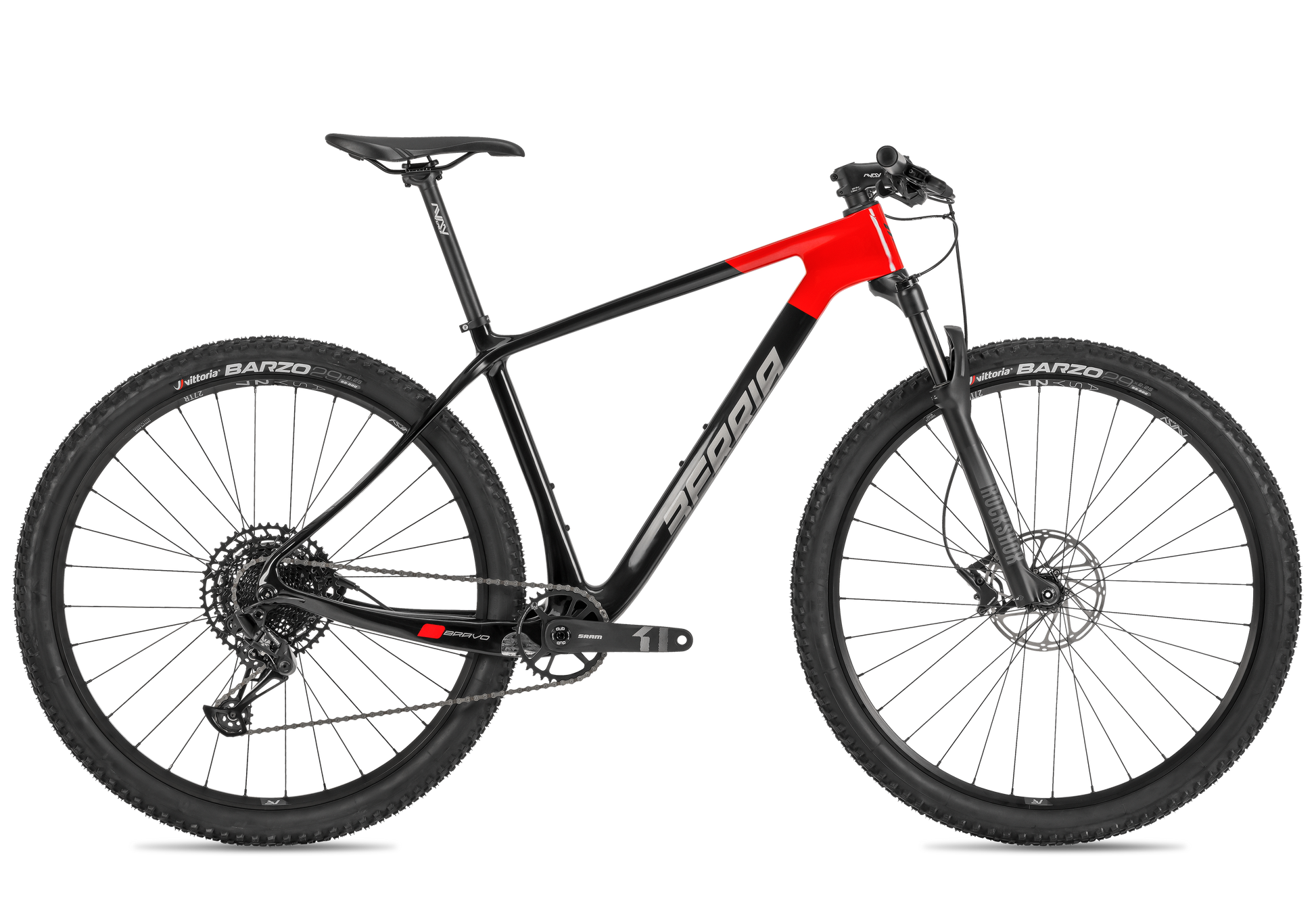

BRAVO COMP SX

BRAVO COMP SX

Montagna

products/09d64bfc-5f94-4cd1-b446-687726b1d5c5/Bravo Comp SX CC1.png
products/8adf6e92-8381-4a8c-bbe1-98b886357a5a/Bravo Comp SX-03 CC1.png
products/c628084c-db37-4e85-a217-c1241a0bb51f/BRAVO COMP SX .png
Active Stay
HMR2X
ICS2 FULL INTERNAL CABLE SYSTEM
EPS
TRIPLE MONOCOQUE

BRAVO COMP SX

BRAVO COMP SX

Montagna

Colore

Scegliete il vostro colore: BLACK-RED RACING-Collection

Color Collection

TAGLIA

Scegliete la vostra taglia

*I componenti mostrati potrebbero non corrispondere all'immagine di questo modello specifico.

Visualizza dettagli completi

Specifiche tecniche

Componenti

  • Forcella

    RockShox Judy TK, Damper Type Turnkey, Remote Lockout 2 Position, 15x110mm Maxle Stealth, Tapered steerer, Rake 51mm, 30mm straight wall aluminium, Diffusion Black, 100mm travel

  • Materiale

    Full carbon fiber HMR2X

  • Manubrio

    Avanforce AF3, Aluminum 6061, Ø31,8mm, width: 740mm

  • Reggisella

    Avanforce AF3, Aluminum 6061, 0 offset, Ø27,2, length: 350, 400mm

  • Sella

    Selle Royal 2058HRN, Steel rails, length: 285mm, width: 145mm

  • Forcellino cambio

    Universal Derailleur Hanger

  • Ruote

    Avanforce TRYP30 EVO 29", 15x110, Boost 12x148mm, TLR, Center Lock, internal width 30mm

  • Comando del cambio

    SRAM SX Eagle Trigger 12s, X-actuation

  • Cambio

    SRAM SX Eagle, Aluminum cage, 12s

  • Pedivelle

    SRAM X1 1000, DUB Eagle, 34T 170-175mm

  • Catena

    SRAM SX Eagle A1, 118 Links

  • Cassetta

    CS PG1210 Eagle, 11-50T

  • Movimento centrale

    BB92 DUB PF

  • Freno

    SRAM Level Black, 2 Piston

  • *Ci riserviamo il diritto di modificare senza preavviso le informazioni e i componenti dei prodotti che appaiono su questo sito web, specifiche, modelli, colori e materiali.

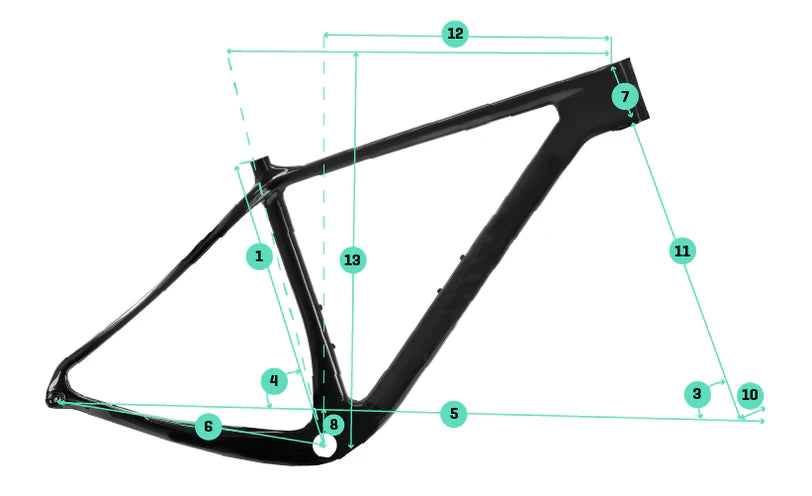

Geometria

berria-production/frames/26.01.19/4._BRAVO_ELITE.png
XS 150-165 cm
S 160-175 cm
M 175-185 cm
L 180-198 cm

1

Tubo sella

380 mm

2

Tubo orizzontale

558 mm

3

Angolo anteriore

68.6°

4

Angolo del tubo sella

75°

5

Passo

1080.9 mm

6

Baccello

427 mm

7

Tubo anteriore

93 mm

8

Forcellino del movimento centrale

66 mm

9

Trail

97.7 mm

10

Avanzamento della forcella

44 mm

11

Lunghezza della forcella

516 mm

12

Reach

602.4 mm

13

Stack

602.4 mm

1

Tubo sella

425 mm

2

Tubo orizzontale

581 mm

3

Angolo anteriore

69.1°

4

Angolo del tubo sella

74.5°

5

Passo

1094 mm

6

Baccello

427 mm

7

Tubo anteriore

95 mm

8

Forcellino del movimento centrale

64 mm

9

Trail

94.2 mm

10

Avanzamento della forcella

44 mm

11

Lunghezza della forcella

516 mm

12

Reach

604.7 mm

13

Stack

604.7 mm

1

Tubo sella

470 mm

2

Tubo orizzontale

615 mm

3

Angolo anteriore

69.1°

4

Angolo del tubo sella

74°

5

Passo

1123.2 mm

6

Baccello

427 mm

7

Tubo anteriore

100 mm

8

Forcellino del movimento centrale

64 mm

9

Trail

94.2 mm

10

Avanzamento della forcella

44 mm

11

Lunghezza della forcella

516 mm

12

Reach

609.2 mm

13

Stack

609.2 mm

1

Tubo sella

520 mm

2

Tubo orizzontale

645 mm

3

Angolo anteriore

69.6°

4

Angolo del tubo sella

73.5°

5

Passo

1145.3 mm

6

Baccello

427 mm

7

Tubo anteriore

105 mm

8

Forcellino del movimento centrale

64 mm

9

Trail

90.7 mm

10

Avanzamento della forcella

44 mm

11

Lunghezza della forcella

516 mm

12

Reach

616.2 mm

13

Stack

616.2 mm

Tecnologie

berria-production/technologies/76e34a9e-0bb6-494d-b377-c68fdda7de0a/ACTIVE_STAY_45ff7522-ad77-4a68-812a-7262f923ac0e.png
berria-production/technologies/76e34a9e-0bb6-494d-b377-c68fdda7de0a/ACTIVE_STAY_45ff7522-ad77-4a68-812a-7262f923ac0e.png

Our Active Stay Technology increases vertical flexion of the seat stays without compromising the necessary rigidity for a responsive ride.The result is maximised traction and ride compliance over the toughest terrain, with direct transfer of power translating into more speed.
berria-production/technologies/b355c8af-e9fb-4b13-b7b7-9c382069f609/HMR2X-1.png
berria-production/technologies/b355c8af-e9fb-4b13-b7b7-9c382069f609/HMR2X-1.png

HMR2X carbon uses a specific blend of high modulus Toray T800 and ultra high-modulus Toray M55J fibres. Together with carefully chosen resin, this carbon mix can yield incredibly high structural strength without adding excess weight to the overall system.
berria-production/technologies/ics2/ics2.svg
berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.
berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg
berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.
berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg
berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg

The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.

TAGLIA: XS / Colore: BLACK-RED RACING-Collection

1.599,00€
