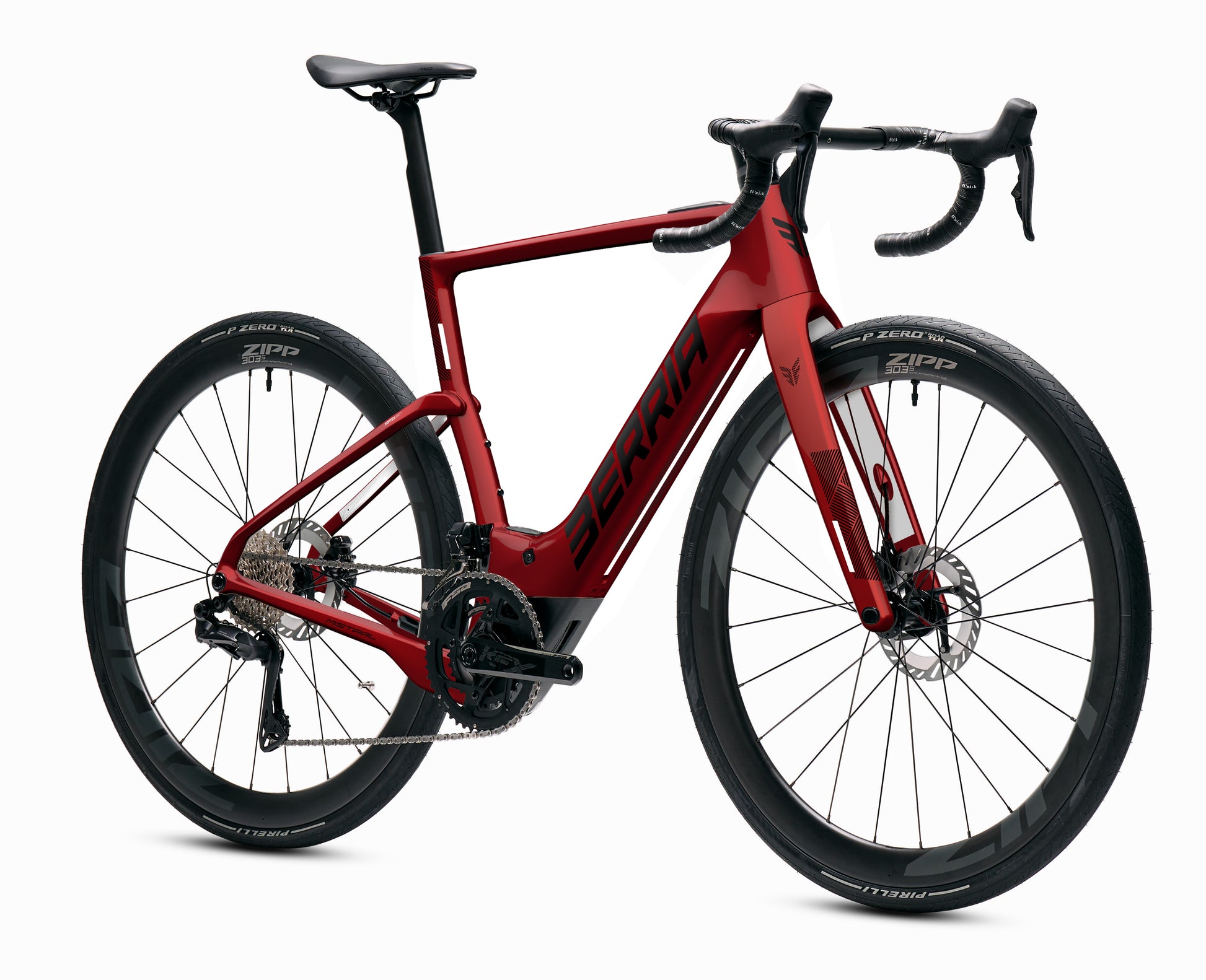

MISTRAL PRO+ 105 Di2

MISTRAL PRO+ 105 Di2

eBIKES / Strada

temp/PT26_31_05_XX_mistral pro 105 Di2.jpg
berria-production/products/49e00e33-a069-4e57-bab0-9f597b06c8cc/MISTRAL S1.jpg
berria-production/products/49e00e33-a069-4e57-bab0-9f597b06c8cc/MISTRAL_PRO_ ULTEGRA_DI-2_C1_DEL.png

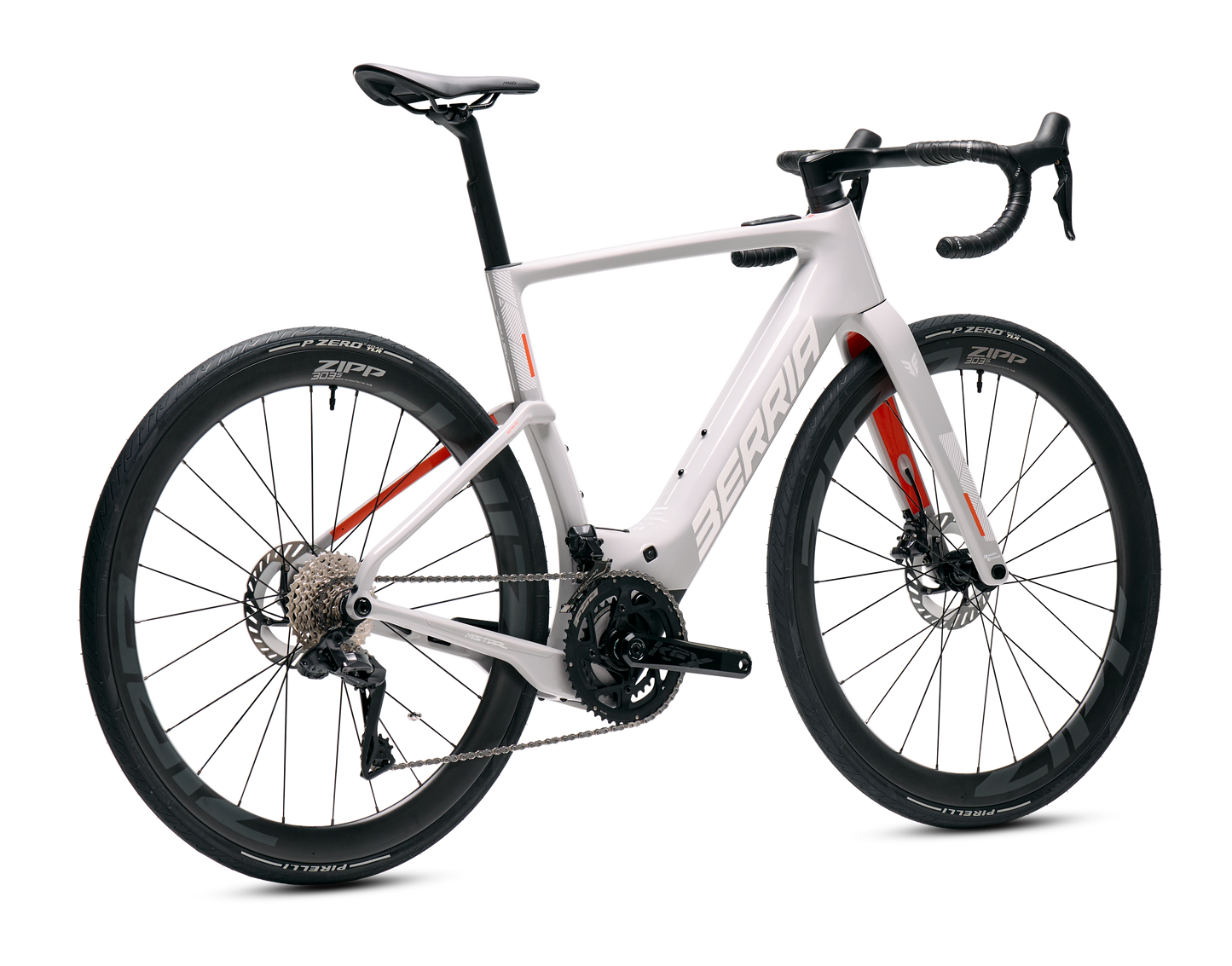

berria-production/products/49e00e33-a069-4e57-bab0-9f597b06c8cc/MISTRAL_PRO_ ULTEGRA_DI-2_C1_TRAS.png
berria-production/products/88d757a9-5454-40c6-a668-1d2a3fa7565c/MISTRAL S2.jpg
berria-production/products/88d757a9-5454-40c6-a668-1d2a3fa7565c/S2(1).jpg
berria-production/products/88d757a9-5454-40c6-a668-1d2a3fa7565c/S2(2).jpg
temp/PT26_31_05_XX_Mistral Pro+ 105 Di2.jpg
temp/PT26_31_05_XX_mistral pro 105 Di2-02.jpg
temp/PT26_31_05_XX_mistral pro 105 Di2-03.jpg
ICS2 FULL INTERNAL CABLE SYSTEM
SOFTEX
DYNAMIC+
O2HS OVERSIZED HEADSET
EPS
MACH-R Nanotech
HM2X
TRIPLE MONOCOQUE

MISTRAL PRO+ 105 Di2

MISTRAL PRO+ 105 Di2

eBIKES / Strada

Colore

Scegliete il vostro colore: CUSTOMIZE

TAGLIA

Scegliete la vostra taglia

*I componenti mostrati potrebbero non corrispondere all'immagine di questo modello specifico.

Visualizza dettagli completi

Specifiche tecniche

Componenti

  • Forcella

    Allroad EVO 2, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered , Flat Mount Standard max. 160mm disc , 700x50c maximum tyre, Flip-chip adust 45-51mm fork rake, 395mm axle to crown, Thru axle 12x100mm

  • Materiale

    Full carbon fiber HM2X

  • Manubrio

    Avanforce Airone, Integrated Road Carbon Handlebar, Full internal cable system ICS2, sizes: 380x90, 400x100, 400x110, 420x110, 420x120

  • Reggisella

    Belador 6 SP, UD Carbon, Offset: 0, 20mm offset, ISP technology

  • Sella

    Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width: 140 mm

  • Forcellino cambio

    Universal Derailleur Hanger

  • Ruote

    Vision Team 30, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock

  • Comando del cambio

    SHIMANO 105 Di2 DISC BRAKE, ST-R7170 DUAL CONTROL

  • Cambio

    SHIMANO 105 Di2, RD-R7150, 12s

  • Deviatore

    SHIMANO 105 Di2, FD-R7150, 12s

  • Pedivelle

    FSA CK-220/IS/SX Bosch, Alloy Cranks, 170mm

  • Catena

    CN-M6100, 118 Links

  • Cassetta

    CS-R7100, 11-34T

  • Freno

    SHIMANO 105 BR-R7120, Hydraulic Disc

  • Motore

    BOSCH Performance Line SX Smart System, 600W, 55Nm

  • Batteria

    BOSCH Compact Tube 400Wh Vertical Mount Assembly, Integrated and Slidable

  • Display

    BOSCH System Controller, Led Colour, App E-Bike Flow

  • Caricabatterie

    Bosch Charger 230V 4A, EU/UK/US Plug Supplied

  • *Ci riserviamo il diritto di modificare senza preavviso le informazioni e i componenti dei prodotti che appaiono su questo sito web, specifiche, modelli, colori e materiali.

Geometria

berria-production/frames/26.01.12/GEOMETRIA 26 - MISTRAL CARBON-1.png
XS 155-165 cm
S 165-175 cm
M 175-185 cm
L 185-192 cm
XL >192 cm

1

Tubo sella

460 mm

2

Tubo orizzontale

525 mm

3

Angolo anteriore

70°

4

Angolo del tubo sella

75.1°

5

Passo

1022/1028 mm

6

Baccello

425 mm

7

Tubo anteriore

108 mm

8

Forcellino del movimento centrale

75 mm

9

Trail

83/77 mm

10

Avanzamento della forcella

45/51 mm

11

Lunghezza della forcella

395 mm

12

Reach

374 mm

13

Stack

535 mm

1

Tubo sella

484 mm

2

Tubo orizzontale

540 mm

3

Angolo anteriore

70.5°

4

Angolo del tubo sella

74.8°

5

Passo

1032/1038 mm

6

Baccello

425 mm

7

Tubo anteriore

123 mm

8

Forcellino del movimento centrale

73 mm

9

Trail

78/72 mm

10

Avanzamento della forcella

45/51 mm

11

Lunghezza della forcella

395 mm

12

Reach

388 mm

13

Stack

550 mm

1

Tubo sella

508 mm

2

Tubo orizzontale

555 mm

3

Angolo anteriore

71°

4

Angolo del tubo sella

74.5°

5

Passo

1040/1046 mm

6

Baccello

425 mm

7

Tubo anteriore

140 mm

8

Forcellino del movimento centrale

73 mm

9

Trail

75/69 mm

10

Avanzamento della forcella

45/51 mm

11

Lunghezza della forcella

395 mm

12

Reach

398 mm

13

Stack

565 mm

1

Tubo sella

532 mm

2

Tubo orizzontale

575 mm

3

Angolo anteriore

71.5°

4

Angolo del tubo sella

74.2°

5

Passo

1053/1059 mm

6

Baccello

425 mm

7

Tubo anteriore

156 mm

8

Forcellino del movimento centrale

73 mm

9

Trail

72/66 mm

10

Avanzamento della forcella

45/51 mm

11

Lunghezza della forcella

395 mm

12

Reach

407 mm

13

Stack

587 mm

1

Tubo sella

556 mm

2

Tubo orizzontale

595 mm

3

Angolo anteriore

72°

4

Angolo del tubo sella

73.9°

5

Passo

1065/1071 mm

6

Baccello

425 mm

7

Tubo anteriore

174 mm

8

Forcellino del movimento centrale

73 mm

9

Trail

68/62 mm

10

Avanzamento della forcella

45/51 mm

11

Lunghezza della forcella

395 mm

12

Reach

418 mm

13

Stack

605 mm

Tecnologie

berria-production/technologies/ics2/ics2.svg
berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.
berria-production/technologies/7a3bf22c-f97a-4a3a-84ef-29ca92aee3b9/SOFTEX-1.png
berria-production/technologies/7a3bf22c-f97a-4a3a-84ef-29ca92aee3b9/SOFTEX-1.png

The SOFTEX suspension system opens a new category between a Hardtail and a Full suspension bike. The first component of the system is TIBIA, a compliant carbon seat post that absorbs the small bumps across the road acting as a damper. On the other hand we have the Active Seat Stay (ASS), it is a mechanism based on sectioned shaped Seat Stays and Chain Stays with integrated bearings that together with an engineered supple Lay up helps the rider to go through rough terrain faster. All the elements mixed together will extract a total vertical travel of 28mm giving an extended comfort and higher absorption compared to a regular Hardtail bike.

technologies/af0c2029-6a8c-49a3-bf2c-e056274139ff/DINAMIC+-1.png
technologies/af0c2029-6a8c-49a3-bf2c-e056274139ff/DINAMIC+-1.png

SWITCHER, the engineering concept that brings two different bicycle behaviours in one frame. RACING+: . Ideal for long stages, fast fire roads and racing (51mm offset). DYNAMIC: Ideal for the off-road adventures, stable and direct (45mm offset).
berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg
berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg

The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.
berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg
berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.
berria-production/technologies/3fc5e540-4886-4ecb-8acd-1afd0eb1898d/MACH-R_Nanotech_d9b9a3cf-c9d7-47f5-8f3e-1bcf23d98b25.svg
berria-production/technologies/3fc5e540-4886-4ecb-8acd-1afd0eb1898d/MACH-R_Nanotech_d9b9a3cf-c9d7-47f5-8f3e-1bcf23d98b25.svg

To deal with the additional forces and high-frequency vibrations that a motor and battery system exert on a carbon frameset, we use MACH-R Nanotech resin. This special resin bonds the Toray fibres of HM2X carbon together, providing the superior mechanical strength required for an electric motorised frame, improving frame strength, resilience and long-term lifespan.
berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg
berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg

HM2X carbon is engineered using T700 and T800 Toray intermediate-modulus fibres. Used strategically across key frame areas, this dual blend of carbon material is laid up to produce an optimal combination of stiffness while also prioritising comfort.
berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg
berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg

The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.

TAGLIA: XS / Colore: CUSTOMIZE

6.749,00€
