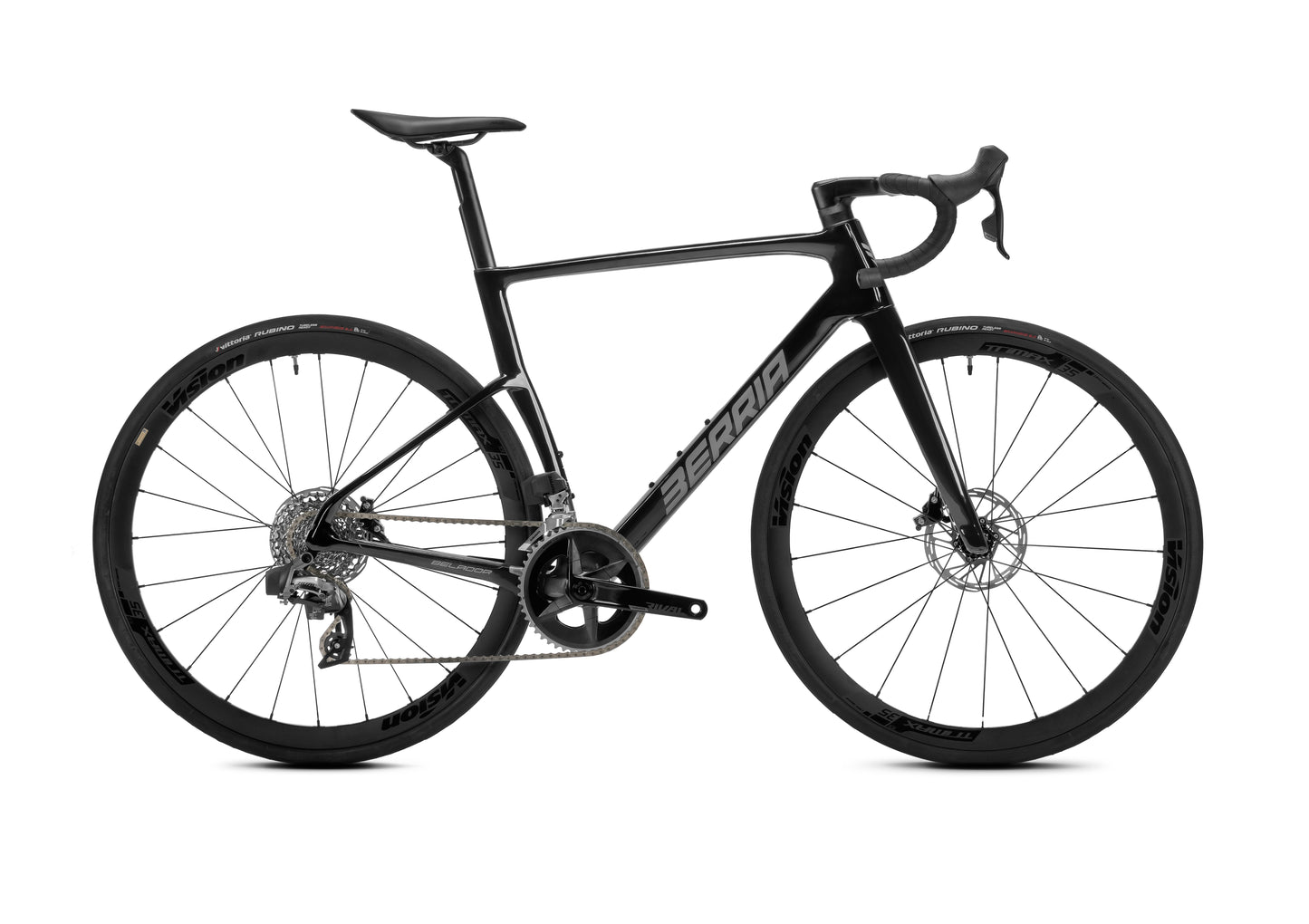

BELADOR PRO RIVAL AXS PWM

BELADOR PRO RIVAL AXS PWM

Carretera

Skip to product information
ICS2  FULL INTERNAL CABLE SYSTEM
O2HS  OVERSIZED HEADSET
T47
ACTIVE STAY
EPS
TRIPLE MONOCOQUE
HM2X
(ASE) Aero Shape Efficiency

BELADOR PRO RIVAL AXS PWM

BELADOR PRO RIVAL AXS PWM

Carretera

Color

Choose your color: DARK GREY-IRIS

Size

Choose your size

Component configuration

They ensure quality, durability and superior performance on every journey

Wheels

Handlebar

Tyres

*The components that are shown may not correspond to the image of this specific model.

View full details

Specifications

Components

  • Frame

    Belador 6 DISC, Racing Geometry BGC Aero Shape Efficiency (ASE), Full carbon HM2X, Triple monocoque, T47 Bottom Bracket, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2"- 1-1/2", Flat Mount System brake, 700x34c maximum tyre, Thru axle 12x142mm, weight 970gr

  • Fork

    Belador Blade 6 full carbon fork, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered head tube compatible, Flat Mount System brake, 700x34c maximum tyre, Thru axle 12x100mm, weight 450g

  • Material

    Full carbon fiber HM2X

  • Handlebar

    Avanforce Airone, Integral Road Carbon Handlebar, Full internal cable system ICS2, sizes 380x90 - 400x100 - 420x110 - 420x120, weight: 320gr

  • Seatpost

    Belador 6 SP, UD Carbon, 0/20 mm offset, ISP technology , weight 90gr

  • Saddle

    Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width: 140 mm, weight: 240gr

  • Seat clamp

    BR06 Direct Attachment

  • Wheels

    Vision Trimax 35, Aluminum rim, TLR, inner width 19mm, rim height 35mm, Center Lock, weight: 1680gr.

  • Coverings

    Vittoria Rubino, IV 28-622 Tubeless Ready, full black, Graphene 2.0

  • Control Changes

    SRAM RIVAL ETAP AXS Shift-Brake System Electronic Shift System

  • Gear Changes

    SRAM RIVAL eTap AXS 12s Electronic Shift System, weight 366g

  • Derailleur

    SRAM RIVAL eTap AXS Electronic Shift System, weight 366g

  • Cranks

    SRAM RIVAL D1 POWER METER Crankset 48/35T, 170-172,5-175

  • Chain

    CN RIVAL D1 12S 114LINK

  • Cassette

    SRAM RIVAL XG1250, 10-36T, weight 338g

  • Bottom bracket

    Sram DUB T47 Bottom Bracket

  • Brake

    SRAM RIVAL ETAP AXS D1 Hydraulic Shift-Brake System

  • *We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.

Geometry

1

Seat tube

445 mm

2

Horizontal tube

510 mm

3

Front angle

70.5°

4

Seat tube angle

74.9°

5

Wheelbase

970 mm

6

Sheath

405 mm

7

Front tube

110 mm

8

Bottom bracket drop

74 mm

9

Trail

83 mm

10

Fork feed

42 mm

11

Fork length

375 mm

12

Reach

369 mm

13

Stack

518 mm

1

Seat tube

475 mm

2

Horizontal tube

530 mm

3

Front angle

71.3°

4

Seat tube angle

74.6°

5

Wheelbase

982 mm

6

Sheath

405 mm

7

Front tube

125 mm

8

Bottom bracket drop

72 mm

9

Trail

73 mm

10

Fork feed

42 mm

11

Fork length

375 mm

12

Reach

383 mm

13

Stack

533 mm

1

Seat tube

500 mm

2

Horizontal tube

550 mm

3

Front angle

72°

4

Seat tube angle

74.3°

5

Wheelbase

993 mm

6

Sheath

405 mm

7

Front tube

140 mm

8

Bottom bracket drop

72 mm

9

Trail

68 mm

10

Fork feed

42 mm

11

Fork length

375 mm

12

Reach

396 mm

13

Stack

550 mm

1

Seat tube

530 mm

2

Horizontal tube

570 mm

3

Front angle

72.5°

4

Seat tube angle

74°

5

Wheelbase

1006 mm

6

Sheath

405 mm

7

Front tube

160 mm

8

Bottom bracket drop

72 mm

9

Trail

65 mm

10

Fork feed

42 mm

11

Fork length

375 mm

12

Reach

406 mm

13

Stack

570 mm

1

Seat tube

565 mm

2

Horizontal tube

590 mm

3

Front angle

73°

4

Seat tube angle

73.7°

5

Wheelbase

1018 mm

6

Sheath

405 mm

7

Front tube

180 mm

8

Bottom bracket drop

72 mm

9

Trail

62 mm

10

Fork feed

42 mm

11

Fork length

375 mm

12

Reach

418 mm

13

Stack

590 mm

Technologies

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.

The T47 Bottom Bracket standard has been optimized through years, arriving at a solid lightweight solution, leading to an improved overall pedalling stiffness of the frame and almost zero maintenance or noise compared to the predecessors such as BB86.

Our Active Stay Technology increases vertical flexion of the seat stays without compromising the necessary rigidity for a responsive ride.The result is maximised traction and ride compliance over the toughest terrain, with direct transfer of power translating into more speed.

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase.During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.

The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.

HM2X carbon is engineered using T700 and T800 Toray intermediate-modulus fibres.Used strategically across key frame areas, this dual blend of carbon material is laid up to produce an optimal combination of stiffness while also prioritising comfort.

Aero Shape Efficiency represents the most advanced calculus in modern road bicycles. The subtle balance between competition's needs such as a light structure, low coeficient drag profiles and an excellent dynamic behavior. Computational dynamics have led us to design new sophisticated sections and perfectly integrated profiles between frame, fork, wheels and the cockpit, leading to a conceived single assembly in order to achieve a higher level of performance.

Size: 51 / Color: DARK GREY-IRIS

3.899,00€
