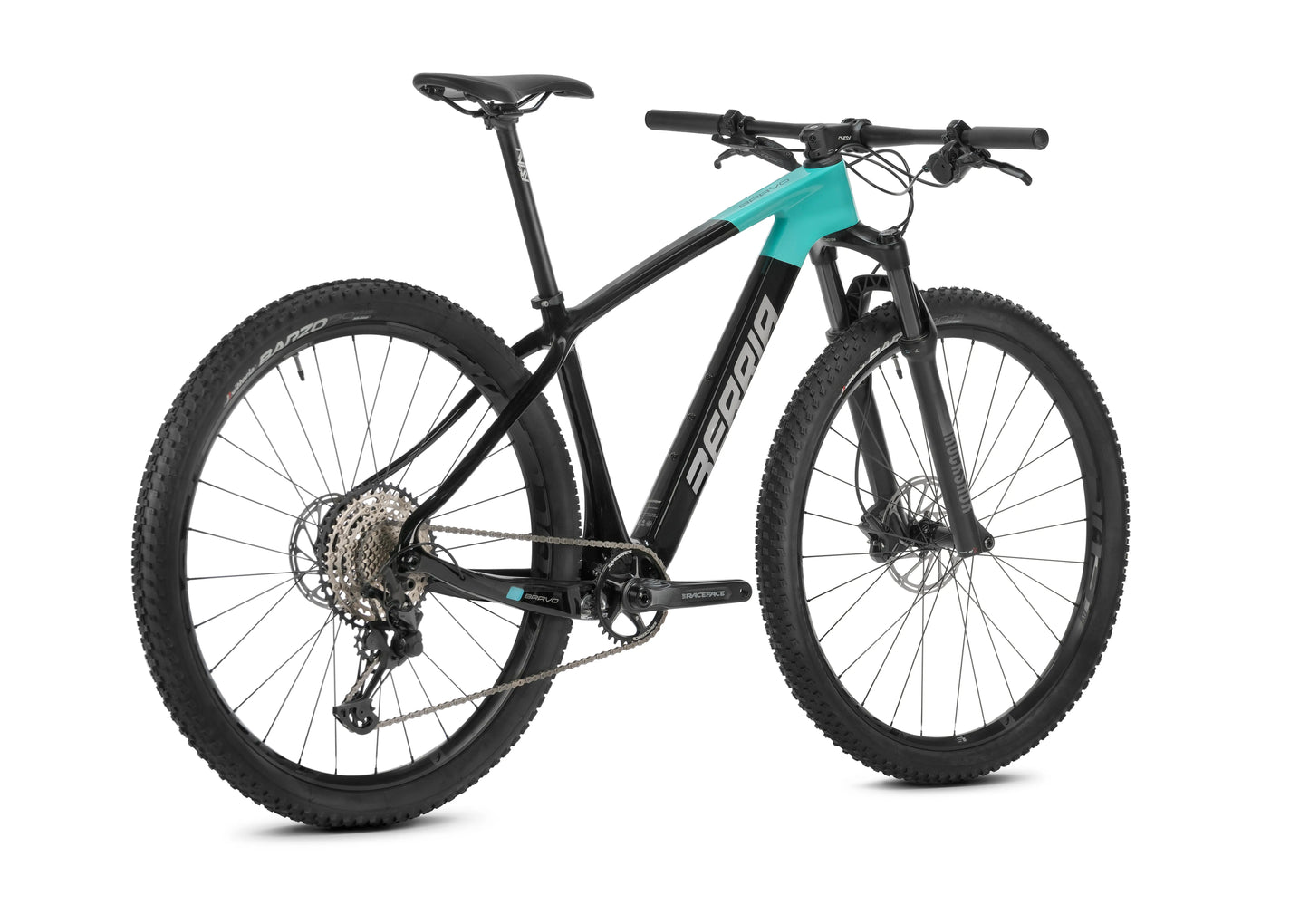

BRAVO ELITE XT

BRAVO ELITE XT

Montaña

Color

Choose your color: BLACK-RED RACING-IRIS STYLE

Size

Choose your size

*The components that are shown may not correspond to the image of this specific model.

View full details

Specifications

Components

  • Frame

    Bravo 5 EVO, XCO Racing Geometry BGC, Full carbon HMR2X, Triple monocoque, resin Matrix Nanotech CNT, BB92 botton bracket, Active Stay, Asymmetric, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2", Post Mount brake PMS, 29x2.35" max. tyre.

  • Fork

    RockShox RECON RL, Damper Motion Control, Remote Lockout 2 Position, 15x110mm Maxle Stealth, Tapered steerer, Rake 51, 32 mm straight wall aluminium, Diffusion Black, 100mm travel

  • Material

    Full carbon fiber HMR2X

  • Handlebar

    Avanforce AF3, Aluminum 6061, Ø31,8mm, wide 740mm, weight 330gr

  • Seatpost

    Avanforce AF3, Aluminum 6061, 0 offset, Ø27,2 x 400mm

  • Saddle

    Selle Royal 2058HRN, Steel rails, length: 285mm, width: 145mm, weight: 315gr

  • Seat clamp

    Universal Derailleur Hanger

  • Wheels

    Avanforce Assym 29", 15x110, Boost 12x148mm, TLR, Shimano MT400 Rear Hub, Center Lock, internal width: 27mm, weight: 2155gr

  • Coverings

    Vittoria Barzo, 29x2,25", Rigid Bead, weight: 800gr

  • Control Changes

    Shimano SL-M7100-R Trigger 12V Rapidfire Plus

  • Gear Changes

    Shimano XT RD-M8100, Aluminum cage, 12 Speed

  • Cranks

    RACEFACE Affect 34T 170-175mm

  • Chain

    Shimano CN-M6100, 118 links

  • Cassette

    Shimano SLX CS-M7100-12, 10-51T

  • Bottom bracket

    Bottom Bracket PF92 SH MTB

  • Brake

    SRAM Level Black 2 Piston

  • *We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.

Geometry

1

Seat tube

380 mm

2

Horizontal tube

558 mm

3

Front angle

68.6°

4

Seat tube angle

75°

5

Wheelbase

1080.9 mm

6

Sheath

427 mm

7

Front tube

93 mm

8

Bottom bracket drop

66 mm

9

Trail

97.7 mm

10

Fork feed

44 mm

11

Fork length

516 mm

12

Reach

396.2 mm

13

Stack

602.4 mm

1

Seat tube

425 mm

2

Horizontal tube

581 mm

3

Front angle

69.1°

4

Seat tube angle

74.5°

5

Wheelbase

1094 mm

6

Sheath

427 mm

7

Front tube

95 mm

8

Bottom bracket drop

64 mm

9

Trail

94.2 mm

10

Fork feed

44 mm

11

Fork length

516 mm

12

Reach

413.3 mm

13

Stack

604.7 mm

1

Seat tube

470 mm

2

Horizontal tube

615 mm

3

Front angle

69.1°

4

Seat tube angle

74°

5

Wheelbase

1123.2 mm

6

Sheath

427 mm

7

Front tube

100 mm

8

Bottom bracket drop

64 mm

9

Trail

94.2 mm

10

Fork feed

44 mm

11

Fork length

516 mm

12

Reach

440.4 mm

13

Stack

609.2 mm

1

Seat tube

520 mm

2

Horizontal tube

645 mm

3

Front angle

69.6°

4

Seat tube angle

73.5°

5

Wheelbase

1145.3 mm

6

Sheath

427 mm

7

Front tube

105 mm

8

Bottom bracket drop

64 mm

9

Trail

90.7 mm

10

Fork feed

44 mm

11

Fork length

516 mm

12

Reach

462.5 mm

13

Stack

616.2 mm

Technologies

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

Our Active Stay Technology increases vertical flexion of the seat stays without compromising the necessary rigidity for a responsive ride.The result is maximised traction and ride compliance over the toughest terrain, with direct transfer of power translating into more speed.

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase.During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.

The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.

HMR2X carbon uses a specific blend of high modulus Toray T800 and ultra high-modulus Toray M55J fibres.Together with carefully chosen resin, this carbon mix can yield incredibly high structural strength without adding excess weight to the overall system.

Size: XS / Color: BLACK-RED RACING-IRIS STYLE

1.999,00€
