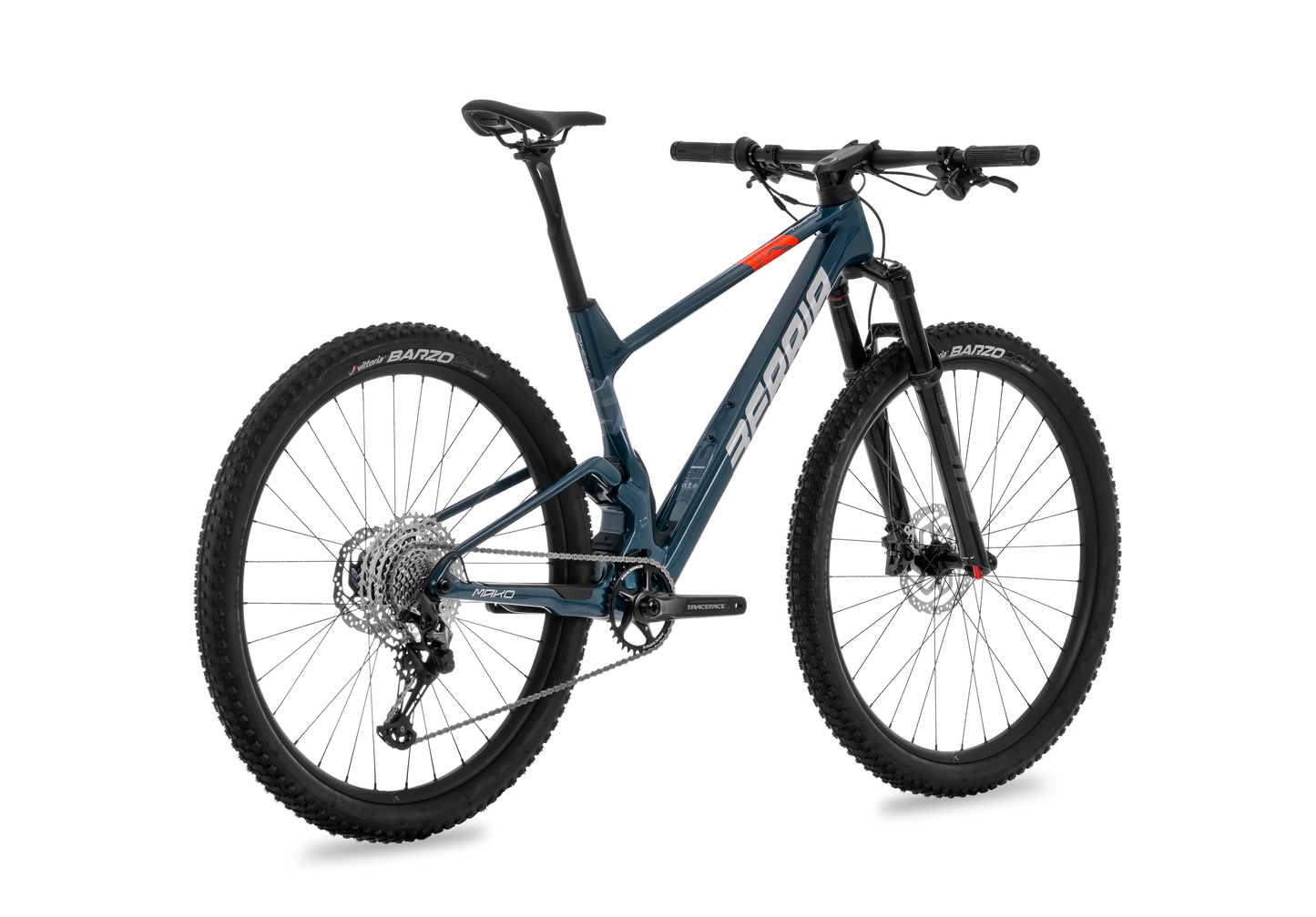

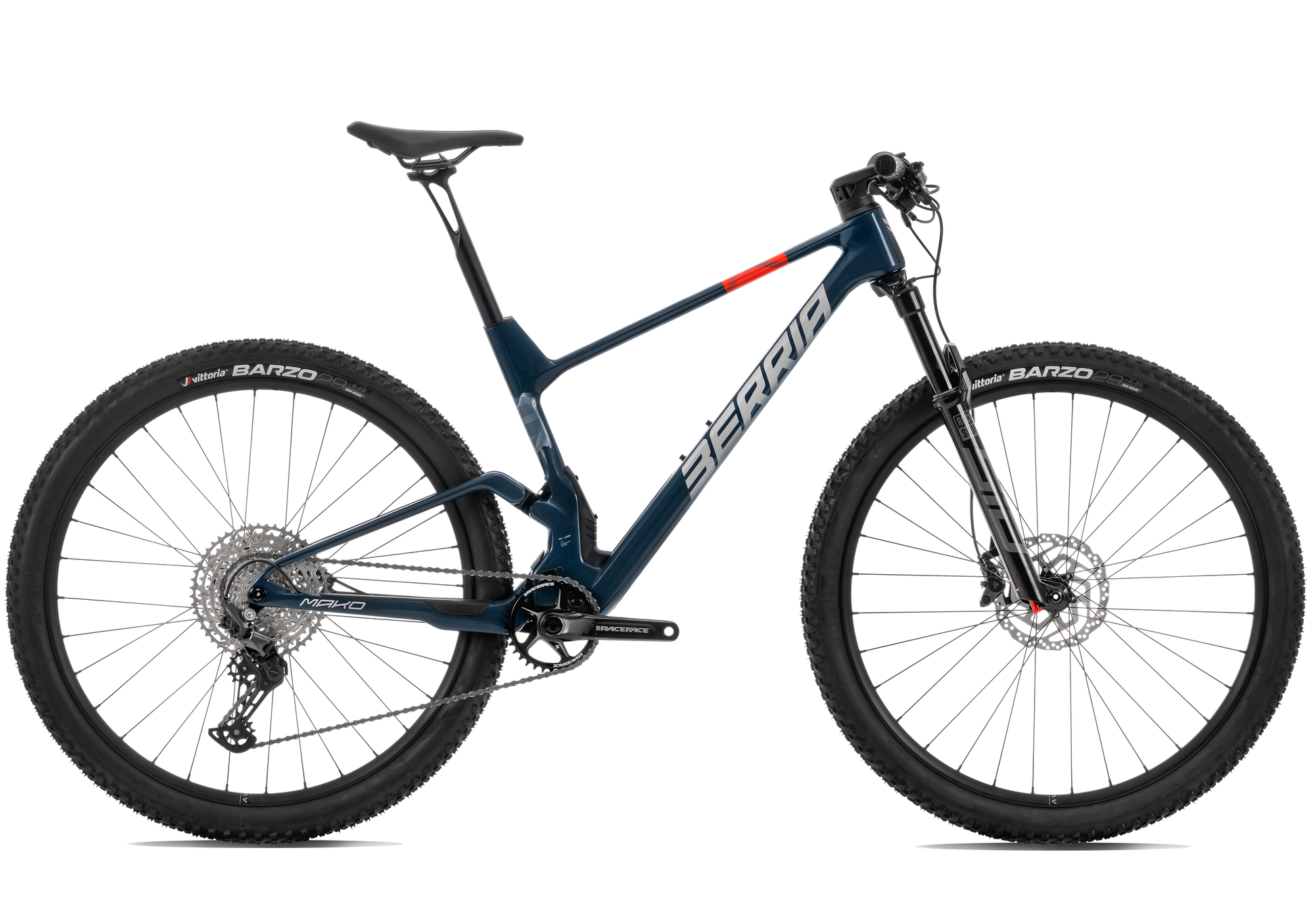

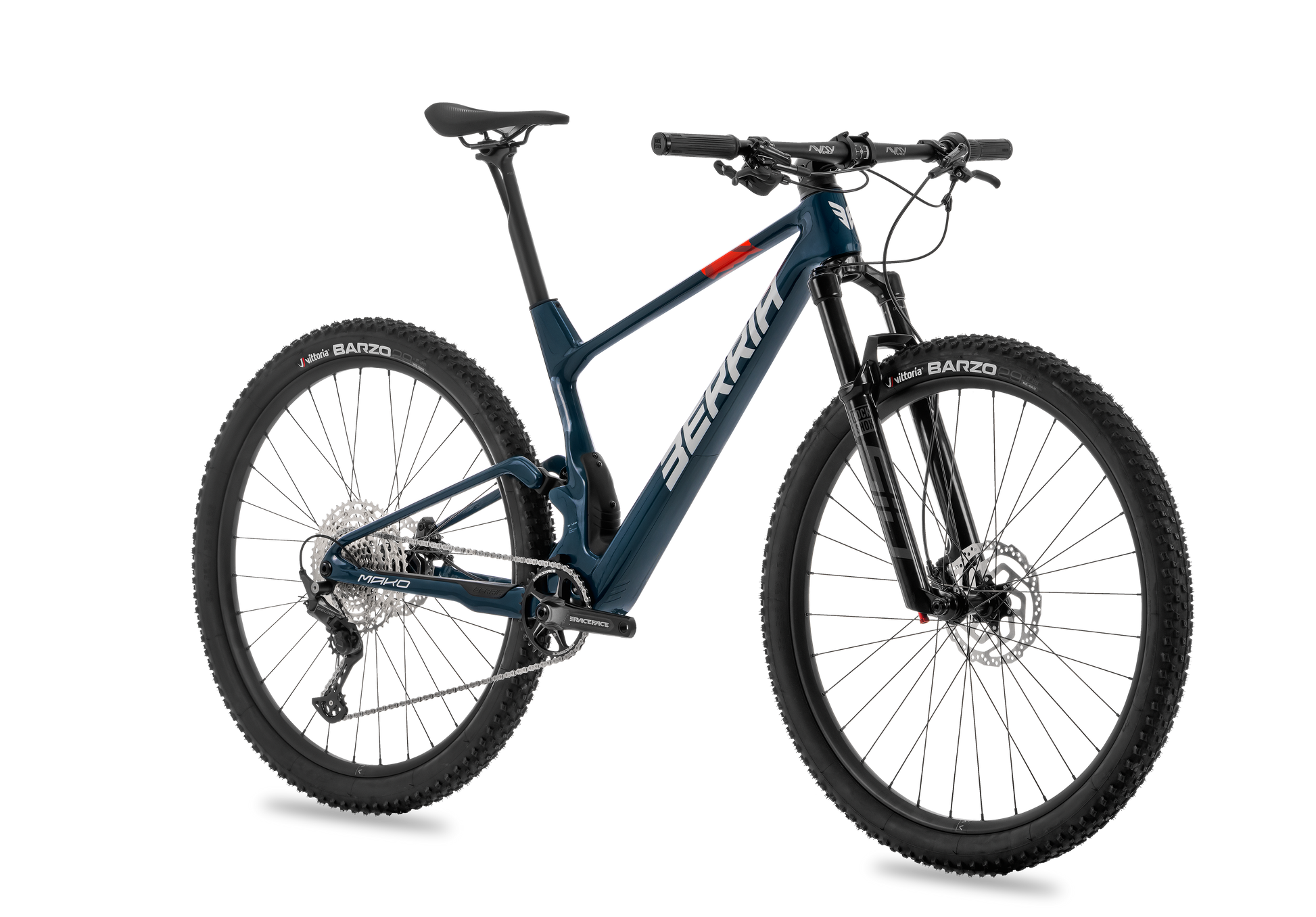

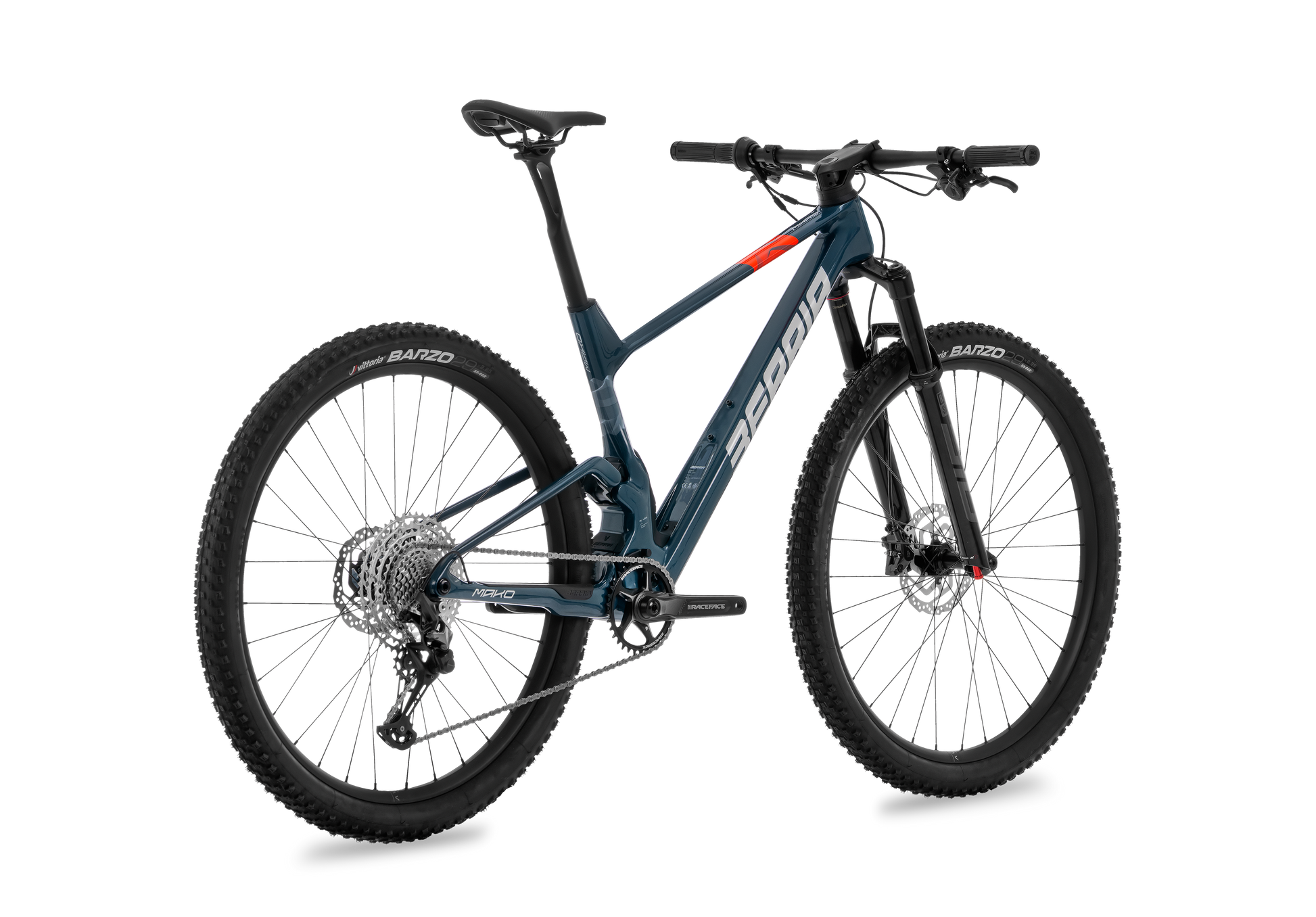

MAKO ELITE DEORE

MAKO ELITE DEORE

Montaña

products/ddee3f77-95d9-45b1-9a87-b5c987f027a7/PT26.05.01.S1.L-1.png
products/ddee3f77-95d9-45b1-9a87-b5c987f027a7/PT26.05.01.S1.L-2.png
products/ddee3f77-95d9-45b1-9a87-b5c987f027a7/PT26.05.01.S1.L-3.png
ICS2 FULL INTERNAL CABLE SYSTEM
IN-LINK
HM2X
MONOCOQUE

MAKO ELITE DEORE

MAKO ELITE DEORE

Montaña

Color

Choose your color: STEELBLUE-Collection

Color Collection

Size

Choose your size

*The components that are shown may not correspond to the image of this specific model.

View full details

Specifications

Components

  • Fork

    RockShox SID BSE, Damper Charger RL, Remote Lockout 3 Position, 15x110 Maxle Stealth, Tapered steerer, Spring Debon Air, Rake 44mm, 35mm tapered wall aluminum, Diffusion Black, 120mm travel

  • Material

    Full carbon fiber HM2X

  • Handlebar

    Avanforce AF3, Aluminum 6061, Ø31,8mm, width: 740mm

  • Seatpost

    Avanforce Tibia, Softex Seat post, UD Carbon, 0 offset, Ø31,6 x 420mm

  • Saddle

    SRX Open Cut Athletic, Steel rails, length: 260mm, width: 148mm

  • Seat clamp

    Universal Derailleur Hanger

  • Wheels

    Avanforce TRYP30 EVO 29", 15x110, Boost 12x148mm, TLR, Center Lock, internal width 30mm

  • Control Changes

    Shimano Deore, SL-M6100-R, 12s, Rapidfire Plus

  • Gear Changes

    Shimano Deore RD-M6100, Aluminum Cage, 12s

  • Cranks

    RACEFACE Affect, 34T, 170-175mm

  • Chain

    CN-M6100, 118 Links

  • Cassette

    CS-M6100-12, 10-51T

  • Bottom bracket

    BB92 SH PF

  • Brake

    Shimano Deore, BL-6100, 4 Piston

  • *We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.

Geometry

berria-production/frames/25.01.14/mako-cuadro.webp
S 155-170 cm
M 170-185 cm
L 180-195 cm

1

Seat tube

400 mm

2

Horizontal tube

580 mm

3

Front angle

67°

4

Seat tube angle

76.2°

5

Wheelbase

1143 mm

6

Sheath

430 mm

7

Front tube

85 mm

8

Bottom bracket drop

47 mm

9

Trail

112 mm

10

Fork feed

44 mm

11

Fork length

521 mm

12

Reach

435 mm

13

Stack

590 mm

1

Seat tube

445 mm

2

Horizontal tube

608 mm

3

Front angle

67.5°

4

Seat tube angle

76°

5

Wheelbase

1165 mm

6

Sheath

430 mm

7

Front tube

95 mm

8

Bottom bracket drop

47 mm

9

Trail

108 mm

10

Fork feed

44 mm

11

Fork length

521 mm

12

Reach

458 mm

13

Stack

602 mm

1

Seat tube

490 mm

2

Horizontal tube

640 mm

3

Front angle

68°

4

Seat tube angle

75.8°

5

Wheelbase

1191 mm

6

Sheath

430 mm

7

Front tube

105 mm

8

Bottom bracket drop

47 mm

9

Trail

104 mm

10

Fork feed

44 mm

11

Fork length

521 mm

12

Reach

485 mm

13

Stack

614 mm

Technologies

berria-production/technologies/ics2/ics2.svg
berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.
berria-production/technologies/in-link/inlink.svg
berria-production/technologies/in-link/inlink.svg

The IN-LINK suspension system allows to integrate the shock absorber, inverted with trunnion mount, inside the front triangle, with a SAG indicator on the left side of the frame and access for its adjustment and manipulation. Thanks to a patented cover located on the front face of the opening on the frame. This integration not only results in better protection of the shock absorber against mud or dust, but also takes advantage of an improved mass distribution and a lower bike centre of gravity, which increases stability, especially at high speeds.
berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg
berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg

HM2X carbon is engineered using T700 and T800 Toray intermediate-modulus fibres. Used strategically across key frame areas, this dual blend of carbon material is laid up to produce an optimal combination of stiffness while also prioritising comfort.
berria-production/technologies/monocoque/monocoque.svg
berria-production/technologies/monocoque/monocoque.svg

Monocoque technology makes the front triangle in a single piece using a specific curing protocol and internal mold sliders made of different special grade steel. This technology is used to achieve frames where strength, lightness and rigidity prevail.

Size: S / Color: STEELBLUE-Collection

3.299,00€
