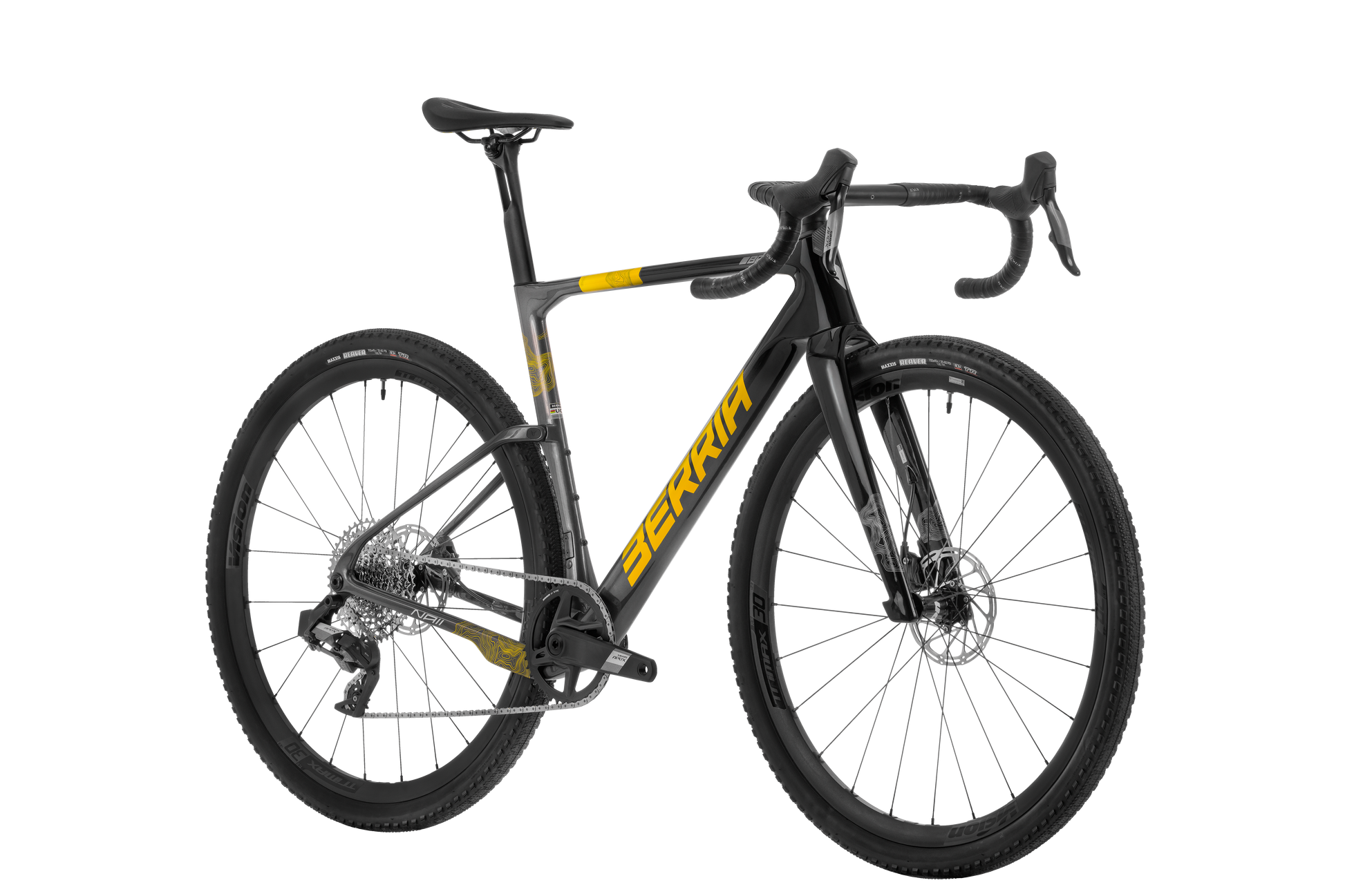

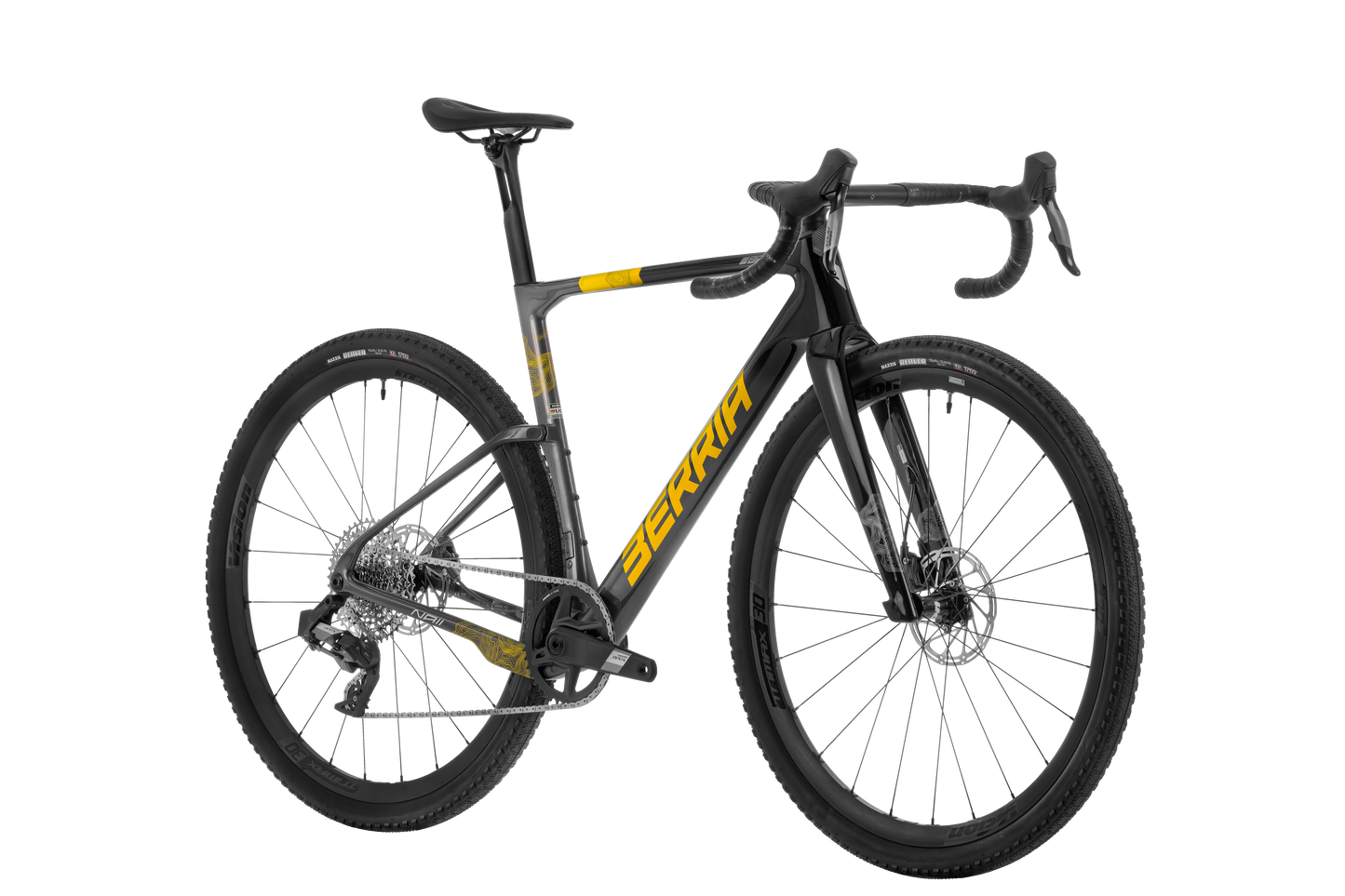

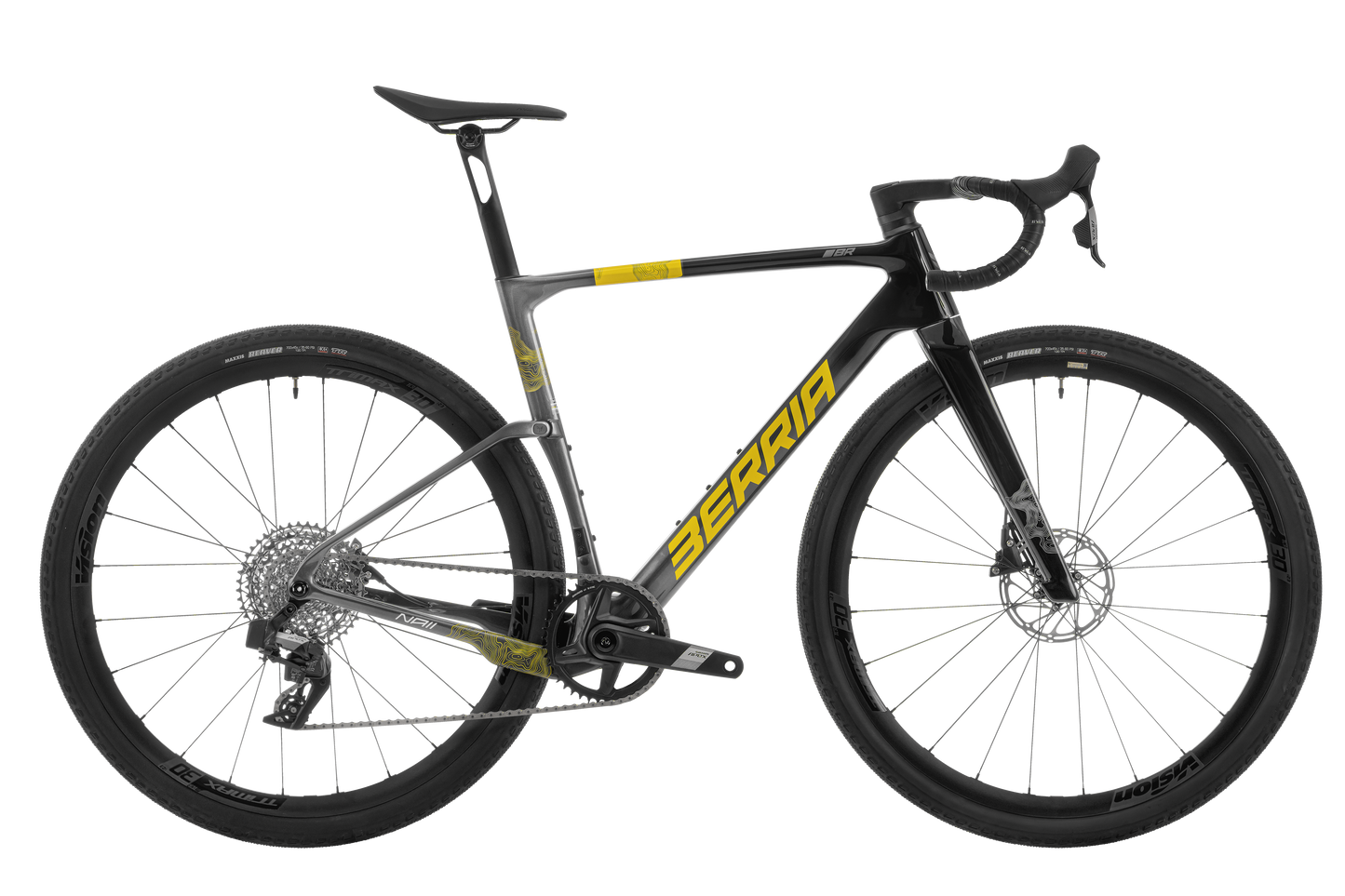

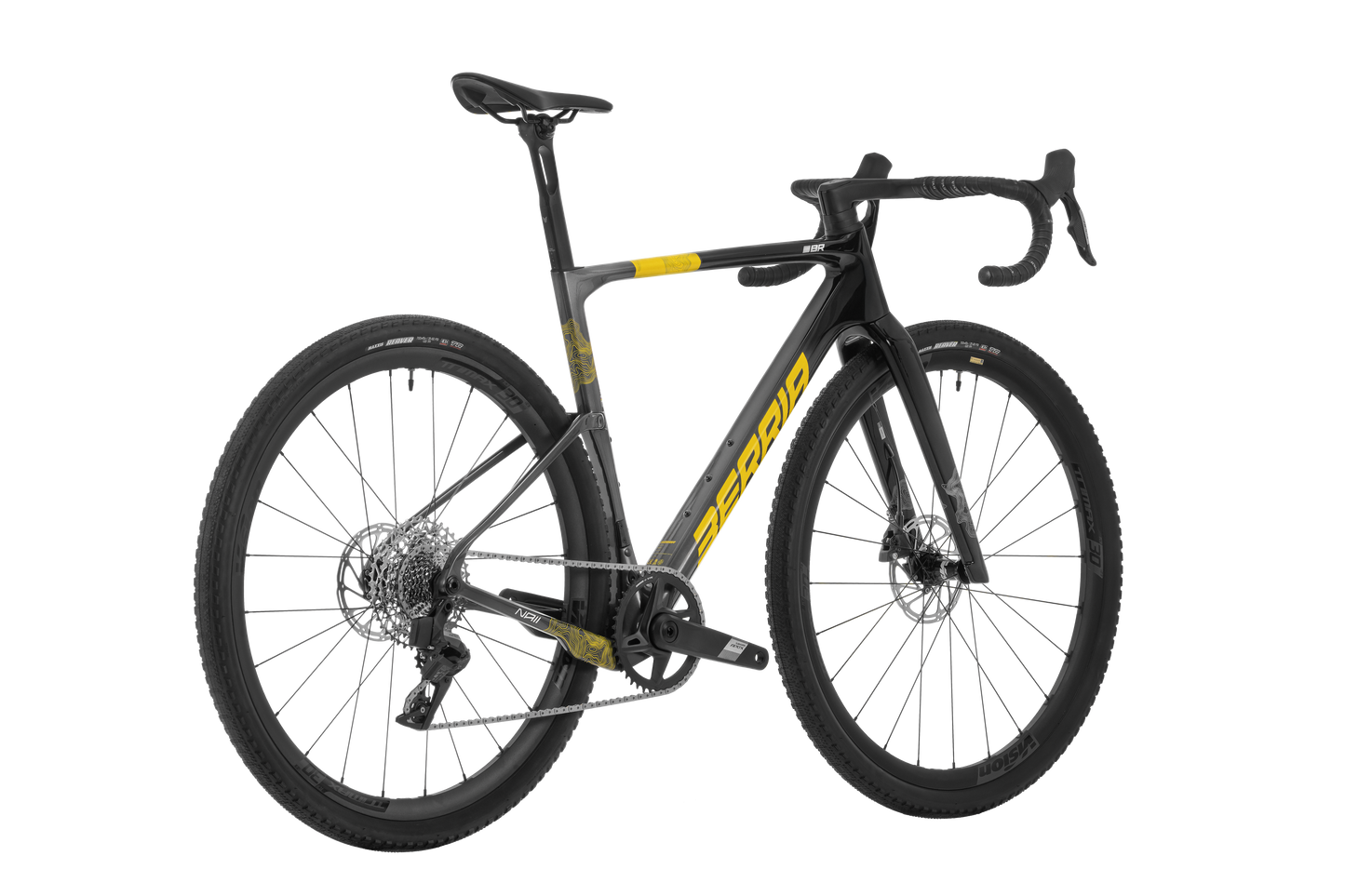

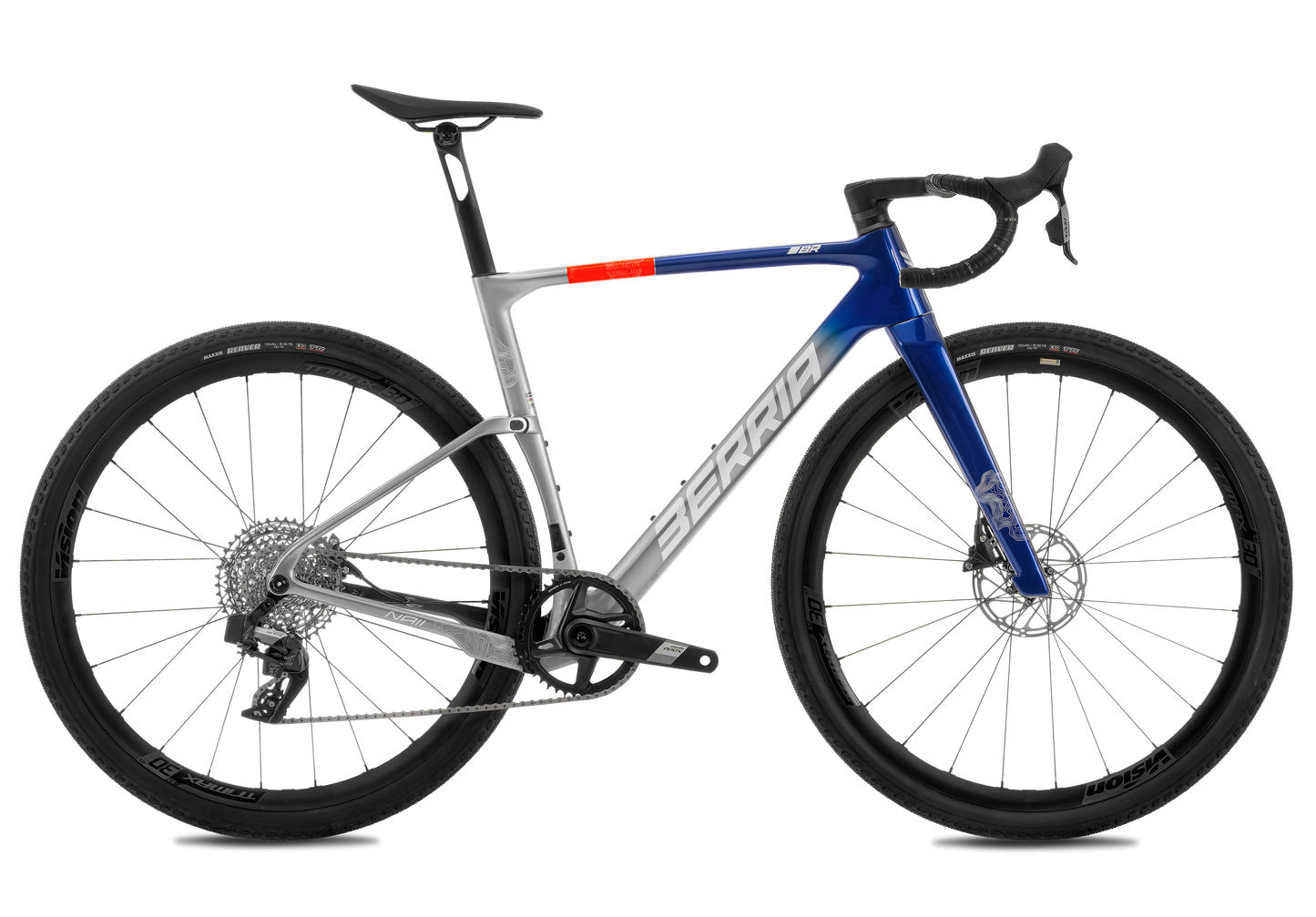

Name: NAII BR APEX XPLR AXS
Brand: Berria Bikes
SKU: PT26.09.08.S2.XS
Price: 3799.0 EUR
Availability: OutOfStock

Specifications

Components

Frame

NAII Carbon, Geometry BGC with 28mm travel SOFTEX Suspension System, Full carbon HM3X, Triple monocoque, T47 bottom bracket, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2"- 1-1/2", Flat Mount 140mm, 700x50c maximum tyre, dedicated Seat post, Thru axle 12x142mm, UDH standard
Fork

Naii Fork, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered , Flat Mount Standard max. 160mm disc , 700x50c maximum tyre, 48mm fork rake, 395mm axle to crown, Thru axle 12x100mm
Material

Full carbon fiber HM3X
Handlebar

Avanforce Airone GR, lntegrated Gravel Carbon Handlebar, Full internal cable system ICS2, sizes: 405x80 - 425x90, 425x100, 425x110, 445x120
Seatpost

Avanforce Naii Tibia, Softex Seat post, UD Carbon, 0 offset, length: 300, 350mm
Saddle

Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width: 140 mm
Seat clamp

Universal Derailleur Hanger
Wheels

Vision Trimax 30 AGX, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock
Control Changes

SRAM APEX AXS D1, Shift-Brake Electronic System
Gear Changes

SRAM APEX XPLR AXS D1, Electronic Shift System, 12s
Derailleur

SRAM APEX XPLR AXS D1, 12s, Electronic Shift System
Cranks

SRAM APEX D1, DUB WIDE Crankset, 42T, 170-172,5-175mm
Chain

SRAM APEX D1, 118 Links
Cassette

CS XPLR PG1231, 11-44T
Bottom bracket

BBT47-SRAM WIDE
Brake

SRAM APEX AXS D1, Hydraulic Shift-Brake System
*We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.

Test, display and rental

(You can find this bike live at the following stores)

	Bike	Color	Size	Service	City	Store

Geometry

berria-production/frames/26.01.22/GEOMETRIA 26 - NAII.png

XS 150 cm

S 160-170 cm

M 170-180 cm

L 180-190 cm

XL > 192 cm

Seat tube

460 mm

Horizontal tube

525.6 mm

Front angle

71°

Seat tube angle

75°

Wheelbase

998.7 mm

Sheath

420 mm

Front tube

95 mm

Bottom bracket drop

75 mm

Trail

71.8 mm

Fork feed

48 mm

Fork length

395 mm

Reach

385 mm

Stack

524.6 mm

Seat tube

485 mm

Horizontal tube

539.4 mm

Front angle

71°

Seat tube angle

75°

Wheelbase

1013.6 mm

Sheath

420 mm

Front tube

110 mm

Bottom bracket drop

75 mm

Trail

71.8 mm

Fork feed

48 mm

Fork length

395 mm

Reach

395 mm

Stack

538.8 mm

Seat tube

510 mm

Horizontal tube

554.1 mm

Front angle

71.5°

Seat tube angle

75°

Wheelbase

1026.4 mm

Sheath

420 mm

Front tube

130 mm

Bottom bracket drop

72 mm

Trail

68.5 mm

Fork feed

48 mm

Fork length

395 mm

Reach

405 mm

Stack

556.5 mm

Seat tube

535 mm

Horizontal tube

574.6 mm

Front angle

71.5°

Seat tube angle

74.5°

Wheelbase

1042.8 mm

Sheath

420 mm

Front tube

150 mm

Bottom bracket drop

72 mm

Trail

68.5 mm

Fork feed

48 mm

Fork length

395 mm

Reach

415 mm

Stack

575.5 mm

Seat tube

560 mm

Horizontal tube

590.4 mm

Front angle

72°

Seat tube angle

74.5°

Wheelbase

1054.6 mm

Sheath

420 mm

Front tube

170 mm

Bottom bracket drop

72 mm

Trail

65.2 mm

Fork feed

48 mm

Fork length

395 mm

Reach

425 mm

Stack

596.4 mm

	XS	S	M	L	XL
	150 cm	160-170 cm	170-180 cm	180-190 cm	> 192 cm
1 Seat tube	460 mm	485 mm	510 mm	535 mm	560 mm
2 Horizontal tube	525.6 mm	539.4 mm	554.1 mm	574.6 mm	590.4 mm
3 Front angle	71°	71°	71.5°	71.5°	72°
4 Seat tube angle	75°	75°	75°	74.5°	74.5°
5 Wheelbase	998.7 mm	1013.6 mm	1026.4 mm	1042.8 mm	1054.6 mm
6 Sheath	420 mm	420 mm	420 mm	420 mm	420 mm
7 Front tube	95 mm	110 mm	130 mm	150 mm	170 mm
8 Bottom bracket drop	75 mm	75 mm	72 mm	72 mm	72 mm
9 Trail	71.8 mm	71.8 mm	68.5 mm	68.5 mm	65.2 mm
10 Fork feed	48 mm	48 mm	48 mm	48 mm	48 mm
11 Fork length	395 mm	395 mm	395 mm	395 mm	395 mm
12 Reach	385 mm	395 mm	405 mm	415 mm	425 mm
13 Stack	524.6 mm	538.8 mm	556.5 mm	575.5 mm	596.4 mm

Technologies

The T47 Bottom Bracket standard has been optimized through years, arriving at a solid lightweight solution, leading to an improved overall pedalling stiffness of the frame and almost zero maintenance or noise compared to the predecessors such as BB86.

berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

berria-production/technologies/7a3bf22c-f97a-4a3a-84ef-29ca92aee3b9/SOFTEX-1.png

The SOFTEX suspension system opens a new category between a Hardtail and a Full suspension bike. The first component of the system is TIBIA, a compliant carbon seat post that absorbs the small bumps across the road acting as a damper. On the other hand we have the Active Seat Stay (ASS), it is a mechanism based on sectioned shaped Seat Stays and Chain Stays with integrated bearings that together with an engineered supple Lay up helps the rider to go through rough terrain faster. All the elements mixed together will extract a total vertical travel of 28mm giving an extended comfort and higher absorption compared to a regular Hardtail bike.

berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg

The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.

berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.

berria-production/technologies/e17d796c-da41-41c9-a7f9-6ecff0a3afcb/HM3X-1.png

HM3X carbon features three types of high-modulus carbon fibres: Toray T700 and T800, and Toray T1100G. The inclusion of T1100G fibres improves the golden stiffness-to-weight ratio, making it a perfect material for the highest performance bikes. Our engineers apply these fibres in unique orientations that boost lateral rigidity without sacrificing ride quality and handling.

berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg

The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.
