Color

Choose your color: BLACK-BLACK-IRIS

Size

Choose your size

Component configuration

They ensure quality, durability and superior performance on every journey

Wheels

Handlebar

Suspension fork and shock

Seat post, dropper option

*The components that are shown may not correspond to the image of this specific model.

View full details

Specifications

Components

  • Frame

    Stratos , Geometry Allmountain BGC, Mullet standard with 160mm travel, Full carbon HM3X, Monocoque, MACH-R Nanotech, bearings full ball ISB VMAX, Full internal cable system ICS2, MTB Acros Headset ZS56 with Blocklock 150º, Post mount 200mm, 29x2.60 maximum tyre, Thru axle Boost 12x148mm, UDH standard, weight: 2600gr

  • Fork

    RockShox ZEB Base, 15x110mm Maxle Stealth, Tapered steerer, Debon Air + Dual Position Air , Rake 44mm, 38mm tapered wall aluminium, Diffusion Black, 160mm travel, weight: 2020gr

  • Material

    Full carbon fiber HM3X

  • Handlebar

    Avanforce AF2 MTB, Aluminum 6061, Ø31,8mm, width 780mm, Backsweep 6°, Upsweep 5°, Rise 20mm, weight: 330gr

  • Seatpost

    Crank Brothers HIGHLINE 3 Dropper post, Aluminum 7075-T6, 0 offset, Ø31,6, 170mm travel, weight: 609gr

  • Saddle

    Essax Era, Steel rails, length: 250mm, width: 145mm, weight: 280gr

  • Seat clamp

    Universal Derailleur Hanger

  • Shock absorber

    Rock Shox VIVID Base, 230x60, Air can, 1 token, Rebound C55, Compression tune C34, Hydraulic Bottom Out, 160mm travel

  • Wheels

    Mavic E-Crossride 29"/27,5", 15x110, Boost 12x148mm, TLR, XDR or SH Rear Hub, 6 Bolts, internal width: 30mm, weight: 2225gr

  • Coverings

    Vittoria E-Mazza Enduro 29x2,60, E-Martello Enduro, 27,5x2,40", Tubeless Ready, Graphene 4C Compound, 120 TPI, set weight: 2630gr

  • Control Changes

    EC AXS POD Right/Left Bridge W/MMX

  • Gear Changes

    SRAM S1000 AXS Eagle T-TYPE, 12 Speed

  • Derailleur

    SRAM S1000 AXS Eagle T-TYPE, 12 Speed

  • Cranks

    S1000 Eagle SRAM Powertrain ISIS Drive Cranks, length: 165mm

  • Chain

    SRAM GX T-TYPE Flattop, 120 links

  • Cassette

    SRAM XS 1275 Eagle, T-TYPE, 10-52T

  • Brake

    SRAM DB8 Black 4 Piston

  • Motor

    SRAM Eagle Powertrain Drive Unit, 250W, 90NM

  • Battery

    SRAM Eagle Powertrain Full Size, 720WH

  • Display

    SRAM Eagle Powertrain AXS Bridge Display

  • Charger

    Eagle Powertrain Charger EU/UK/US Plug Supplied

  • *We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.

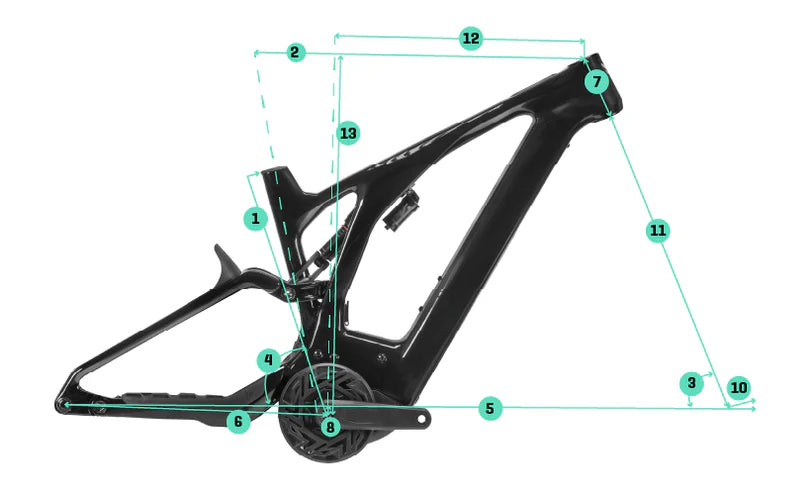

Geometry

S 155-170 cm
M 170-185 cm
L 180-195 cm

1

Seat tube

400 mm

2

Horizontal tube

582 mm

3

Front angle

64,5°

4

Seat tube angle

76°

5

Wheelbase

1208 mm

6

Sheath

450 mm

7

Front tube

90 mm

8

Bottom bracket drop

-25/-6 mm

9

Trail

131.5 mm

10

Fork feed

44 mm

11

Fork length

576 mm

12

Reach

430 mm

13

Stack

610 mm

1

Seat tube

425 mm

2

Horizontal tube

610 mm

3

Front angle

64,5°

4

Seat tube angle

76°

5

Wheelbase

1239 mm

6

Sheath

450 mm

7

Front tube

105 mm

8

Bottom bracket drop

-25/-6 mm

9

Trail

131.5 mm

10

Fork feed

44 mm

11

Fork length

576 mm

12

Reach

455 mm

13

Stack

623 mm

1

Seat tube

470 mm

2

Horizontal tube

650 mm

3

Front angle

64,5°

4

Seat tube angle

76°

5

Wheelbase

1280 mm

6

Sheath

450 mm

7

Front tube

120 mm

8

Bottom bracket drop

-25/-6 mm

9

Trail

131.5 mm

10

Fork feed

44 mm

11

Fork length

576 mm

12

Reach

490 mm

13

Stack

637 mm

Technologies

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

Y-LINK, the custom suspension system for Stratos, develops 160mm of travel and has unsurpassed traction capacity, as well as great handling thanks to the 27.5” tire on the rear wheel.The Y-LINK system damper adjustment is specific to STRATOS kinematics; Anticipating a sensitive, progressive and precise system, it achieves an incredible absorption capacity against large and small impacts together with an exceptional harmony in its operation, transmitting driving confidence and total control when braking.At the same time, the Y-LINK suspension has been developed to ride on all types of terrain and thanks to its neutral Anti-squat, it will allow you to face flat or uphill sections with maximum comfort and dynamism.

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase.During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.

Monocoque technology makes the front triangle in a single piece using a specific curing protocol and internal mold sliders made of different special grade steel. This technology is used to achieve frames where strength, lightness and rigidity prevail.

To deal with the additional forces and high-frequency vibrations that a motor and battery system exert on a carbon frameset, we use MACH-R Nanotech resin.This special resin bonds the Toray fibres of HM2X carbon together, providing the superior mechanical strength required for an electric motorised frame, improving frame strength, resilience and long-term lifespan.

HM3X carbon features three types of high-modulus carbon fibres: Toray T700 and T800, and Toray T1100G.The inclusion of T1100G fibres improves the golden stiffness-to-weight ratio, making it a perfect material for the highest performance bikes.Our engineers apply these fibres in unique orientations that boost lateral rigidity without sacrificing ride quality and handling.

Size: S / Color: BLACK-BLACK-IRIS

8.499,00€
