BRAVO ELITE GX

BRAVO ELITE GX

Montagna

products/65e92755-59b3-4cba-bc24-a63c22d8375a/S1.jpg
temp/PT26_02_04_XX_Bravo ELite GX.jpg
temp/PT26_02_04_XX_Bravo ELite GX-02.jpg
temp/PT26_02_04_XX_Bravo ELite GX-03.jpg
ICS2 FULL INTERNAL CABLE SYSTEM
SOFTEX
EPS
HM2X
TRIPLE MONOCOQUE

BRAVO ELITE GX

BRAVO ELITE GX

Montagna

Colore

Scegliete il vostro colore: BLACK-LIQUID METAL-AQUARACER-Collection

TAGLIA

Scegliete la vostra taglia

*I componenti mostrati potrebbero non corrispondere all'immagine di questo modello specifico.

Visualizza dettagli completi

Specifiche tecniche

Componenti

  • Forcella

    RockShox RECON RL, Damper Motion Control, Remote Lockout 2 Position, 15x110mm Maxle Stealth, Tapered steerer, Rake 51, 32 mm straight wall aluminium, Diffusion Black, 100mm travel

  • Materiale

    Full carbon fiber HM2X

  • Manubrio

    Avanforce AF3, Aluminum 6061, Ø31,8mm, width: 740mm

  • Reggisella

    Avanforce AF3, Aluminum 6061, 0 offset, Ø27,2, length: 350, 400mm

  • Sella

    Selle Royal 2058HRN, Steel rails, length: 285mm, width: 145mm

  • Forcellino cambio

    Universal Derailleur Hanger

  • Ruote

    FULCRUM RED ZONE 700 29", Alloy Material, 15x110, Boost 12x148mm, TLR, HG11 Rear Hub, Center Lock, internal width 23mm

  • Comando del cambio

    SRAM NX Eagle Trigger 12s, X-actuation

  • Cambio

    SRAM GX Eagle Lunar, Aluminum cage, 12s

  • Pedivelle

    SRAM X1 1000, DUB Eagle, 34T 170-175mm

  • Catena

    SRAM SX Eagle A1, 118 Links

  • Cassetta

    CS PG1210 Eagle, 11-50T

  • Movimento centrale

    BB92 DUB PF

  • Freno

    SRAM Level Black, 2 Piston

  • *Ci riserviamo il diritto di modificare senza preavviso le informazioni e i componenti dei prodotti che appaiono su questo sito web, specifiche, modelli, colori e materiali.

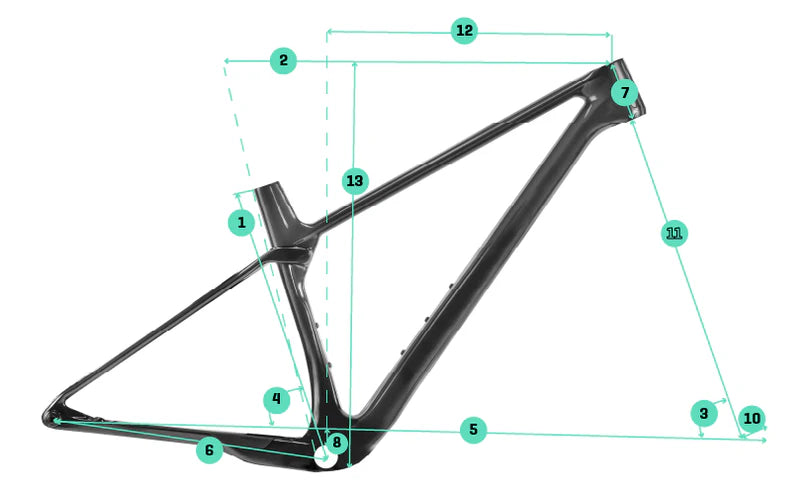

Geometria

berria-production/frames/26.01.20/3._BRAVO.png
XS 150-165 cm
S 160-175 cm
M 175-185 cm
L 180-198 cm

1

Tubo sella

380 mm

2

Tubo orizzontale

556 mm

3

Angolo anteriore

66.5°

4

Angolo del tubo sella

75.1°

5

Passo

1099 mm

6

Baccello

420 mm

7

Tubo anteriore

85 mm

8

Forcellino del movimento centrale

63 mm

9

Trail

110 mm

10

Avanzamento della forcella

44 mm

11

Lunghezza della forcella

516 mm

12

Reach

397 mm

13

Stack

599 mm

1

Tubo sella

431 mm

2

Tubo orizzontale

594 mm

3

Angolo anteriore

67°

4

Angolo del tubo sella

75.1°

5

Passo

1130 mm

6

Baccello

420 mm

7

Tubo anteriore

95 mm

8

Forcellino del movimento centrale

63 mm

9

Trail

106 mm

10

Avanzamento della forcella

44 mm

11

Lunghezza della forcella

516 mm

12

Reach

430 mm

13

Stack

610 mm

1

Tubo sella

470 mm

2

Tubo orizzontale

622 mm

3

Angolo anteriore

67.5°

4

Angolo del tubo sella

74.4°

5

Passo

1147 mm

6

Baccello

420 mm

7

Tubo anteriore

107 mm

8

Forcellino del movimento centrale

63 mm

9

Trail

103 mm

10

Avanzamento della forcella

44 mm

11

Lunghezza della forcella

516 mm

12

Reach

448 mm

13

Stack

624 mm

1

Tubo sella

521 mm

2

Tubo orizzontale

647 mm

3

Angolo anteriore

68°

4

Angolo del tubo sella

74.1°

5

Passo

1165 mm

6

Baccello

420 mm

7

Tubo anteriore

120 mm

8

Forcellino del movimento centrale

63 mm

9

Trail

99 mm

10

Avanzamento della forcella

44 mm

11

Lunghezza della forcella

516 mm

12

Reach

465 mm

13

Stack

638 mm

Tecnologie

berria-production/technologies/ics2/ics2.svg
berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.
berria-production/technologies/7a3bf22c-f97a-4a3a-84ef-29ca92aee3b9/SOFTEX-1.png
berria-production/technologies/7a3bf22c-f97a-4a3a-84ef-29ca92aee3b9/SOFTEX-1.png

The SOFTEX suspension system opens a new category between a Hardtail and a Full suspension bike. The first component of the system is TIBIA, a compliant carbon seat post that absorbs the small bumps across the road acting as a damper. On the other hand we have the Active Seat Stay (ASS), it is a mechanism based on sectioned shaped Seat Stays and Chain Stays with integrated bearings that together with an engineered supple Lay up helps the rider to go through rough terrain faster. All the elements mixed together will extract a total vertical travel of 28mm giving an extended comfort and higher absorption compared to a regular Hardtail bike.

berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg
berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.
berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg
berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg

HM2X carbon is engineered using T700 and T800 Toray intermediate-modulus fibres. Used strategically across key frame areas, this dual blend of carbon material is laid up to produce an optimal combination of stiffness while also prioritising comfort.
berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg
berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg

The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.

TAGLIA: XS / Colore: BLACK-LIQUID METAL-AQUARACER-Collection

2.299,00€
