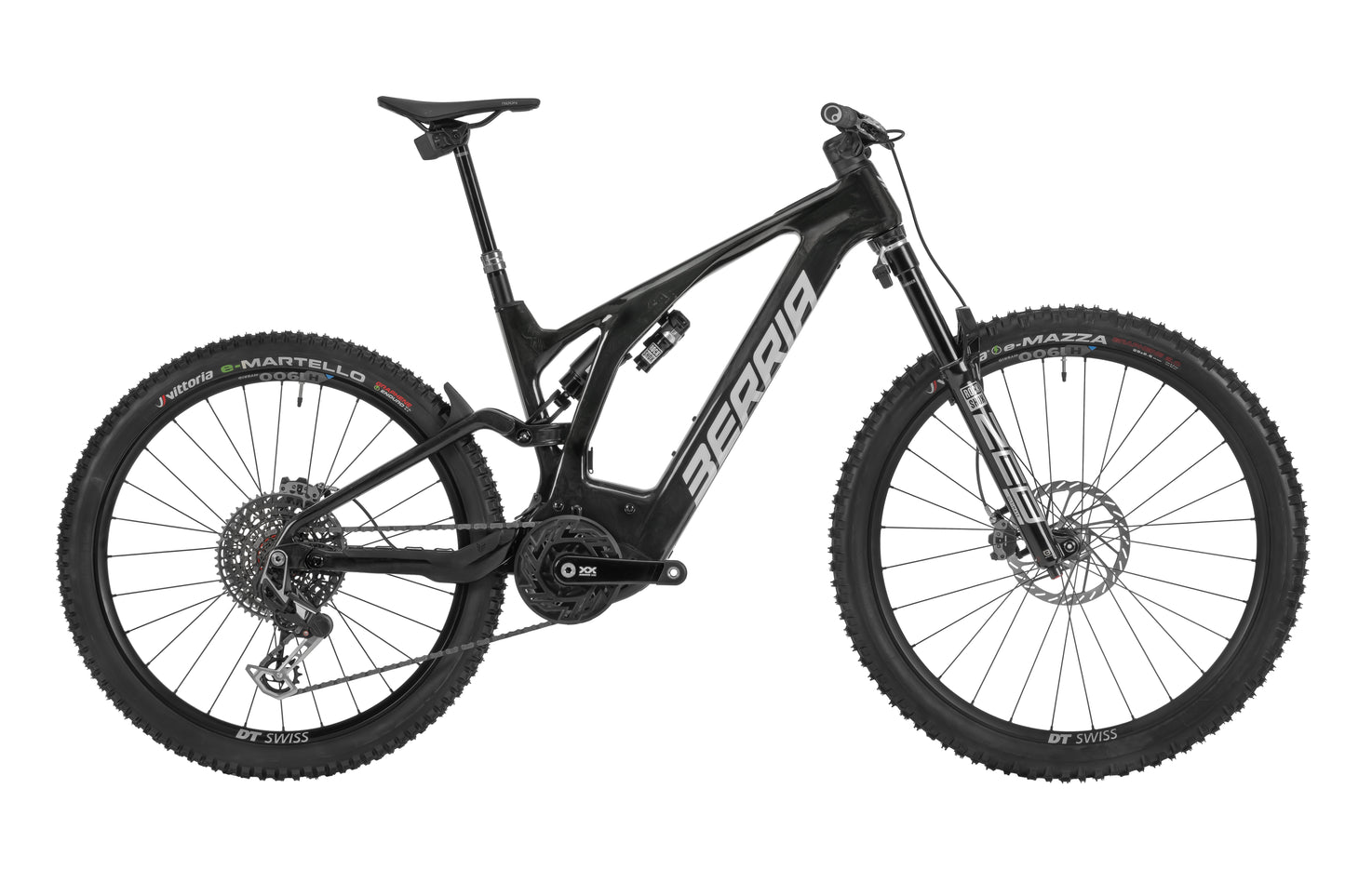

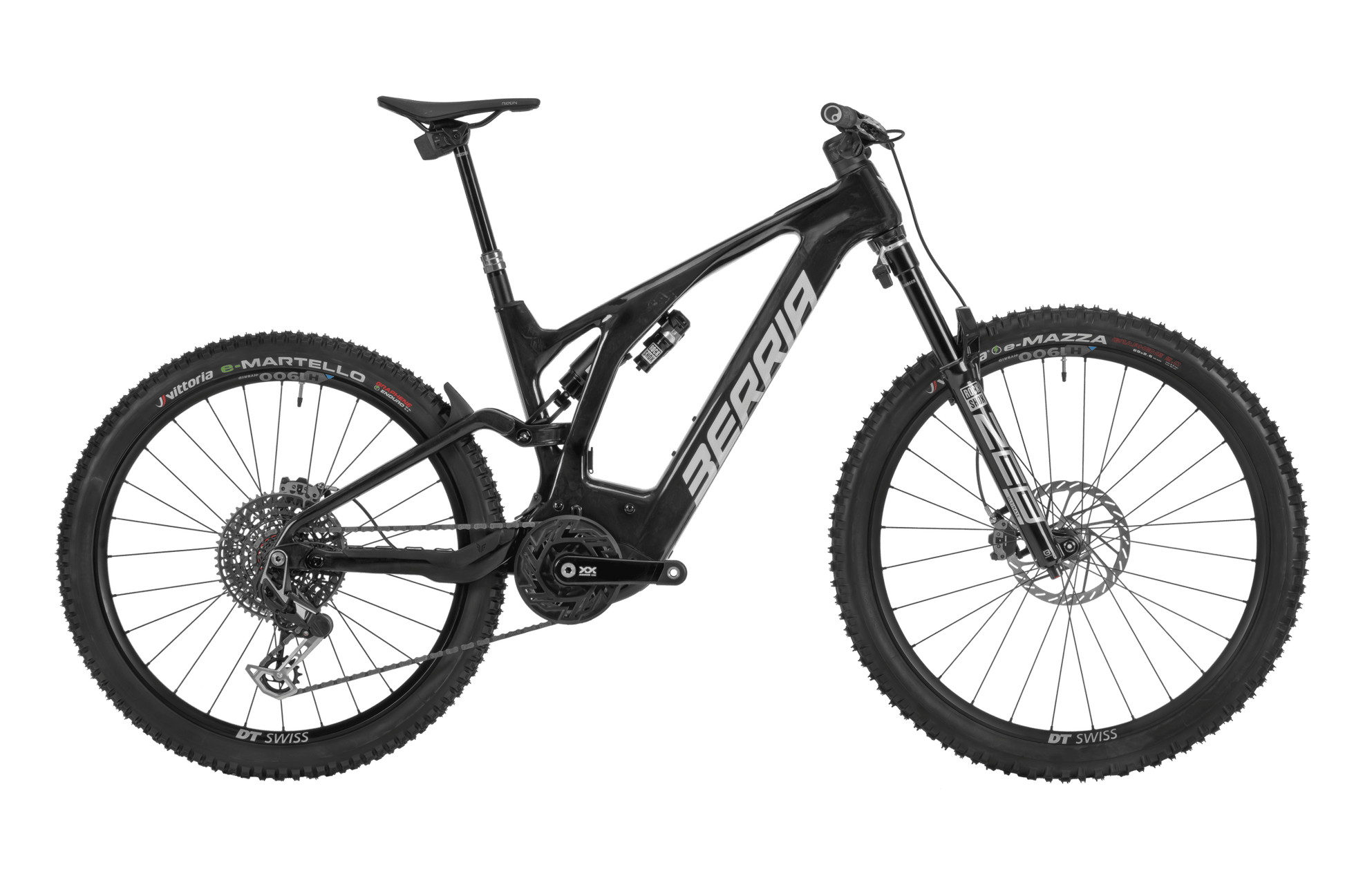

STRATOS BR+ XX AXS FA

STRATOS BR+ XX AXS FA

eBIKES / Montaña

Ir directamente a la información del producto
Y-LINK SUSPENSION SYSTEM
ICS2  FULL INTERNAL CABLE SYSTEM
EPS
HM3X
MACH-R Nanotech
MONOCOQUE

STRATOS BR+ XX AXS FA

STRATOS BR+ XX AXS FA

eBIKES / Montaña

Color

Elige tu color: CUSTOMIZE

Talla

Elige tu talla

*Los componentes que se muestran pueden no corresponder a la imagen de este modelo en concreto.

Ver todos los detalles

Especificaciones

Componentes

  • Horquilla

    RockShox ZEB Ultimate Flight Attendant, Damper Charger 3.1 Flight Attendant W/Butter cups, 15x110mm Maxle Ultimate, Tapered steerer 1,5", Spring Debon Air+ W/ButterCups, Rake 44mm, 38 mm tapered wall aluminium, Gloss Black, 160mm travel

  • Material

    Full carbon fiber HM3X

  • Manillar

    Avanforce CONDOR, Integrated MTB Carbon handlebar, width: 800mm, Backsweep: 7°, Upsweep: 5°, Rise: 20mm, Stem length: 50, 75mm

  • Tija sillín

    SRAM Reverb AXS Dropper post, Aluminum 7075-T6, 0 offset, Ø31,6, 150mm travel

  • Sillín

    Fizik Terra Ridon X5, Steel rails, length: 255mm, width: 145mm

  • Patilla

    Universal Derailleur Hanger

  • Ruedas

    DT Swiss H1900 Spline 29"/27,5", 15x110, Boost 12x148mm, TLR, XD Rear Hub, 6 Bolts, internal width 30mm

  • Cambios Mandos

    EC AXS POD Ultimate Right/Left Bridge W/MMX

  • Cambios Gear

    SRAM XX AXS Eagle T-TYPE, 12s

  • Bielas

    XX Eagle, SRAM Powertrain ISIS Drive Carbon Cranks, length: 165mm

  • Cadena

    SRAM EAGLE 70 T-TYPE, 120 Links

  • Cassette

    CS XS1275 Eagle, T-TYPE, 10-52T

  • Freno

    SRAM Maven Ultimate Stealth, 4 Piston

  • Motor

    SRAM Eagle Powertrain, 680W, 90Nm

  • Batería

    SRAM Eagle Powertrain Full Size, 720WH, Integrated and Slidable

  • Display

    SRAM Eagle Powertrain AXS Bridge Display

  • Cargador

    Eagle Powertrain Charger, EU/UK/US Plug Supplied

  • *Nos reservamos el derecho a modificar la información y los componentes de los productos que aparecen en esta web sin previo aviso, incluido el equipamiento, las especificaciones, modelos, colores y materiales.

Geometría

berria-production/frames/26.01.04/10._STRATOS.png

1

Tubo de sillín

400 mm

2

Tubo horizontal

582 mm

3

Ángulo frontal

64.5°

4

Ángulo del tubo de sillín

76°

5

Distancia entre ejes

1208 mm

6

Vaina

450 mm

7

Tubo frontal

90 mm

8

Caída eje pedalier

-25/-6 mm

9

Trail

131.5 mm

10

Avance horquilla

44 mm

11

Longitud horquilla

576 mm

12

Alcance del cuadro

430 mm

13

Altura del cuadro

610 mm

1

Tubo de sillín

M mm

2

Tubo horizontal

610 mm

3

Ángulo frontal

64.5°

4

Ángulo del tubo de sillín

76°

5

Distancia entre ejes

1239 mm

6

Vaina

450 mm

7

Tubo frontal

105 mm

8

Caída eje pedalier

-25/-6 mm

9

Trail

131.5 mm

10

Avance horquilla

44 mm

11

Longitud horquilla

576 mm

12

Alcance del cuadro

455 mm

13

Altura del cuadro

623 mm

1

Tubo de sillín

L mm

2

Tubo horizontal

650 mm

3

Ángulo frontal

64.5°

4

Ángulo del tubo de sillín

76°

5

Distancia entre ejes

1280 mm

6

Vaina

450 mm

7

Tubo frontal

120 mm

8

Caída eje pedalier

-25/-6 mm

9

Trail

131.5 mm

10

Avance horquilla

44 mm

11

Longitud horquilla

576 mm

12

Alcance del cuadro

490 mm

13

Altura del cuadro

637 mm

Tecnologías

berria-production/technologies/6de25a18-a36b-4a6c-ac2f-855547899893/Y-LINK_895f69d5-fd38-4caf-bd40-2a33b5ef59c8.svg
berria-production/technologies/6de25a18-a36b-4a6c-ac2f-855547899893/Y-LINK_895f69d5-fd38-4caf-bd40-2a33b5ef59c8.svg

"Y-LINK, the custom suspension system for Stratos, develops 160mm of travel and has unsurpassed traction capacity, as well as great handling thanks to the 27.5” tire on the rear wheel. The Y-LINK system damper adjustment is specific to STRATOS kinematics; Anticipating a sensitive, progressive and precise system, it achieves an incredible absorption capacity against large and small impacts together with an exceptional harmony in its operation, transmitting driving confidence and total control when braking. At the same time, the Y-LINK suspension has been developed to ride on all types of terrain and thanks to its neutral Anti-squat, it will allow you to face flat or uphill sections with maximum comfort and dynamism."

berria-production/technologies/ics2/ics2.svg
berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg
berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.

berria-production/technologies/e17d796c-da41-41c9-a7f9-6ecff0a3afcb/HM3X-1.png
berria-production/technologies/e17d796c-da41-41c9-a7f9-6ecff0a3afcb/HM3X-1.png

HM3X carbon features three types of high-modulus carbon fibres: Toray T700 and T800, and Toray T1100G. The inclusion of T1100G fibres improves the golden stiffness-to-weight ratio, making it a perfect material for the highest performance bikes. Our engineers apply these fibres in unique orientations that boost lateral rigidity without sacrificing ride quality and handling.

berria-production/technologies/3fc5e540-4886-4ecb-8acd-1afd0eb1898d/MACH-R_Nanotech_d9b9a3cf-c9d7-47f5-8f3e-1bcf23d98b25.svg
berria-production/technologies/3fc5e540-4886-4ecb-8acd-1afd0eb1898d/MACH-R_Nanotech_d9b9a3cf-c9d7-47f5-8f3e-1bcf23d98b25.svg

To deal with the additional forces and high-frequency vibrations that a motor and battery system exert on a carbon frameset, we use MACH-R Nanotech resin. This special resin bonds the Toray fibres of HM2X carbon together, providing the superior mechanical strength required for an electric motorised frame, improving frame strength, resilience and long-term lifespan.

berria-production/technologies/monocoque/monocoque.svg
berria-production/technologies/monocoque/monocoque.svg

Monocoque technology makes the front triangle in a single piece using a specific curing protocol and internal mold sliders made of different special grade steel. This technology is used to achieve frames where strength, lightness and rigidity prevail.

Talla: S / Color: CUSTOMIZE

10.999,00€
