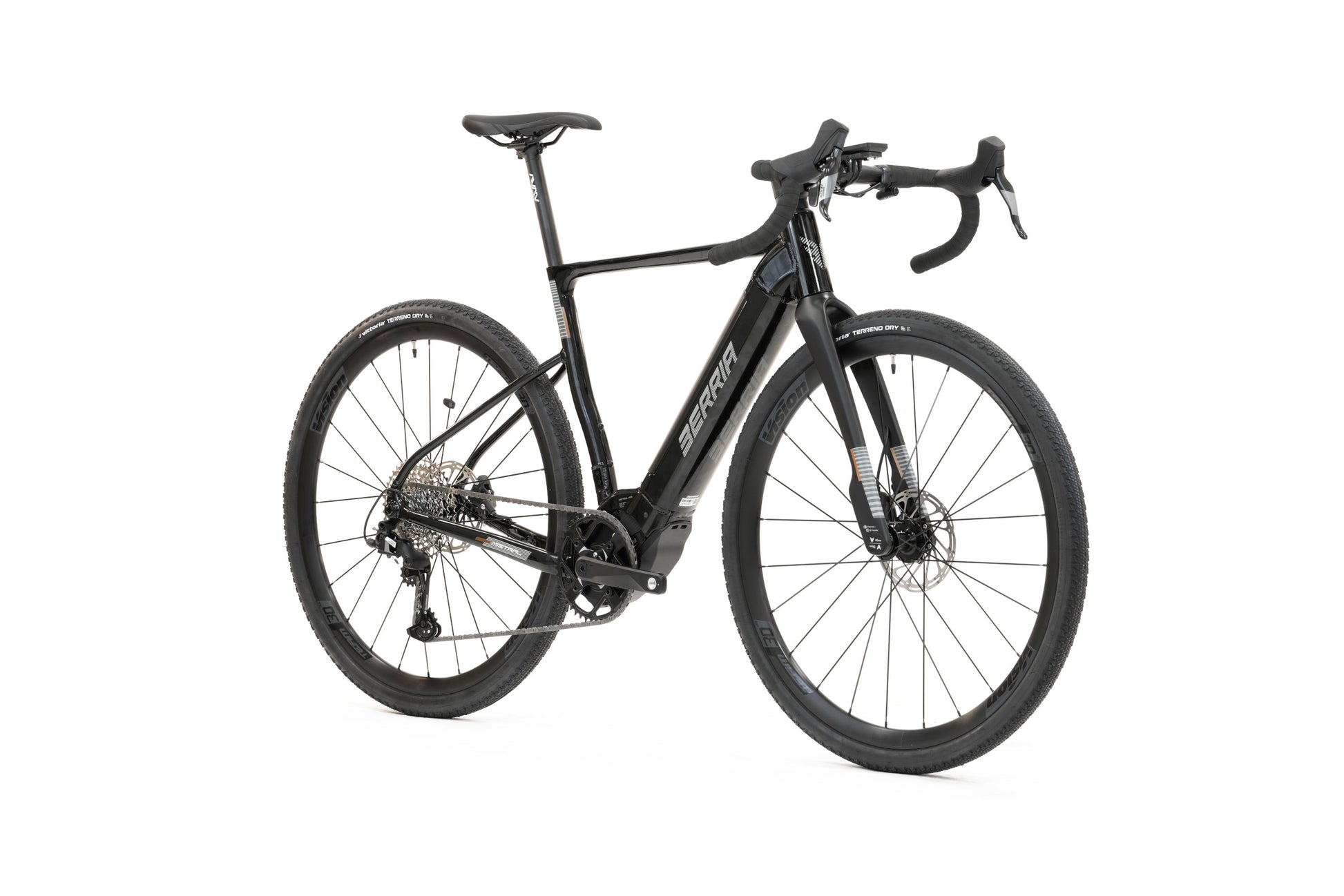

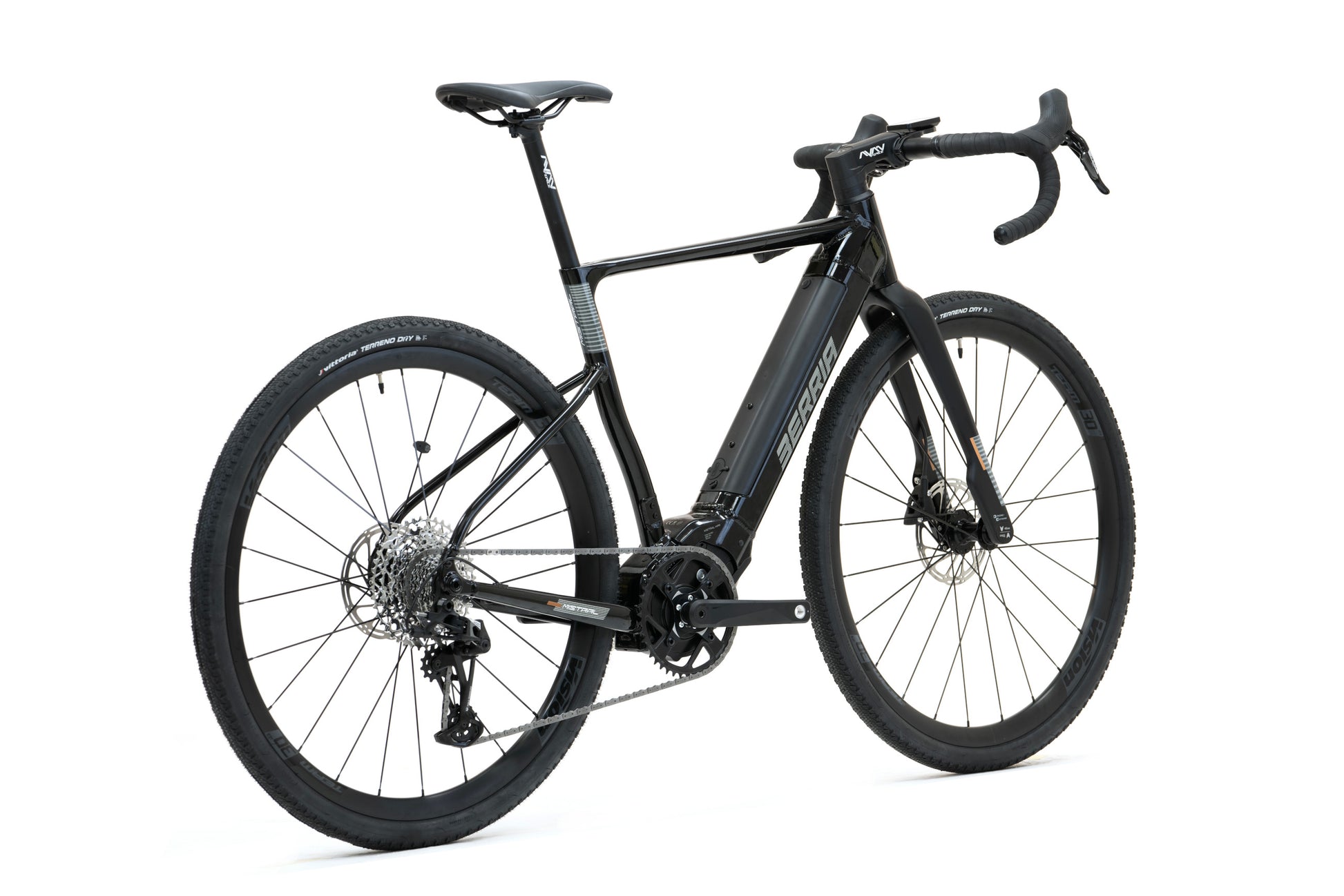

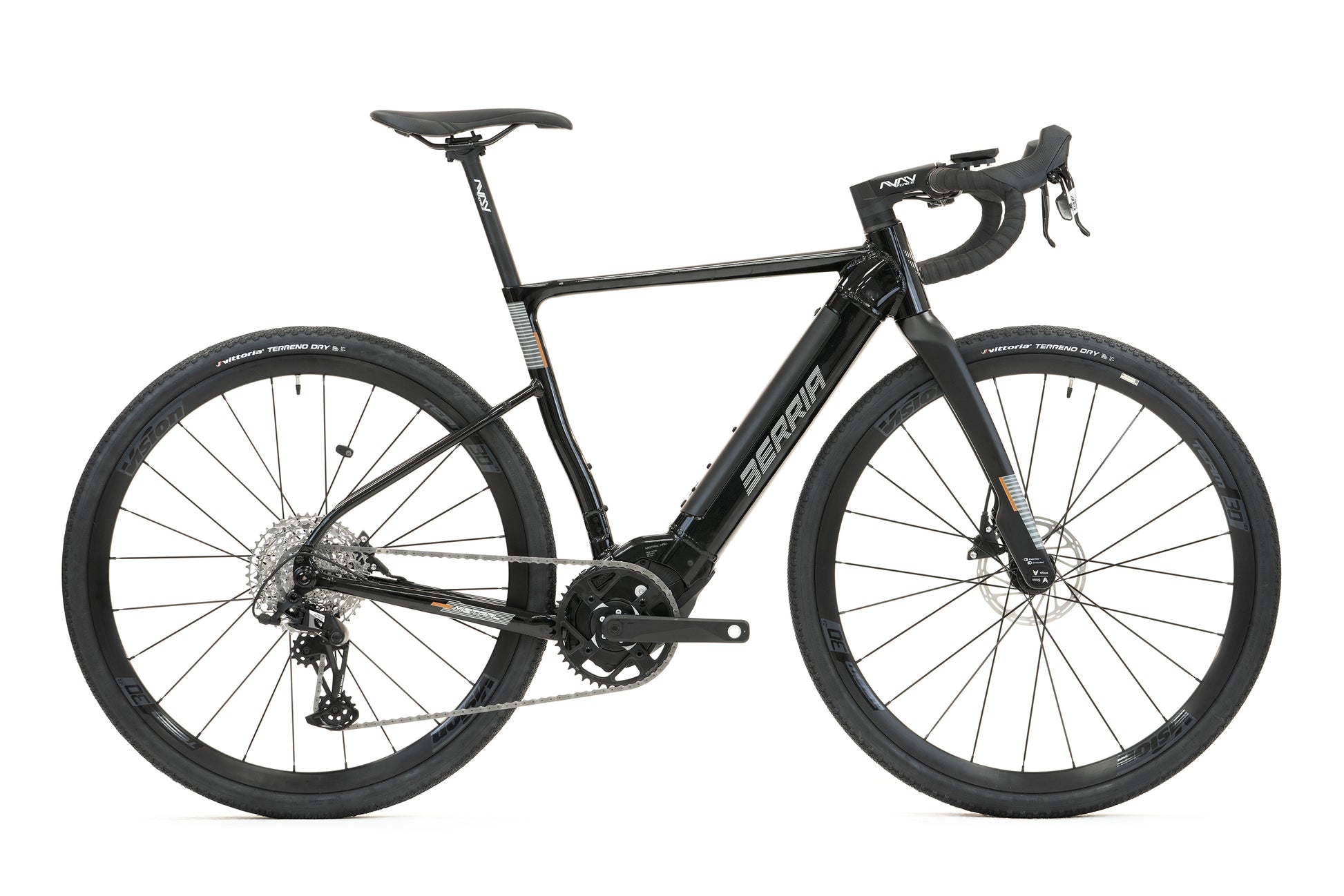

MISTRAL HPR APEX

MISTRAL HPR APEX

eBIKES / eBike

ICS2 FULL INTERNAL CABLE SYSTEM
O2HS OVERSIZED HEADSET
ACTIVE STAY
EPS
TRIPLE MONOCOQUE
HM2X
(ASE) Aero Shape Efficiency

MISTRAL HPR APEX

MISTRAL HPR APEX

eBIKES / eBike

Color

Choose your color: DARK GREY-IRIS

Size

Choose your size

Component configuration

They ensure quality, durability and superior performance on every journey

Wheels

Handlebar

Tyres

*The components that are shown may not correspond to the image of this specific model.

View full details

Specifications

Components

  • Frame

    Mistral HP, Gravel Type 1-2 Geometry BGC, Aluminum 3BS 6061 Hydroforming, HPF Forging, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2" - 1-1/2", Flat Mount 140mm, 700x45c maximum tyre, Thru axle 12x142mm, UDH Standard.

  • Fork

    Allroad EVO, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered , Flat Mount Standard max. 160mm disc , 700x44c maximum tyre, Flip-chip adust 45-51mm fork rake, 405mm axle to crown, Thru axle 12x100mm, weight: 500gr

  • Material

    Aluminum 3BS 6061 Hydroforming

  • Handlebar

    Avanforce 3 Gravel, Alloy 6061, Ø31,8, width: 400, 420, 440mm, weight: 330gr

  • Seatpost

    Avanforce AF3, Aluminum 6061, 0 offset, Ø27,2, length: 350,400mm, weight: 255gr

  • Saddle

    Selle Royal 2058HRN, Steel rails, length: 285mm, width: 145mm, weight: 315gr

  • Seat clamp

    Universal Derailleur Hanger

  • Wheels

    Vision Team 30 AGX, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock, weight: 1920gr.

  • Coverings

    Vittoria Terreno Dry, 40-622, full fold, weight: 698gr

  • Gear Changes

    SRAM EAGLE APEX D1, 12s

  • Derailleur

    SRAM APEX XPLR D1, 12s

  • Cranks

    FSA CK-220/IF Wider MTB Alloy Cranks, 170mm

  • Chain

    CN-M6100, 118LINKS FOR HG 12-SPEED

  • Brake

    SRAM APEX D1 Hydraulic Shift-Brake System

  • Motor

    POLINI EP3+ EVO Tunning BR HYBRID Engine Control Unit , Shift Control Unit, Nominal power 250W - 70Nm, Peak power 500W, Q Factor 137mm, weight 2850g

  • Battery

    POLINI EVO 500Wh 36V 13,8Ah, 2620g

  • Display

    POLINI Color display TFT 3" High-contrast LCD, APP 3 Engine Maps TOURING - DYNAMIC - RACE, 10 features, USB port, Bluetooth comunication, ANT+ comunication, ROAD handlebar support

  • Charger

    Polini EP3 EVO Charger UE 220-240V 3A

  • *We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.

Geometry

S 165-175 cm
M 175-185 cm
L 185-192 cm
XL >192 cm

1

Seat tube

484 mm

2

Horizontal tube

5448 mm

3

Front angle

70.5°

4

Seat tube angle

73.5°

5

Wheelbase

1041 mm

6

Sheath

440 mm

7

Front tube

125 mm

8

Bottom bracket drop

77 mm

9

Trail

79 mm

10

Fork feed

45/50 mm

11

Fork length

405 mm

12

Reach

382 mm

13

Stack

562 mm

1

Seat tube

508 mm

2

Horizontal tube

555.7 mm

3

Front angle

71°

4

Seat tube angle

73.5°

5

Wheelbase

1044.2 mm

6

Sheath

440 mm

7

Front tube

130 mm

8

Bottom bracket drop

77 mm

9

Trail

75 mm

10

Fork feed

45/50 mm

11

Fork length

405 mm

12

Reach

387.1 mm

13

Stack

569.1 mm

1

Seat tube

532 mm

2

Horizontal tube

570.3 mm

3

Front angle

71.5°

4

Seat tube angle

73.5°

5

Wheelbase

1055.2 mm

6

Sheath

440 mm

7

Front tube

150 mm

8

Bottom bracket drop

75 mm

9

Trail

72 mm

10

Fork feed

45/51 mm

11

Fork length

405 mm

12

Reach

396.1 mm

13

Stack

588 mm

1

Seat tube

556 mm

2

Horizontal tube

592.6 mm

3

Front angle

72°

4

Seat tube angle

73.5°

5

Wheelbase

1073.5 mm

6

Sheath

440 mm

7

Front tube

177 mm

8

Bottom bracket drop

75 mm

9

Trail

69 mm

10

Fork feed

45/50 mm

11

Fork length

405 mm

12

Reach

410.3 mm

13

Stack

615.6 mm

Technologies

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.

Our Active Stay Technology increases vertical flexion of the seat stays without compromising the necessary rigidity for a responsive ride.The result is maximised traction and ride compliance over the toughest terrain, with direct transfer of power translating into more speed.

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase.During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.

The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.

HM2X carbon is engineered using T700 and T800 Toray intermediate-modulus fibres.Used strategically across key frame areas, this dual blend of carbon material is laid up to produce an optimal combination of stiffness while also prioritising comfort.

Aero Shape Efficiency represents the most advanced calculus in modern road bicycles. The subtle balance between competition's needs such as a light structure, low coeficient drag profiles and an excellent dynamic behavior. Computational dynamics have led us to design new sophisticated sections and perfectly integrated profiles between frame, fork, wheels and the cockpit, leading to a conceived single assembly in order to achieve a higher level of performance.

Size: S / Color: DARK GREY-IRIS

4.299,00€
