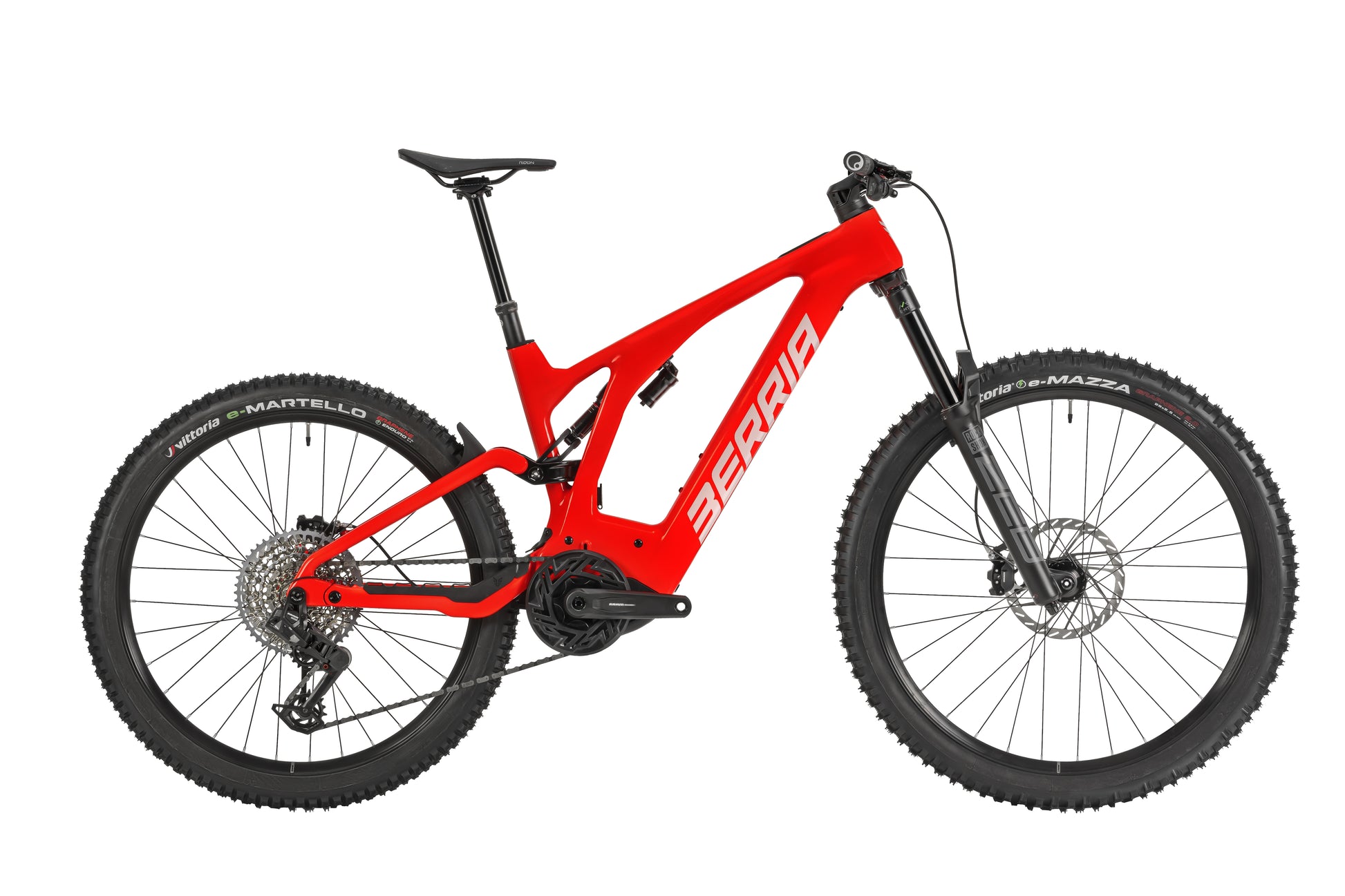

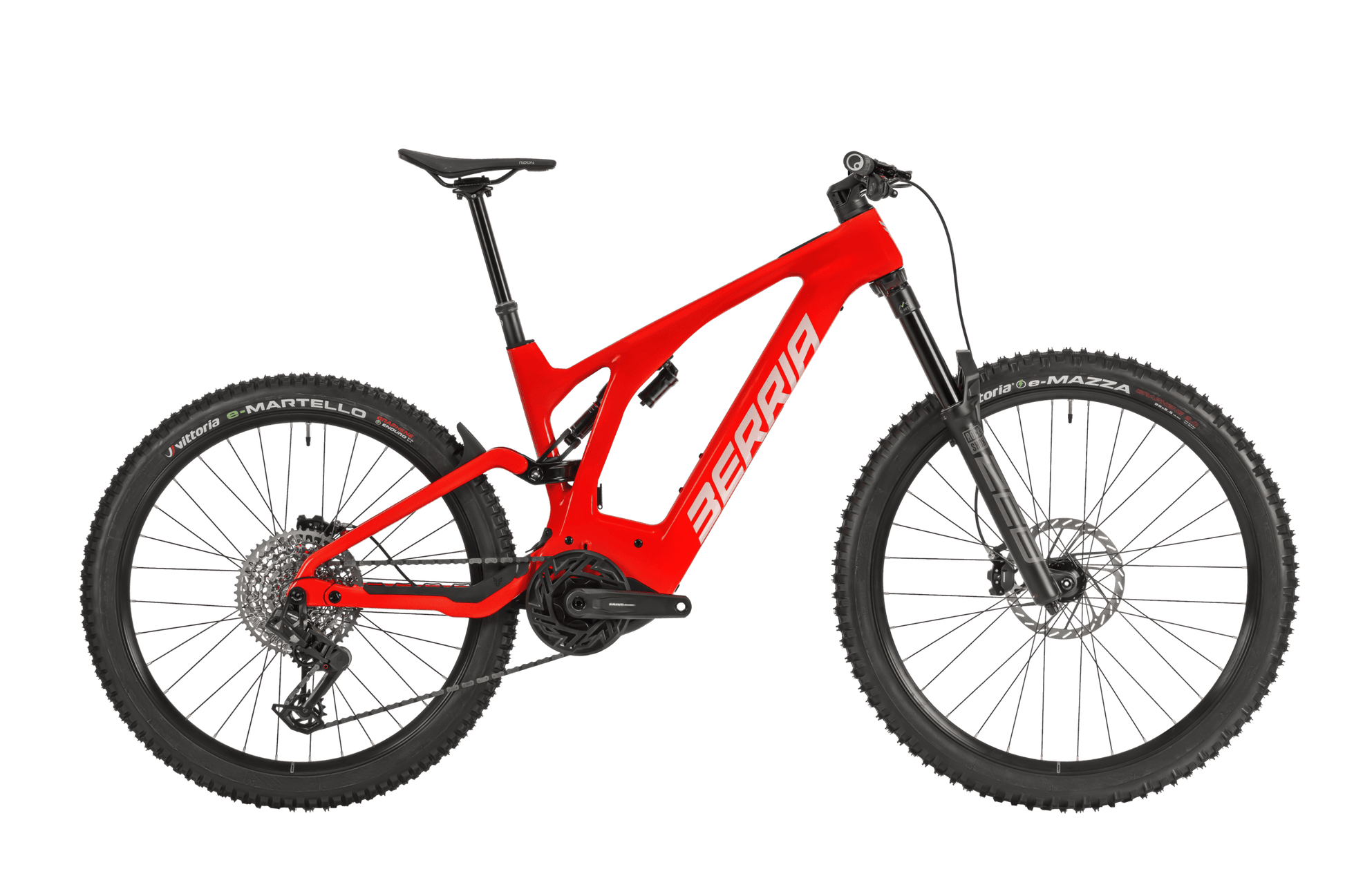

STRATOS BR+ S1000 AXS

Name: STRATOS BR+ S1000 AXS
Brand: Berria Bikes
SKU: PT26.37.01.CS.S
Price: 7499.0 EUR
Availability: InStock

eBIKES / Montaña

STRATOS BR+ S1000 AXS

eBIKES / Montaña

Color

Choose your color: CUSTOMIZE

Size

Choose your size

S 155-170 cm

M 170-185 cm

L 180-195 cm

*The components that are shown may not correspond to the image of this specific model.

View full details

Specifications

Components

Fork

RockShox ZEB Base, 15x110mm Maxle Stealth, Tapered steerer, Debon Air + Dual Position Air , Rake 44mm, 38mm tapered wall aluminium, Diffusion Black, 160mm travel
Material

Full carbon fiber HM3X
Handlebar

Avanforce AF2 MTB, Forged Aluminum 6061, Ø31,8mm, width: 780mm, Backsweep: 6°, Upsweep: 5°, Rise: 20mm
Seatpost

TRANZX JD-YSPJL Aluminum 7075-T6, 0 offset, Ø31,6, 150mm travel
Saddle

Fizik Terra Ridon X5, Steel rails, length: 255mm, width: 145mm
Seat clamp

Universal Derailleur Hanger
Wheels

Mavic E-Crossride 29"/27,5", 15x110, Boost 12x148mm, TLR, 6 Bolts, internal width 30mm
Control Changes

EC AXS POD Right/Left Bridge W/MMX
Gear Changes

SRAM S1000 AXS Eagle T-TYPE, 12s
Cranks

S1000 Eagle, SRAM Powertrain ISIS Drive Cranks, length: 165mm
Chain

SRAM EAGLE 70 T-TYPE, 120 Links
Cassette

CS XS1275 Eagle, T-TYPE, 10-52T
Brake

SRAM Maven Base Stealth, 4 Piston
Motor

SRAM Eagle Powertrain, 680W, 90Nm
Battery

SRAM Eagle Powertrain Full Size, 720WH, Integrated and Slidable
Display

SRAM Eagle Powertrain AXS Bridge Display
Charger

Eagle Powertrain Charger, EU/UK/US Plug Supplied
*We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.

Geometry

berria-production/frames/26.01.04/10._STRATOS.png

S 155-170 cm

M 170-185 cm

L 180-195 cm

Seat tube

400 mm

Horizontal tube

582 mm

Front angle

64.5°

Seat tube angle

76°

Wheelbase

1208 mm

Sheath

450 mm

Front tube

90 mm

Bottom bracket drop

-25/-6 mm

Trail

131.5 mm

Fork feed

44 mm

Fork length

576 mm

Reach

430 mm

Stack

610 mm

Seat tube

M mm

Horizontal tube

610 mm

Front angle

64.5°

Seat tube angle

76°

Wheelbase

1239 mm

Sheath

450 mm

Front tube

105 mm

Bottom bracket drop

-25/-6 mm

Trail

131.5 mm

Fork feed

44 mm

Fork length

576 mm

Reach

455 mm

Stack

623 mm

Seat tube

L mm

Horizontal tube

650 mm

Front angle

64.5°

Seat tube angle

76°

Wheelbase

1280 mm

Sheath

450 mm

Front tube

120 mm

Bottom bracket drop

-25/-6 mm

Trail

131.5 mm

Fork feed

44 mm

Fork length

576 mm

Reach

490 mm

Stack

637 mm

	S	M	L
	155-170 cm	170-185 cm	180-195 cm
1 Seat tube	400 mm	M mm	L mm
2 Horizontal tube	582 mm	610 mm	650 mm
3 Front angle	64.5°	64.5°	64.5°
4 Seat tube angle	76°	76°	76°
5 Wheelbase	1208 mm	1239 mm	1280 mm
6 Sheath	450 mm	450 mm	450 mm
7 Front tube	90 mm	105 mm	120 mm
8 Bottom bracket drop	-25/-6 mm	-25/-6 mm	-25/-6 mm
9 Trail	131.5 mm	131.5 mm	131.5 mm
10 Fork feed	44 mm	44 mm	44 mm
11 Fork length	576 mm	576 mm	576 mm
12 Reach	430 mm	455 mm	490 mm
13 Stack	610 mm	623 mm	637 mm

Technologies

"Y-LINK, the custom suspension system for Stratos, develops 160mm of travel and has unsurpassed traction capacity, as well as great handling thanks to the 27.5” tire on the rear wheel. The Y-LINK system damper adjustment is specific to STRATOS kinematics; Anticipating a sensitive, progressive and precise system, it achieves an incredible absorption capacity against large and small impacts together with an exceptional harmony in its operation, transmitting driving confidence and total control when braking. At the same time, the Y-LINK suspension has been developed to ride on all types of terrain and thanks to its neutral Anti-squat, it will allow you to face flat or uphill sections with maximum comfort and dynamism."

berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.

berria-production/technologies/e17d796c-da41-41c9-a7f9-6ecff0a3afcb/HM3X-1.png

HM3X carbon features three types of high-modulus carbon fibres: Toray T700 and T800, and Toray T1100G. The inclusion of T1100G fibres improves the golden stiffness-to-weight ratio, making it a perfect material for the highest performance bikes. Our engineers apply these fibres in unique orientations that boost lateral rigidity without sacrificing ride quality and handling.

berria-production/technologies/3fc5e540-4886-4ecb-8acd-1afd0eb1898d/MACH-R_Nanotech_d9b9a3cf-c9d7-47f5-8f3e-1bcf23d98b25.svg

To deal with the additional forces and high-frequency vibrations that a motor and battery system exert on a carbon frameset, we use MACH-R Nanotech resin. This special resin bonds the Toray fibres of HM2X carbon together, providing the superior mechanical strength required for an electric motorised frame, improving frame strength, resilience and long-term lifespan.

berria-production/technologies/monocoque/monocoque.svg

Monocoque technology makes the front triangle in a single piece using a specific curing protocol and internal mold sliders made of different special grade steel. This technology is used to achieve frames where strength, lightness and rigidity prevail.

Size: S / Color: CUSTOMIZE

7.499,00€
