BELADOR ELITE 105

BELADOR ELITE 105

Route

temp/PT26_10_01_XX_Belador Elite 105.jpg
temp/PT26_10_01_XX_Belador Elite 105-02.jpg
temp/PT26_10_01_XX_Belador Elite 105-03.jpg
Active Stay
ICS2 FULL INTERNAL CABLE SYSTEM
O2HS OVERSIZED HEADSET
EPS
HM2X
TRIPLE MONOCOQUE

BELADOR ELITE 105

BELADOR ELITE 105

Route

Couleur

Choisissez votre couleur: WHITE PEARL-Collection

Taille

Choisissez votre taille

*Les composants illustrés peuvent ne pas correspondre à l'image de ce modèle spécifique.

Afficher tous les détails

Spécifications

Composants

  • Fourche

    Belador Blade 5 full carbon fork, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered head tube compatible, Flat Mount System brake, 700x34c maximum tyre, Thru axle 12x100mm Speed release standard

  • Matériau

    Full carbon fiber HM2X

  • Cintre

    Avanforce AF3, Alloy 6061, width: 400, 420, 440mm

  • Tige de selle

    Belador 5 SP, UD Carbon, 15 mm offset, ISP technology

  • Selle

    Selle Royal 2058HRN, Steel rails, length: 285mm, width: 145mm

  • Patte de dérailleur

    Direct Attachment

  • Roues

    Vision Team 30, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock

  • Dérailleur avant

    SHIMANO 105 DISC BRAKE, ST-R7120 DUAL CONTROL

  • Dérailleur arrière

    SHIMANO 105, RD-R7100, 12s

  • Manettes

    SHIMANO 105, FD-R7100, 12s

  • Pédalier

    SHIMANO 105, FC-R7100 Crankset, 50x34T, 170-172,5-175mm

  • Chaîne

    CN-M6100, 118 Links

  • Cassette

    CS-R7100, 11-34T

  • Roulements

    BB86 Token

  • Frein

    SHIMANO 105 BR-R7120, Hydraulic Disc

  • *Nous nous réservons le droit de modifier les informations et les composants des produits qui apparaissent sur ce site Web sans préavis, y compris les équipements, les spécifications, les modèles, les couleurs et les matériaux.

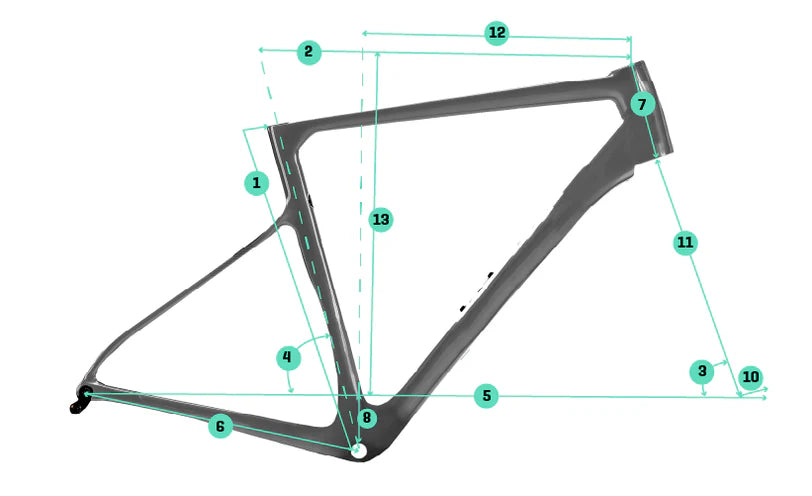

Géométrie

berria-production/frames/26.01.01/2._BELADOR_ELITE.png
51 155-165 cm
53 165-175 cm
55 175-185 cm
57 185-192 cm
59 >192 cm

1

Tube de selle

435 mm

2

Tube horizontal

514 mm

3

Angle avant

71°

4

Angle du tube de selle

75.1°

5

Empattement

965 mm

6

Cosse

403 mm

7

Tube avant

125 mm

8

Patte de fixation du pédalier

74 mm

9

Trail

72.7 mm

10

Avance de la fourche

42 mm

11

Longueur de la fourche

370 mm

12

Reach

368 mm

13

Stack

526 mm

1

Tube de selle

475 mm

2

Tube horizontal

533 mm

3

Angle avant

71.5°

4

Angle du tube de selle

74.7°

5

Empattement

980 mm

6

Cosse

403 mm

7

Tube avant

141 mm

8

Patte de fixation du pédalier

72 mm

9

Trail

69.5 mm

10

Avance de la fourche

42 mm

11

Longueur de la fourche

370 mm

12

Reach

382 mm

13

Stack

541 mm

1

Tube de selle

505 mm

2

Tube horizontal

551 mm

3

Angle avant

72°

4

Angle du tube de selle

74.3°

5

Empattement

993 mm

6

Cosse

405 mm

7

Tube avant

157 mm

8

Patte de fixation du pédalier

72 mm

9

Trail

66.3 mm

10

Avance de la fourche

42 mm

11

Longueur de la fourche

370 mm

12

Reach

392 mm

13

Stack

558 mm

1

Tube de selle

535 mm

2

Tube horizontal

569 mm

3

Angle avant

72.5°

4

Angle du tube de selle

73.9°

5

Empattement

1003 mm

6

Cosse

405 mm

7

Tube avant

176 mm

8

Patte de fixation du pédalier

72 mm

9

Trail

63.2 mm

10

Avance de la fourche

42 mm

11

Longueur de la fourche

370 mm

12

Reach

401 mm

13

Stack

578 mm

1

Tube de selle

568 mm

2

Tube horizontal

589 mm

3

Angle avant

73°

4

Angle du tube de selle

73.5°

5

Empattement

1015 mm

6

Cosse

405 mm

7

Tube avant

193 mm

8

Patte de fixation du pédalier

72 mm

9

Trail

60 mm

10

Avance de la fourche

42 mm

11

Longueur de la fourche

370 mm

12

Reach

412 mm

13

Stack

596 mm

Technologies

berria-production/technologies/76e34a9e-0bb6-494d-b377-c68fdda7de0a/ACTIVE_STAY_45ff7522-ad77-4a68-812a-7262f923ac0e.png
berria-production/technologies/76e34a9e-0bb6-494d-b377-c68fdda7de0a/ACTIVE_STAY_45ff7522-ad77-4a68-812a-7262f923ac0e.png

Our Active Stay Technology increases vertical flexion of the seat stays without compromising the necessary rigidity for a responsive ride.The result is maximised traction and ride compliance over the toughest terrain, with direct transfer of power translating into more speed.
berria-production/technologies/ics2/ics2.svg
berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.
berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg
berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg

The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.
berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg
berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.
berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg
berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg

HM2X carbon is engineered using T700 and T800 Toray intermediate-modulus fibres. Used strategically across key frame areas, this dual blend of carbon material is laid up to produce an optimal combination of stiffness while also prioritising comfort.
berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg
berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg

The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.

Taille: 51 / Couleur: WHITE PEARL-Collection

2.399,00€
