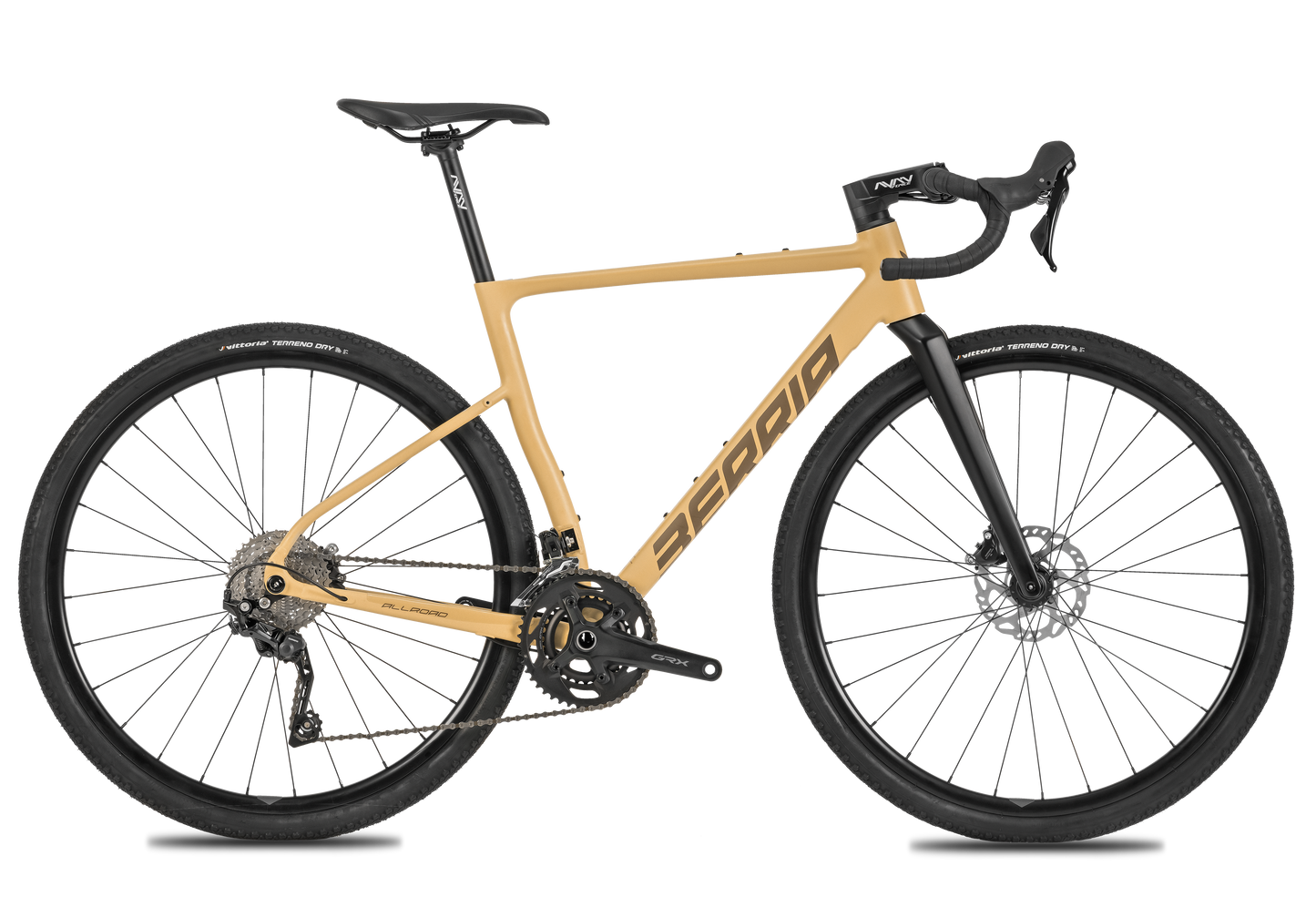

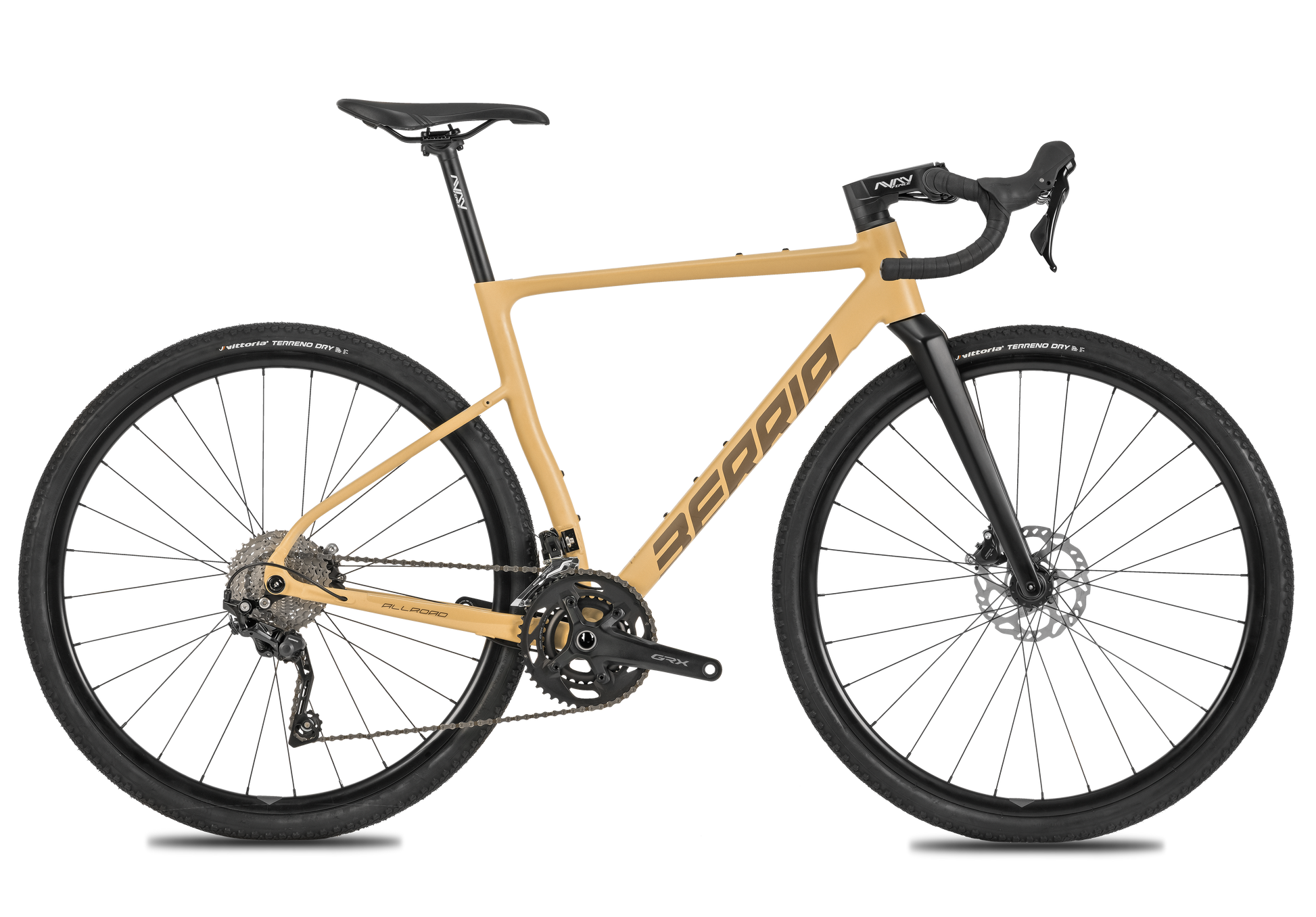

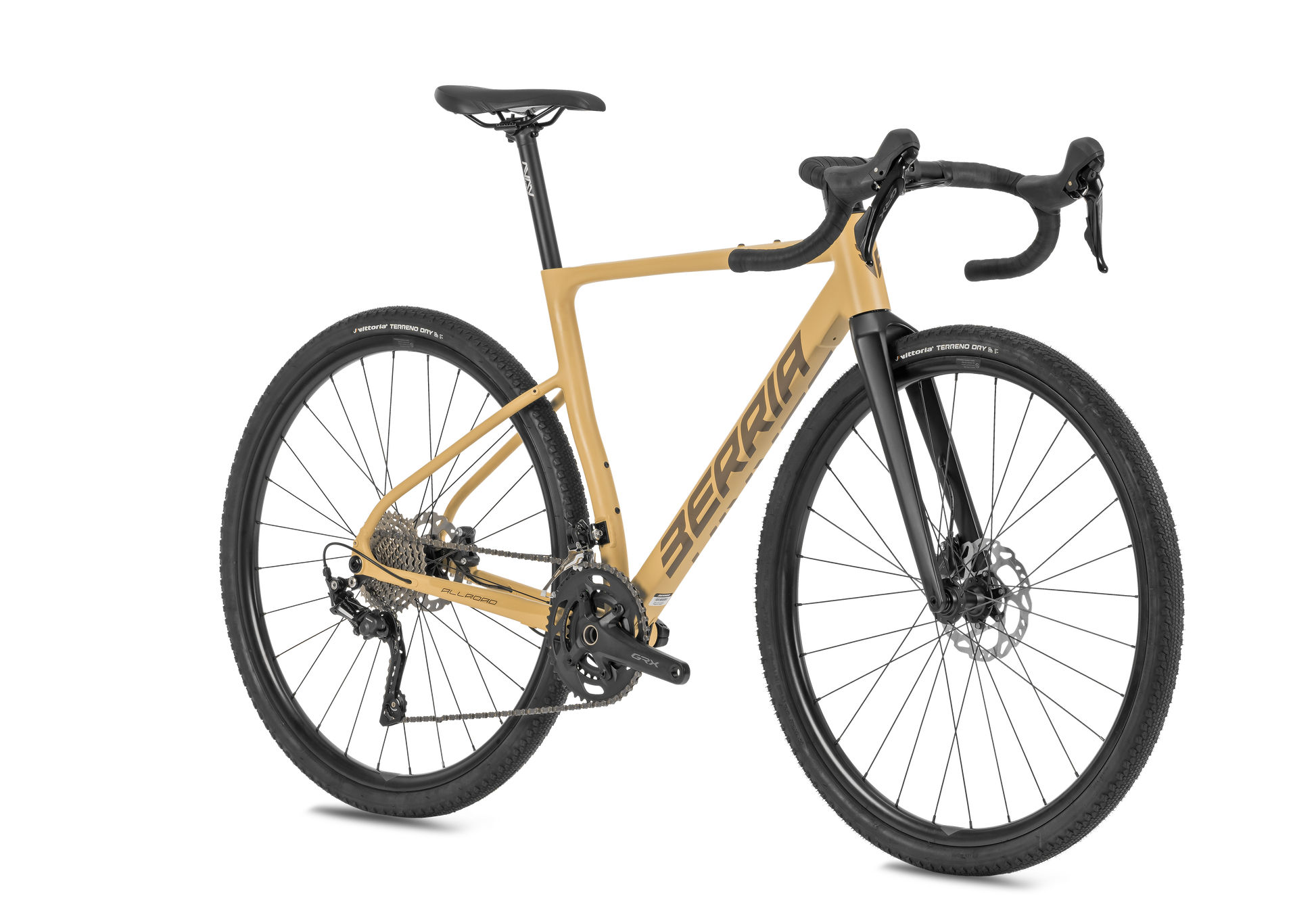

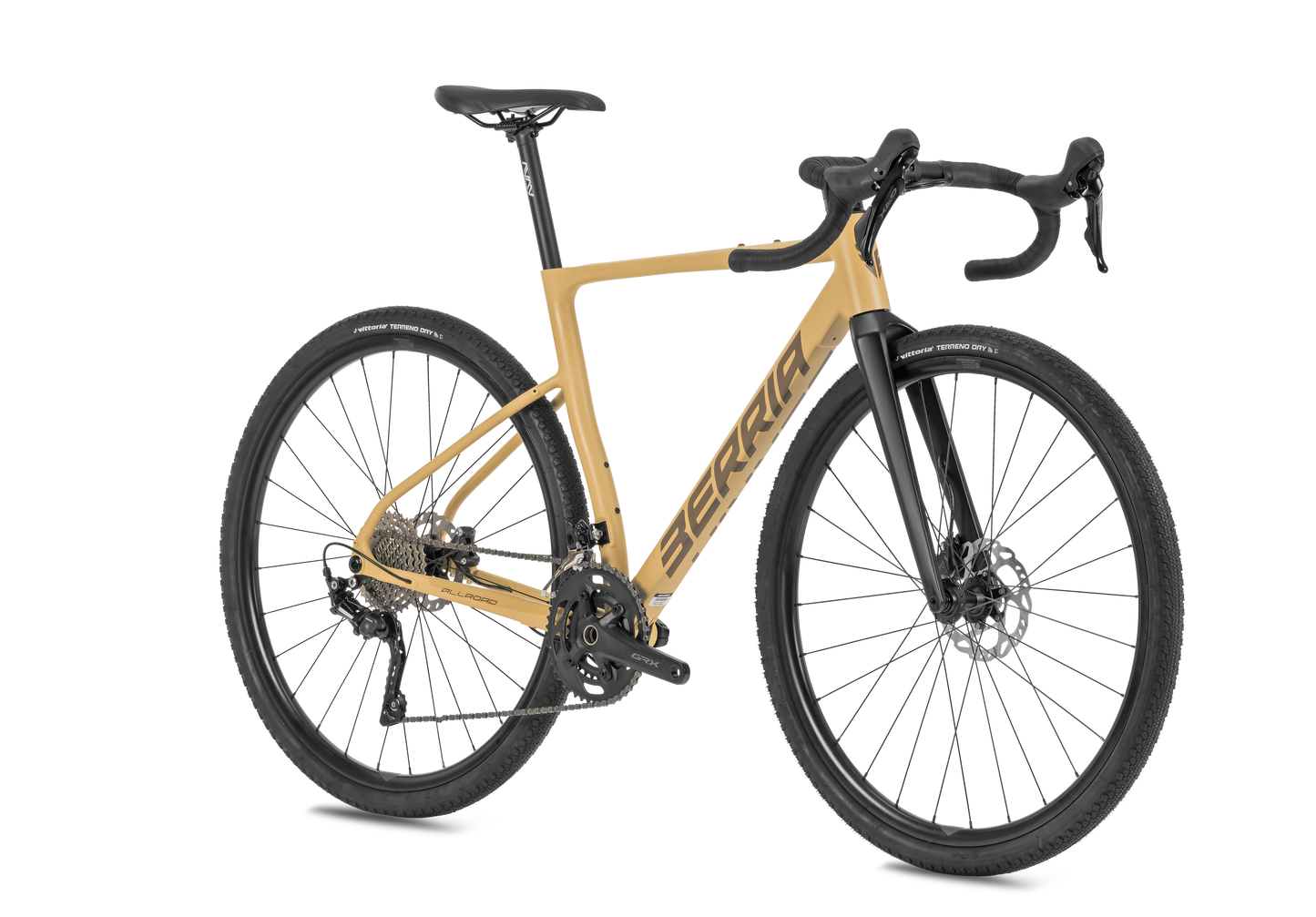

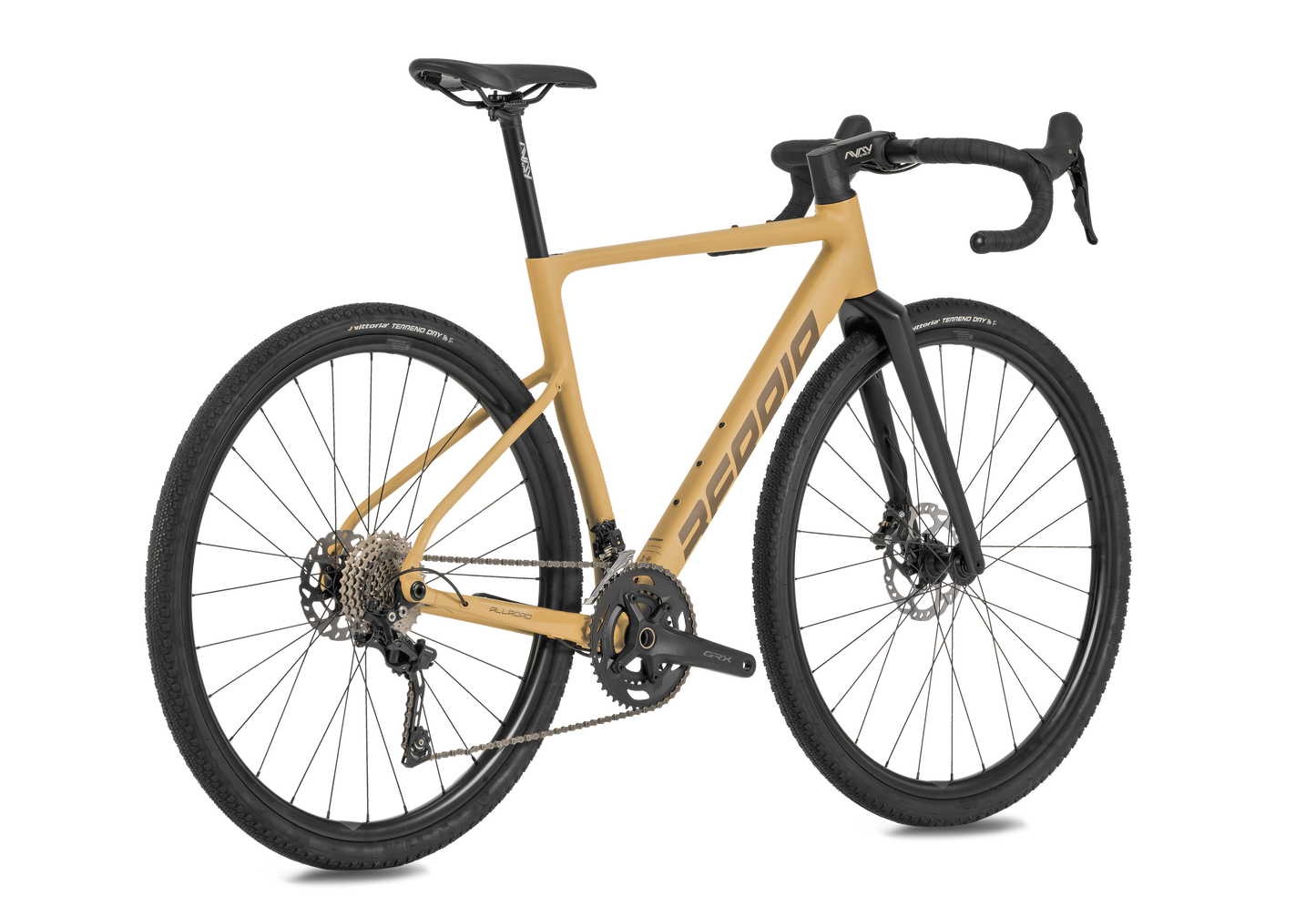

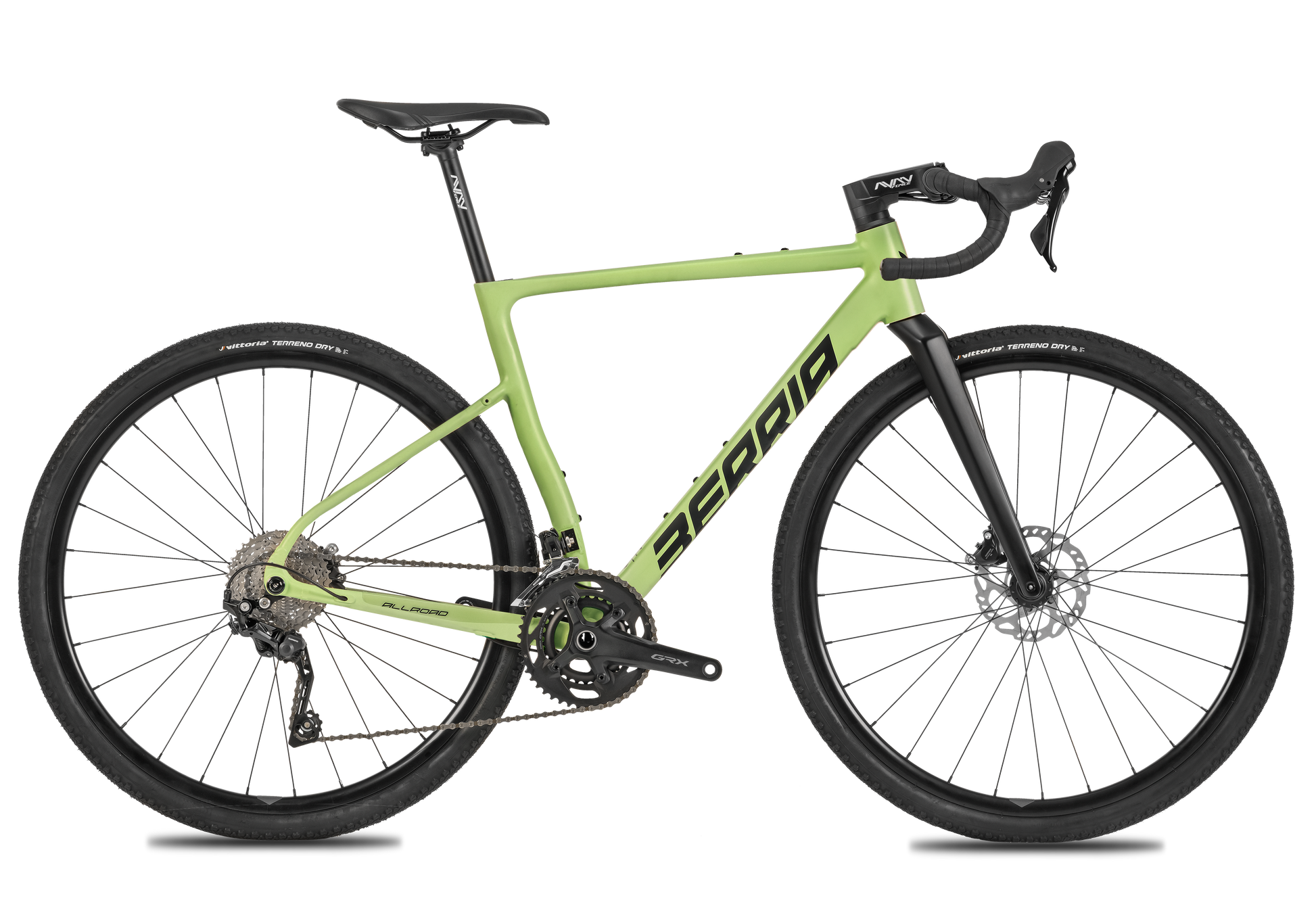

ALLROAD ADV GRX400

ALLROAD ADV GRX400

Gravel

products/1e6647fe-e39f-488d-8c54-b53e0a27e9a3/ALLROAD ADV GRX400.png
products/1e6647fe-e39f-488d-8c54-b53e0a27e9a3/PT26.09.01.S1.L-2.png
products/1e6647fe-e39f-488d-8c54-b53e0a27e9a3/PT26.09.01.S1.L-3.png
products/541e7487-8c5c-40c2-922b-6dadb912ca94/PT26.09.01.S2.L-1.png
ALUMINUM 3BS
ICS2 FULL INTERNAL CABLE SYSTEM
O2HS OVERSIZED HEADSET
HP FORGED

ALLROAD ADV GRX400

ALLROAD ADV GRX400

Gravel

Color

Elige tu color: DESERT STORM-Collection

Color Collection

Talla

Elige tu talla

*Los componentes que se muestran pueden no corresponder a la imagen de este modelo en concreto.

Ver todos los detalles

Especificaciones

Componentes

  • Horquilla

    Allroad EVO 3, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered , Flat Mount Standard max. 160mm disc , 700x50c maximum tyre, 51mm fork rake, 395mm axle to crown, Thru axle 12x100mm

  • Material

    Aluminum 3BS 6061 Hydroforming

  • Manillar

    Avanforce 3 Gravel, Alloy 6061, Ø31,8, width: 400, 420, 440mm

  • Tija sillín

    Avanforce AF3, Aluminum 6061, 0 offset, Ø27,2, length: 350, 400mm

  • Sillín

    Selle Royal 2058HRN, Steel rails, length: 285mm, width: 145mm

  • Patilla

    Universal Derailleur Hanger

  • Ruedas

    Avanforce Sniper24 700C, 12x100, Thru Axle 12x142mm, SH11 Rear Hub, Center Lock, internal width 24mm

  • Cambios Mandos

    SHIMANO GRX400, ST-RX400, 10s

  • Cambios Gear

    SHIMANO GRX400, RD-RX400, 10s

  • Desviador

    SHIMANO GRX400, FD-RX400, 10s

  • Bielas

    SHIMANO GRX FC-RX600-10, Crankset 46/30T, 170-172,5-175mm

  • Cadena

    CN-HG54, 116 Links

  • Cassette

    CS-HG62-10, 11-36T

  • Bujes

    BB86 Token

  • Freno

    SHIMANO BR-RX400, Hydraulic Disc Brake

  • *Nos reservamos el derecho a modificar la información y los componentes de los productos que aparecen en esta web sin previo aviso, incluido el equipamiento, las especificaciones, modelos, colores y materiales.

Geometría

berria-production/frames/26.01.14/7._ALLROAD_HPR.png
XS 155-165 cm
S 165-175 cm
M 175-185 cm
L 185-192 cm
XL >192 cm

1

Tubo de sillín

460 mm

2

Tubo horizontal

525.1 mm

3

Ángulo frontal

70°

4

Ángulo del tubo de sillín

74°

5

Distancia entre ejes

1006.5 mm

6

Vaina

416 mm

7

Tubo frontal

100 mm

8

Caída eje pedalier

77 mm

9

Trail

82 mm

10

Avance horquilla

45/51 mm

11

Longitud horquilla

405 mm

12

Alcance del cuadro

371.4 mm

13

Altura del cuadro

535.9 mm

1

Tubo de sillín

484 mm

2

Tubo horizontal

542.4 mm

3

Ángulo frontal

70.5°

4

Ángulo del tubo de sillín

73.75°

5

Distancia entre ejes

1018.1 mm

6

Vaina

416 mm

7

Tubo frontal

125 mm

8

Caída eje pedalier

77 mm

9

Trail

78.7 mm

10

Avance horquilla

45/51 mm

11

Longitud horquilla

405 mm

12

Alcance del cuadro

378.37 mm

13

Altura del cuadro

561.5 mm

1

Tubo de sillín

508 mm

2

Tubo horizontal

555 mm

3

Ángulo frontal

71°

4

Ángulo del tubo de sillín

73.5°

5

Distancia entre ejes

1023.9 mm

6

Vaina

416 mm

7

Tubo frontal

130 mm

8

Caída eje pedalier

75 mm

9

Trail

75.3 mm

10

Avance horquilla

45/51 mm

11

Longitud horquilla

405 mm

12

Alcance del cuadro

387.1 mm

13

Altura del cuadro

566.2 mm

1

Tubo de sillín

532 mm

2

Tubo horizontal

570 mm

3

Ángulo frontal

71.5°

4

Ángulo del tubo de sillín

73.5°

5

Distancia entre ejes

1035 mm

6

Vaina

416 mm

7

Tubo frontal

150 mm

8

Caída eje pedalier

75 mm

9

Trail

72 mm

10

Avance horquilla

45/51 mm

11

Longitud horquilla

405 mm

12

Alcance del cuadro

396.1 mm

13

Altura del cuadro

587 mm

1

Tubo de sillín

556 mm

2

Tubo horizontal

592.4 mm

3

Ángulo frontal

72°

4

Ángulo del tubo de sillín

73.5°

5

Distancia entre ejes

1053 mm

6

Vaina

416 mm

7

Tubo frontal

177 mm

8

Caída eje pedalier

75 mm

9

Trail

68.7 mm

10

Avance horquilla

45/51 mm

11

Longitud horquilla

405 mm

12

Alcance del cuadro

410.3 mm

13

Altura del cuadro

614 mm

Tecnologías

technologies/3ecafc71-5b06-45c9-87b2-40549fe3019b/ALUMINIUM_6dfda451-b332-4d9c-ab49-1c66a44cb78e.png
technologies/3ecafc71-5b06-45c9-87b2-40549fe3019b/ALUMINIUM_6dfda451-b332-4d9c-ab49-1c66a44cb78e.png

The 3BS technique is based on the hydroforming process. The tubes are pressed and then pressurized to achieve variable wall thicknesses along the span. The technology ensures a good stiffness to strength ratio without compromising the weight of the final product.

berria-production/technologies/ics2/ics2.svg
berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.
berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg
berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg

The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.
technologies/e67373da-64c1-4f77-9d21-94dd4e6ac400/HP FORGED-1.png
technologies/e67373da-64c1-4f77-9d21-94dd4e6ac400/HP FORGED-1.png

The HPF (High Pressure Forging) technology is able to mold the aluminum alloy into complex shapes achieving great mechanical performance. Berria uses this key tech in bicycle parts that need strength and resiliance such as motor mounts and dropouts.

Talla: XS / Color: DESERT STORM-Collection

1.599,00€
