MAKO GT PRO+ EAGLE 90

MAKO GT PRO+ EAGLE 90

eBIKES / eBike

Color

Elige tu color: DARK GREY-Collection

Color Collection

Talla

Elige tu talla

*Los componentes que se muestran pueden no corresponder a la imagen de este modelo en concreto.

Ver todos los detalles

Especificaciones

Componentes

  • Horquilla

    RockShox ZEB Base, 15x110mm Maxle Stealth, Tapered steerer, Debon Air + Dual Position Air , Rake 44mm, 38mm tapered wall aluminium, Diffusion Black, 160mm travel

  • Material

    Full carbon fiber HM2X

  • Manillar

    Avanforce AF2 MTB, Forged Aluminum 6061, Ø31,8mm, width: 780mm, Backsweep: 6°, Upsweep: 5°, Rise: 20mm

  • Tija sillín

    TRANZX JD-YSPJL Aluminum 7075-T6, 0 offset, Ø31,6, 150mm travel

  • Sillín

    Fizik Terra Ridon X5, Steel rails, length: 255mm, width: 145mm

  • Patilla

    Universal Derailleur Hanger

  • Ruedas

    Vision NS SC30i 29", 15x110, Boost 12x148mm, TLR, XD Rear Hub, 6 Bolts, internal width 30mm

  • Cambios Mandos

    SRAM Eagle 90, 1 Click shifter, 12s

  • Cambios Gear

    SRAM Eagle 90, T-TYPE, 12s

  • Bielas

    FSA CK-220/IF Wider MTB Alloy Cranks, 170mm

  • Cadena

    SRAM EAGLE 70 T-TYPE, 120 Links

  • Cassette

    CS XS1275 Eagle, T-TYPE, 10-52T

  • Freno

    SRAM G2 R, 4 Piston

  • Motor

    POLINI MX+ Tunning BR HYBRID Engine Control Unit , Shft Control Unit, Nominal power 250W - 90Nm, Peak power 600W, Q Factor 144mm

  • Batería

    PORTAPOWER 720Wh, Removable

  • Display

    POLINI Color display TFT 3" High-contrast LCD, APP 3 Engine Maps TOURING - DYNAMIC - RACE, 10 features, USB port, Bluetooth comunication, ANT+ comunication, MTB handlebar support

  • Cargador

    Porta Power charger, 230V 3A

  • *Nos reservamos el derecho a modificar la información y los componentes de los productos que aparecen en esta web sin previo aviso, incluido el equipamiento, las especificaciones, modelos, colores y materiales.

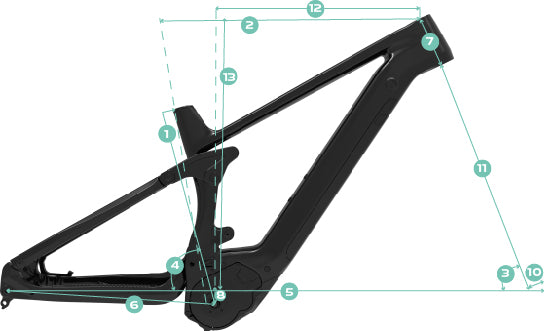

Geometría

frames/26.01.09/GEOMETRÍA 25 - MAKO GT.jpg

1

Tubo de sillín

410 mm

2

Tubo horizontal

573/573.9 mm

3

Ángulo frontal

65.2/64.8°

4

Ángulo del tubo de sillín

77.9/77.4°

5

Distancia entre ejes

1220/1220.7 mm

6

Vaina

454/456 mm

7

Tubo frontal

110 mm

8

Caída eje pedalier

27/33 mm

9

Trail

126.2/129.2 mm

10

Avance horquilla

44 mm

11

Longitud horquilla

561 mm

12

Alcance del cuadro

440/435 mm

13

Altura del cuadro

634/637.6 mm

1

Tubo de sillín

440 mm

2

Tubo horizontal

602/604 mm

3

Ángulo frontal

65.2/64.8°

4

Ángulo del tubo de sillín

77.6/77.2°

5

Distancia entre ejes

1252/1252.9 mm

6

Vaina

454/456 mm

7

Tubo frontal

115 mm

8

Caída eje pedalier

27/33 mm

9

Trail

126.2/129.2 mm

10

Avance horquilla

44 mm

11

Longitud horquilla

561 mm

12

Alcance del cuadro

470/465 mm

13

Altura del cuadro

639/642.2 mm

1

Tubo de sillín

440 mm

2

Tubo horizontal

635/636.6 mm

3

Ángulo frontal

65.2/64.8°

4

Ángulo del tubo de sillín

77.3/76.9°

5

Distancia entre ejes

1284/1285.1 mm

6

Vaina

454/456 mm

7

Tubo frontal

120 mm

8

Caída eje pedalier

27/33 mm

9

Trail

126.2/129.2 mm

10

Avance horquilla

44 mm

11

Longitud horquilla

561 mm

12

Alcance del cuadro

500/495 mm

13

Altura del cuadro

643/646.7 mm

Tecnologías

berria-production/technologies/ics2/ics2.svg
berria-production/technologies/ics2/ics2.svg

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg
berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.

berria-production/technologies/3fc5e540-4886-4ecb-8acd-1afd0eb1898d/MACH-R_Nanotech_d9b9a3cf-c9d7-47f5-8f3e-1bcf23d98b25.svg
berria-production/technologies/3fc5e540-4886-4ecb-8acd-1afd0eb1898d/MACH-R_Nanotech_d9b9a3cf-c9d7-47f5-8f3e-1bcf23d98b25.svg

To deal with the additional forces and high-frequency vibrations that a motor and battery system exert on a carbon frameset, we use MACH-R Nanotech resin. This special resin bonds the Toray fibres of HM2X carbon together, providing the superior mechanical strength required for an electric motorised frame, improving frame strength, resilience and long-term lifespan.

berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg
berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg

HM2X carbon is engineered using T700 and T800 Toray intermediate-modulus fibres. Used strategically across key frame areas, this dual blend of carbon material is laid up to produce an optimal combination of stiffness while also prioritising comfort.

berria-production/technologies/monocoque/monocoque.svg
berria-production/technologies/monocoque/monocoque.svg

Monocoque technology makes the front triangle in a single piece using a specific curing protocol and internal mold sliders made of different special grade steel. This technology is used to achieve frames where strength, lightness and rigidity prevail.

Talla: S / Color: DARK GREY-Collection

6.999,00€
