MISTRAL PRO+ APEX XPLR AXS

Name: MISTRAL PRO+ APEX XPLR AXS
Brand: Berria Bikes
SKU: PT26.31.04.S1.XS
Price: 6499.0 EUR
Availability: InStock

eBIKES / Route

MISTRAL PRO+ APEX XPLR AXS

eBIKES / Route

Couleur

Choisissez votre couleur: CHALK GREY-Collection

Personnalisé

Taille

Choisissez votre taille

XS 155-165 cm

S 165-175 cm

M 175-185 cm

L 185-192 cm

XL >192 cm

*Les composants illustrés peuvent ne pas correspondre à l'image de ce modèle spécifique.

Afficher tous les détails

Spécifications

Composants

Fourche

Allroad EVO 2, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered , Flat Mount Standard max. 160mm disc , 700x50c maximum tyre, Flip-chip adust 45-51mm fork rake, 395mm axle to crown, Thru axle 12x100mm
Matériau

Full carbon fiber HM2X
Cintre

Avanforce 3 Gravel, Alloy 6061, Ø31,8, width: 400, 420, 440mm
Tige de selle

Belador 6 SP, UD Carbon, Offset: 0, 20mm offset, ISP technology
Selle

Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width: 140 mm
Patte de dérailleur

Universal Derailleur Hanger
Roues

Vision Trimax 30 AGX, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock
Dérailleur avant

SRAM APEX AXS D1, Shift-Brake Electronic System
Dérailleur arrière

SRAM APEX XPLR AXS D1, Electronic Shift System, 12s
Manettes

SRAM APEX XPLR AXS D1, 12s, Electronic Shift System
Pédalier

FSA CK-220/IS/SX Bosch, Alloy Cranks, 170mm
Chaîne

SRAM APEX D1, 118 Links
Cassette

CS XPLR XG1251, 10-44T
Frein

SRAM APEX AXS D1, Hydraulic Shift-Brake System
Moteur

BOSCH Performance Line SX Smart System, 600W, 55Nm
Batterie

BOSCH Compact Tube 400Wh Vertical Mount Assembly, Integrated and Slidable
Afficheur

BOSCH System Controller, Led Colour, App E-Bike Flow
Chargeur

Bosch Charger 230V 4A, EU/UK/US Plug Supplied
*Nous nous réservons le droit de modifier les informations et les composants des produits qui apparaissent sur ce site Web sans préavis, y compris les équipements, les spécifications, les modèles, les couleurs et les matériaux.

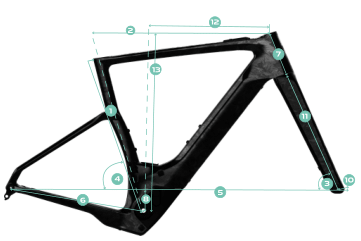

Géométrie

berria-production/frames/26.01.12/GEOMETRIA 26 - MISTRAL CARBON-1.png

XS 155-165 cm

S 165-175 cm

M 175-185 cm

L 185-192 cm

XL >192 cm

Tube de selle

460 mm

Tube horizontal

525 mm

Angle avant

70°

Angle du tube de selle

75.1°

Empattement

1022/1028 mm

Cosse

425 mm

Tube avant

108 mm

Patte de fixation du pédalier

75 mm

Trail

83/77 mm

Avance de la fourche

45/51 mm

Longueur de la fourche

395 mm

Reach

374 mm

Stack

535 mm

Tube de selle

484 mm

Tube horizontal

540 mm

Angle avant

70.5°

Angle du tube de selle

74.8°

Empattement

1032/1038 mm

Cosse

425 mm

Tube avant

123 mm

Patte de fixation du pédalier

73 mm

Trail

78/72 mm

Avance de la fourche

45/51 mm

Longueur de la fourche

395 mm

Reach

388 mm

Stack

550 mm

Tube de selle

508 mm

Tube horizontal

555 mm

Angle avant

71°

Angle du tube de selle

74.5°

Empattement

1040/1046 mm

Cosse

425 mm

Tube avant

140 mm

Patte de fixation du pédalier

73 mm

Trail

75/69 mm

Avance de la fourche

45/51 mm

Longueur de la fourche

395 mm

Reach

398 mm

Stack

565 mm

Tube de selle

532 mm

Tube horizontal

575 mm

Angle avant

71.5°

Angle du tube de selle

74.2°

Empattement

1053/1059 mm

Cosse

425 mm

Tube avant

156 mm

Patte de fixation du pédalier

73 mm

Trail

72/66 mm

Avance de la fourche

45/51 mm

Longueur de la fourche

395 mm

Reach

407 mm

Stack

587 mm

Tube de selle

556 mm

Tube horizontal

595 mm

Angle avant

72°

Angle du tube de selle

73.9°

Empattement

1065/1071 mm

Cosse

425 mm

Tube avant

174 mm

Patte de fixation du pédalier

73 mm

Trail

68/62 mm

Avance de la fourche

45/51 mm

Longueur de la fourche

395 mm

Reach

418 mm

Stack

605 mm

	XS	S	M	L	XL
	155-165 cm	165-175 cm	175-185 cm	185-192 cm	>192 cm
1 Tube de selle	460 mm	484 mm	508 mm	532 mm	556 mm
2 Tube horizontal	525 mm	540 mm	555 mm	575 mm	595 mm
3 Angle avant	70°	70.5°	71°	71.5°	72°
4 Angle du tube de selle	75.1°	74.8°	74.5°	74.2°	73.9°
5 Empattement	1022/1028 mm	1032/1038 mm	1040/1046 mm	1053/1059 mm	1065/1071 mm
6 Cosse	425 mm	425 mm	425 mm	425 mm	425 mm
7 Tube avant	108 mm	123 mm	140 mm	156 mm	174 mm
8 Patte de fixation du pédalier	75 mm	73 mm	73 mm	73 mm	73 mm
9 Trail	83/77 mm	78/72 mm	75/69 mm	72/66 mm	68/62 mm
10 Avance de la fourche	45/51 mm	45/51 mm	45/51 mm	45/51 mm	45/51 mm
11 Longueur de la fourche	395 mm	395 mm	395 mm	395 mm	395 mm
12 Reach	374 mm	388 mm	398 mm	407 mm	418 mm
13 Stack	535 mm	550 mm	565 mm	587 mm	605 mm

Technologies

The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.

berria-production/technologies/7a3bf22c-f97a-4a3a-84ef-29ca92aee3b9/SOFTEX-1.png

The SOFTEX suspension system opens a new category between a Hardtail and a Full suspension bike. The first component of the system is TIBIA, a compliant carbon seat post that absorbs the small bumps across the road acting as a damper. On the other hand we have the Active Seat Stay (ASS), it is a mechanism based on sectioned shaped Seat Stays and Chain Stays with integrated bearings that together with an engineered supple Lay up helps the rider to go through rough terrain faster. All the elements mixed together will extract a total vertical travel of 28mm giving an extended comfort and higher absorption compared to a regular Hardtail bike.

technologies/af0c2029-6a8c-49a3-bf2c-e056274139ff/DINAMIC+-1.png

SWITCHER, the engineering concept that brings two different bicycle behaviours in one frame. RACING+: . Ideal for long stages, fast fire roads and racing (51mm offset). DYNAMIC: Ideal for the off-road adventures, stable and direct (45mm offset).

berria-production/technologies/7d17f861-c924-4d10-b18c-2f2d6b0f964e/O2HS_OVERSIZED_HEADSET_ed8e4857-fec2-4f6c-bd14-9f66e79377bf.svg

The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.

berria-production/technologies/3712e119-47d0-4594-8353-f105b6a59968/EPS_a41ae669-c67f-40b7-a0b6-63982dedd41f.svg

EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.

berria-production/technologies/3fc5e540-4886-4ecb-8acd-1afd0eb1898d/MACH-R_Nanotech_d9b9a3cf-c9d7-47f5-8f3e-1bcf23d98b25.svg

To deal with the additional forces and high-frequency vibrations that a motor and battery system exert on a carbon frameset, we use MACH-R Nanotech resin. This special resin bonds the Toray fibres of HM2X carbon together, providing the superior mechanical strength required for an electric motorised frame, improving frame strength, resilience and long-term lifespan.

berria-production/technologies/a59da7ea-81e7-46c0-be98-cbfaaa8f1487/hm2x.svg

HM2X carbon is engineered using T700 and T800 Toray intermediate-modulus fibres. Used strategically across key frame areas, this dual blend of carbon material is laid up to produce an optimal combination of stiffness while also prioritising comfort.

berria-production/technologies/19a978af-e4f9-4718-a64a-26220a0dfbdc/TRIPLE_MONOCOQUE_db9eee60-0a5a-4120-bd39-5b9960d44976.svg

The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.
